Shop SCHNEIDER ELECTRIC

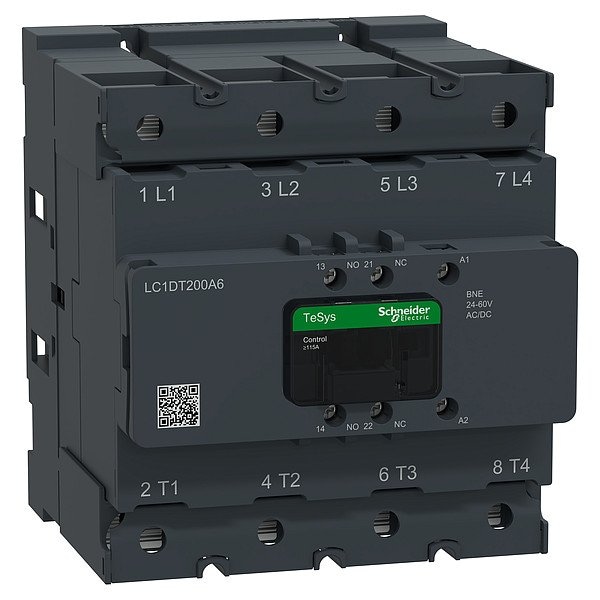

CTR Deca 200A 4P 24-60V ACDC Lug

  • Mfr # LC1DT200A6BNE

  • Zoro # G422842049

product price:
$
1,015.99
/ea
Free Shipping & Returns

Key Features

Number of Auxillary Contacts
2
Series
Tesys Deca
Frequency
50/60 Hz
Number of Normally Open Main Contacts
4
Includes Auxiliary Contacts
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC1DT200A6BNE
Zoro #
G422842049
UPC #
-
Country of Origin
Multiple

Dimensions

Overall Depth
6.1 in
Overall Height
5.98 in
Overall Width
5.28 in

Details

Number of Auxillary Contacts
2
Series
Tesys Deca
Item
IEC Contactor
Frequency
50/60 Hz
Number of Normally Open Main Contacts
4
Includes Auxiliary Contacts
Yes
Mounting Style
Plate
Maximum Operating Temperature
140 Degrees F
Auxiliary Contact Form
1NO/1NC
Phase
Single
Resistance Properties
Fire Resistant, Insulation Resistant, Shock Resistant, Vibration Resistant
Terminal Connection Type
Box Lugs
Full Load Current - Resistive
Not Rated
NEMA Enclosure Rating
No Enclosure
Number of Poles
4
Mechanical Operating Durability
8,000,000
Reversing Capability
Non-Reversing
Maximum Voltage Rating
440V
Coil Voltage
24-60V AC/DC
Standards
CB Scheme, CCC, CE, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, cULus, EN/IEC 60947-4-1, EN/IEC 60947-5-1, EU-RO-MR by DNV-GL, GB/T 14048.4, GB/T 14048.5, JIS C8201-4-1, JIS C8201-5-1, UKCA, UL 60947-4-1, UL 60947-5-1
Contactor Style
IEC
Embedded Surge Suppressor
Yes
Full Load Current - Inductive
200 A
Electrical Operating Durability
380,000
Minimum Operating Temperature
-40 Degrees F

Description

IEC Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24-60V AC/DC, Number of Poles 4, Full Load Current - Inductive 200 A, Full Load Current - Resistive Not Rated, Reversing Capability Non-Reversing, Overall Height 5.98 in, Overall Width 5.28 in, Terminal Connection Type Box Lugs, Frame Size Not Applicable, Mounting Style Plate, Series Tesys Deca, Number of Auxillary Contacts 2, Contactor Style IEC, Phase Single
