Shop SCHNEIDER ELECTRIC

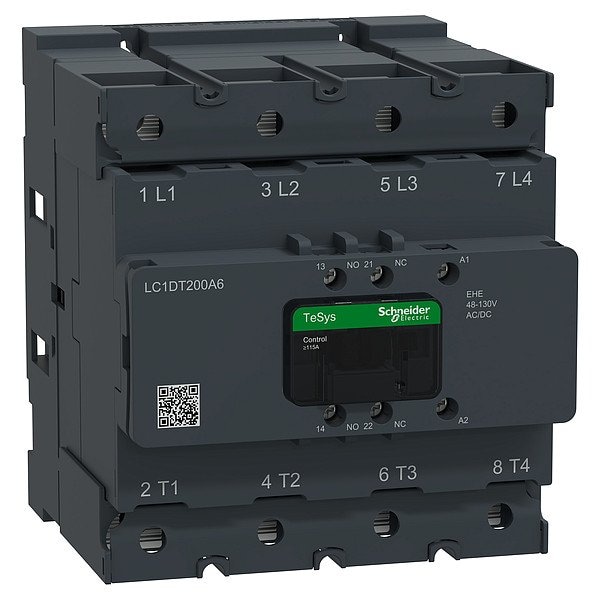

CTR Deca 200A 4P 48-130V ACDC Lug

  • Mfr # LC1DT200A6EHE

  • Zoro # G022841954

product price:
$
1,015.99
/ea
Free Shipping & Returns

Key Features

Reversing Capability
Non-Reversing
Minimum Operating Temperature
-40 Degrees F
Overall Width
5.28 in
Phase
Single
Frequency
50/60 Hz
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC1DT200A6EHE
Zoro #
G022841954
UPC #
-
Country of Origin
Multiple

Dimensions

Overall Width
5.28 in
Overall Depth
6.1 in
Overall Height
5.98 in

Details

Reversing Capability
Non-Reversing
Terminal Connection Type
Box Lugs
Minimum Operating Temperature
-40 Degrees F
Phase
Single
Frequency
50/60 Hz
Series
Tesys Deca
Coil Voltage
48-130V AC/DC
Full Load Current - Inductive
200 A
Full Load Current - Resistive
Not Rated
Item
IEC Contactor
Number of Normally Open Main Contacts
4
Mounting Style
Plate
Number of Auxillary Contacts
2
Contactor Style
IEC
Embedded Surge Suppressor
Yes
Maximum Voltage Rating
440V
Resistance Properties
Fire Resistant, Insulation Resistant, Shock Resistant, Vibration Resistant
Maximum Operating Temperature
140 Degrees F
Includes Auxiliary Contacts
Yes
NEMA Enclosure Rating
No Enclosure
Electrical Operating Durability
380,000
Mechanical Operating Durability
8,000,000
Standards
CB Scheme, CCC, CE, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, cULus, EN/IEC 60947-4-1, EN/IEC 60947-5-1, EU-RO-MR by DNV-GL, GB/T 14048.4, GB/T 14048.5, JIS C8201-4-1, JIS C8201-5-1, UKCA, UL 60947-4-1, UL 60947-5-1
Number of Poles
4
Auxiliary Contact Form
1NO/1NC

Description

IEC Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 48-130V AC/DC, Number of Poles 4, Full Load Current - Inductive 200 A, Full Load Current - Resistive Not Rated, Reversing Capability Non-Reversing, Overall Height 5.98 in, Overall Width 5.28 in, Terminal Connection Type Box Lugs, Frame Size Not Applicable, Mounting Style Plate, Series Tesys Deca, Number of Auxillary Contacts 2, Contactor Style IEC, Phase Single
