  13. Current Sensing Relay, 0.5to5A, 24to240VAC, Mounting: Din Rail

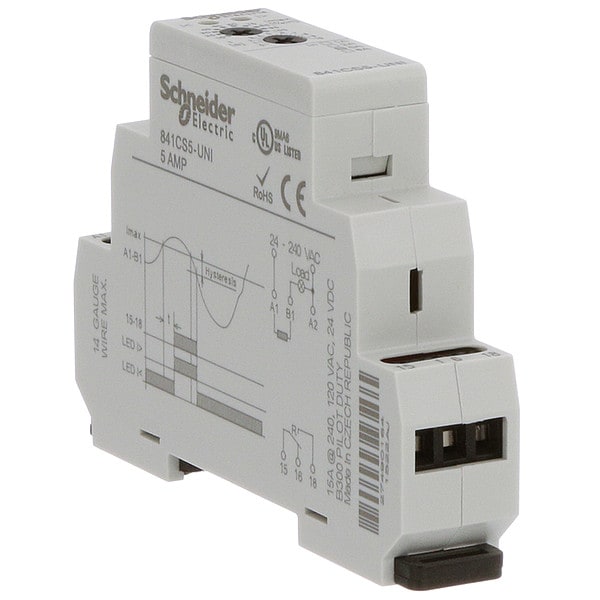

Schneider Electric Current Sensing Relay, 0.5to5A, 24to240VAC, Mounting: Din Rail 841CS5-UNI - main

Current Sensing Relay, 0.5to5A, 24to240VAC, Mounting: Din Rail

  • Mfr # 841CS5-UNI

  • Zoro # G0755151

product price: $97.65
/ea
Free Shipping & Returns

Key Features

Input or Control Voltage
24 to 240V AC
AC Contact Rating - Relay
15A @ 240V
DC Contact Rating - Relay
15A @ 24V
Mounting - Relay
DIN Rail
Contact Form - Relay
SPDT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
841CS5-UNI
Zoro #
G0755151
UPC #
-
Country of Origin
Czechia

Dimensions

Body Width - Relay
3.5 in
Body Depth - Relay
0.7 in
Overall Height - Relay
2.6 in
Body Height - Relay
2.6 in
Width
0.69 in (17.6 mm)
Depth
2.52 in (64 mm)
Overall Depth
2.52 in
Body Width
0.69 in
Body Depth
3.54 in
Body Height
2.51 in
Height
3.54 in (90 mm)

Details

Item
Adjustable Current Sensing Relay
Input or Control Voltage
24 to 240V AC
AC Contact Rating - Relay
15A @ 240V
DC Contact Rating - Relay
15A @ 24V
Mounting - Relay
DIN Rail
Contact Form - Relay
SPDT
Sensing Amp Range
0.50 to 5.00A
Trip Point
0.5 to 5 A
Trip Delay
0.1 to 10 sec
Core Type - Relay
Internal
Status Indicator
LED Indicator
Electrical Connection
Terminal Strip
Contact Form
SPDT
Input Voltage
24 to 240V AC
Contact Amps
15.00A
Core Type
Internal
Max. Inrush Current
6.3 A
Sensor Opening
Internal
Type of Output
Relay
Item - Relay
Current Sensing Relay
Mounting
Din Rail
Maximum Operating Temperature
131 Degrees F
Monitored Parameters
Overcurrent
Weight
2.13 lb
Maximum Switching Capacity
1.5 VA
Number of Pins
6
Trip Point Type
Adjustable
Mechanical Operating Durability
30,000,000
Wire Gauge
14 AWG
Adjustment Method
Rotary Knob
Maximum Switching Voltage
12V AC
Power Consumption
1.5 VA
Standards
EU RoHS, Reach Regulation, WEEE
Contact Rating (AC)
15 A @ 240V
For Use With
Sensors
Mounting Style
DIN Rail
Current Rating
15 A
Dielectric Strength
4,000V
Minimum Operating Temperature
-4 Degrees F
IP Rating
IP20
Frequency
50/60 Hz
Contact Rating (DC)
15 A @ 24V
Contact Material
Silver Nickel
Minimum Switching Current
100 mA
Horsepower @ 240V AC
1 hp
Electrical Operating Durability
100,000
Electrical Durability
30000 cycles
Product Type
Relay
Sensory Type
Current sensor
Time Delay Type
Adjustable
Mechanical Durability
15000000 cycles
Rated Supply Voltage
24...240 V AC 50...60 Hz
Repeat Accuracy
+/- 1 %
Breaking Capacity
4000 VA AC-1
Ambient Air Temperature for Operation
-4 to 131°F (-20 to 55°C)
Motor Power HP
0.5 hp 120 V AC; 1 hp 240 V
Product Range
Legacy
Product Certifications
UL; CE; WEEE; RoHS
Ambient Air Temperature for Storage
-22 to 158°F (-30 to 70°C)
Power consumption in VA
1.5 VA 24...240 V
Temperature Drift
< 0.1 %/°C
Control Type
With adjustment knob front
Mounting Support
35 mm DIN rail conforming to EN 60715
Tripping Threshold
0.5...5 A
Time Delay Range
0...10 s
AWG Gauge
AWG 14
IP Degree of Protection
IP20 IEC 60529 terminals); IP40 IEC 60529 front panel)
Local Signalling
1 LED red; 1 LED green
Contacts Material
AgNi
Tightening Torque
7.08 lbf.in (0.8 N.m)
Rated Operational Current
15 A at 240 V AC-1

Description

Adjustable Current Sensing Relay, Contact Form SPDT, Contact Rating (AC) 15 A @ 240V, Contact Rating (DC) 15 A @ 24V, Core Type Internal, Current Rating 15 A, Input Voltage 24 to 240V AC, Monitored Parameters Overcurrent, Mounting Style DIN Rail, Number of Pins 6, Trip Point 0.5 to 5 A, Trip Point Type Adjustable, Adjustment Method Rotary Knob, Electrical Connection Terminal Strip, Status Indicator LED Indicator, Wire Gauge 14 AWG, Body Depth 3.54 in, Body Height 2.51 in, Body Width 0.69 in
