  15. Disconnect Switch, 3P, Three Phase, Indoor, Rotary Handle, PBT

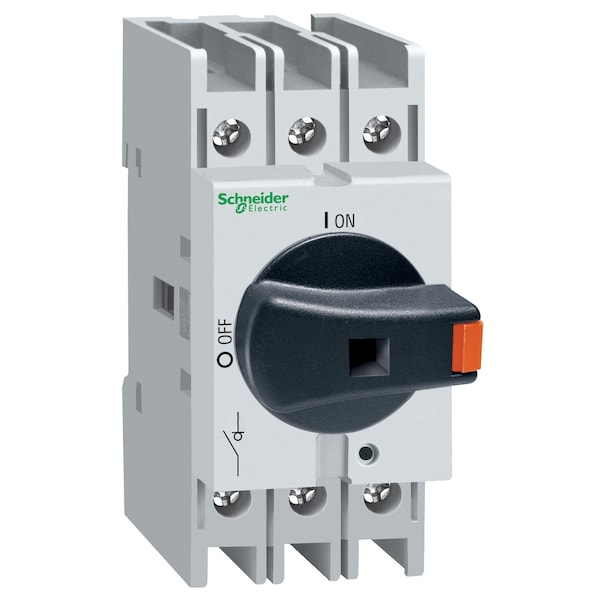

Schneider Electric Disconnect Switch, 3P, Three Phase, Indoor, Rotary Handle, PBT VLS3P040R1 - main

Disconnect Switch, 3P, Three Phase, Indoor, Rotary Handle, PBT

  • Mfr # VLS3P040R1

  • Zoro # G0859002

product price: $52.15
/ea

Key Features

Contact Form
3P
Current Rating
40 A
Phase
Three
Environment
Indoor
HP
24.8 HP @ 400 V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VLS3P040R1
Zoro #
G0859002
UPC #
-
Country of Origin
Italy

Dimensions

Depth
3.07 in
Height
2.95 in
Width
1.42 in

Details

Item
Disconnect Switch
Contact Form
3P
Current Rating
40 A
Phase
Three
Environment
Indoor
HP
24.8 HP @ 400 V
Voltage
690 V
Handle Color
Gray
Handle Type
Rotary Handle
Housing Material
PBT
Standards
CSA C22.2 No 14, IEC 60947-3, UL 508
Amps
25 A, 40 A
Number of Poles
3
Use
Body Switch Disconnector
IP Rating
20
Includes
Rotary Handle
Duty
Intermittent
Color
Gray
Network Type
AC
Connections - Terminals
power circuit screw clamp terminals 10-10 mm² solid || power circuit screw clamp terminals 16-16 mm² flexible - without cable end
Suitability For Isolation
yes
Device Short Name
VLS3P
Rated Conditional Short-Circuit Current
50 kA 400 V 40 A gG
Intermittent Duty Class
class 120 - 60 %
Fire Resistance
960°C IEC 60695-2-11
Fixing Mode
by clips back
Mechanical Robustness
vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6 || shocks 11 ms Ea 15 gn) IEC 60068-2-27
Performance Level
high performance
Mechanical Durability
100000 cycles
Electrical Durability
100000 cycles AC-21A
Marking
0 - 1
Product Or Component Type
switch body
Contacts Type And Composition
3 NO
Poles Description
3P
Product Name
TeSys VARIO LS
Ip Degree Of Protection
IP20 conforming to IEC 60529
Rated Operational Power In W
18.5 kW 400 V AC-23A) || 18.5 kW 500 V AC-23A) || 22 kW 690 V AC-23A)
Mounting Support
back DIN rail
Compatibility Code
VLS
Range
TeSys
Device Composition
handle || switch
Tightening Torque
power circuit 1.8-2 N.m screw clamp terminals
Rotary Handle Mounting Style
direct
Making Capacity
60 A 690 V AC-21A || 120 A 690 V AC-22A || 400 A 690 V AC-23A
Breaking Capacity
60 A 690 V AC-21A) || 120 A 690 V AC-22A) || 320 A 690 V AC-23A)
Network Frequency
50/60 Hz
Rotary Handle Padlocking
1 padlock 4-4 mm
Ambient Air Temperature For Operation
-25-55°C
Product Certifications
cULus || GL

Description

Disconnect Switch, Use Body Switch Disconnector, Intermittent Duty, 25 A, 40 A Amps, Voltage 690 V AC, 24.8 HP @ 400V AC, 24.8 HP @ 500V AC, 29.5 HP @ 690V AC HP, 20 IP Rating, Number of Poles 3, Contact Form 3 NO, Height 2.95 in, Width 1.42 in, Depth 3.07 in, Standards CSA C22.2 No 14, IEC 60947-3, UL 508
