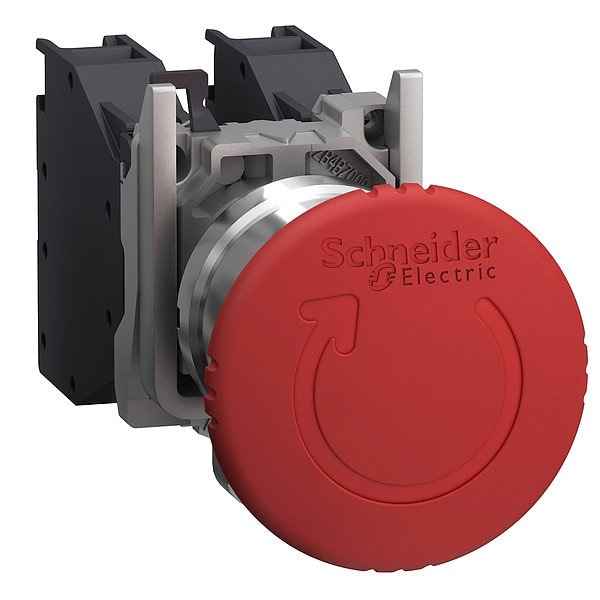

Emergency Stop Push Button
Mfr # XB4BS8444GEX
Zoro # G623553317
product price:Â
$
181.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions
Key Features
Head Color
Red
NEMA Enclosure Rating
No Enclosure
Operating Temperature - Maximum
149 Degrees F
IP Rating
IP65
Overall Depth
4.7 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- XB4BS8444GEX
- Zoro #
- G623553317
- UPC #
- -
- Country of Origin
- France
Dimensions
- Overall Depth
- 4.7 in
- Manufacturer Warranty Length
- 18 mo
- Panel Cutout Diameter
- 22 mm
- Overall Height
- 1.18 in
- Mushroom Head Diameter
- 40 mm
- Overall Width
- 1.81 in
Details
- Item
- Tower Lights
- Head Color
- Red
- NEMA Enclosure Rating
- No Enclosure
- Operating Temperature - Maximum
- 149 Degrees F
- IP Rating
- IP65
- Number of Indicator Lights
- 0
- Series
- Harmony XB4 ATEX D
- Contact Form
- 2NC
- Lamp Type
- No Lamp Module Included
- Head Material
- Metal
- Product Type
- Emergency Stop Push Buttons
- Standards
- ANSI/ISA 12.12.01, CSA C22.2 No 213, EN/IEC 60079-1:2009, IEC 60079-0:2009, IEC 60079-31:2009, IEC 60079-7:2009, UL 60079-0, UL 60079-1, UL 60079-31
- Push Button Style
- Mushroom Head
- Number of Operators
- 1
- Features
- Specially Designed For Applications In The Oil And Gas Industry, As Well As The Food And Beverage, Car Gas Stations, And More
- Terminal Connection
- Screw Clamp
- Operating Temperature - Minimum
- -4 Degrees F
- Operator Illumination
- Non-Illuminated
Description
Tower Lights, Head Material Metal, Contact Form 2NC, Number of Operators 1, IP Rating IP65, Standards ANSI/ISA 12.12.01, CSA C22.2 No 213, EN/IEC 60079-1:2009, IEC 60079-0:2009, IEC 60079-31:2009, IEC 60079-7:2009, UL 60079-0, UL 60079-1, UL 60079-31, Terminal Connection Screw Clamp, Features Specially Designed For Applications In The Oil And Gas Industry, As Well As The Food And Beverage, Car Gas Stations, And More
