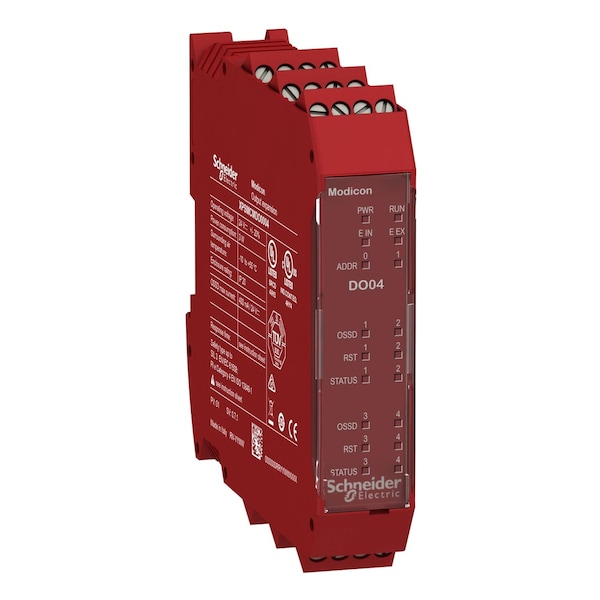

Expansion modules, Modicon MCM, 4 digital output pairs, screw

Expansion modules, Modicon MCM, 4 digital output pairs, screw

Mfr # XPSMCMDO0004
Zoro # G600422919

$502.66

Free Shipping & Returns

Key Features

Standards

EN/IEC 61800-5-1 || EN/ISO 13849-1 || EN/IEC 61508 || IEC 62061

Height

99 mm

Width

114.5 mm

Depth

22.5 mm

Connections - Terminals

2 captive screw clamp terminals, removable terminal block || 1 captive screw clamp terminals, removable terminal block

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

XPSMCMDO0004

Zoro #

G600422919

UPC #

Country of Origin

Italy

Dimensions

Height

99 mm

Width

114.5 mm

Depth

22.5 mm

Details

Item

Pairs Output Modules Expansion Digital 4

Standards

EN/IEC 61800-5-1 || EN/ISO 13849-1 || EN/IEC 61508 || IEC 62061

Connections - Terminals

2 captive screw clamp terminals, removable terminal block || 1 captive screw clamp terminals, removable terminal block

Ambient Air Temperature For Operation

-10-55°C

Pollution Degree

Ip Degree Of Protection

IP20 enclosure)

Vibration Resistance

+/-0.35 mm 10-55 Hz)EN/IEC 61496-1

Discrete Output Voltage

24 V DC

Integrated Connection Type

backplane expansion bus

Number Of Terminal Blocks

Electromagnetic Compatibility

electrostatic discharge immunity test 6 kV on contact) EN/IEC 61000-4-2 || electrostatic discharge immunity test 20 kV on air) EN/IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80...1000 MHz) EN/IEC 61000-4-3 || susceptibility to electromagnetic fields 30 V/m 1.4 GHz...2 GHz) EN/IEC 61000-4-3

Power Consumption In W

3 W

Shock Resistance

10 gn 16 ms) 1000 shocks on each axis EN/IEC 61496-1

Cable Cross Section

0.2-1.5 mm² - AWG 24...AWG 16 flexible without cable end || 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end || 0.25-1 mm² - AWG 23...AWG 18 flexible with cable end, without bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, without bezel || 0.5-1.5 mm² - AWG 20...AWG 16 flexible with cable end, with double bezel || 0.2-1 mm² - AWG 24...AWG 18 solid without cable end || 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end

Product Certifications

TUV || RCM || cULus

Electrical Connection

screw terminal

Ambient Air Temperature For Storage

-20-85°C

Output Load

60 Ohm

Number Of Outputs

4 safety outputs OSSD contactor/drive connection || 4 configurable diagnostic connection

Safety Level

can reach category 4 EN/ISO 13849-1 || can reach PL = e EN/ISO 13849-1 || can reach SIL 3 EN/IEC 61508 || SILCL 3 IEC 62061

Relative Humidity

10-95 %

Discrete Input Type

isolated

Quality Labels

Device Short Name

XPSMCM

Local Signalling

1 LED green PWR power ON || 1 LED green RUN RUN (status) || 1 LED red E IN internal error || 1 LED red E EX external error || 2 LEDs orange ADDR node address || 4 LEDs green/red OUT output status || 4 LEDs yellow RST restart signal || 4 LEDs yellow STATUS output status

Discrete Input Voltage

24 V DC

Power Dissipation In W

3 W

Function Of Module

monitoring safety actuators discrete output

Mounting Support

omega 35 mm DIN rail EN 50022

Load Type

resistive load

Product Or Component Type

safe output expansion module

[Uimp] Rated Impulse Withstand Voltage

4 kV EN/IEC 61800-5-1

Insulation

250 V AC between power supply and housing EN/IEC 61800-5-1

Discrete Output Current

400 mA || 100 mA

Overvoltage Category

[Us] Rated Supply Voltage

24 V - 20...20 % DC

Number Of Inputs

4 digital external device monitoring

Discrete Output Type

PNP

Service Life

20 year(s)

Range of Product

Preventa Safety automation

Pvc Free

Yes

Description

Pairs Output Modules Expansion Digital 4
