AC Contact Rating - Relay
1 A AC-15, 3 A AC-1, 3 A AC-15, 5 A AC-1
DC Contact Rating - Relay
5 A DC-1; 3 A DC-13; 3 A DC-1; 1 A DC-13
Mounting - Relay
DIN Rail
Input Power Consumption (Burden)
2 W
Delay Time - Relay
Sync time between inputs: 0.5s 2s 4 s
For Use With
Emergency Stop, Guard Switch, Magnetic Switch, PNP Sensors, Proximity Safety Switch, RFID Safety Switch, Safety Light Curtain, Two Hand Control Station or Enabling Switch
Standards
CCC, cULus Listed, EAC, IEC 60947-5-1, IEC 61508-1/2/3, IEC 62061, ISO 13849-1, TUV Certified
IP Rating
IP20; IP40; IP54
Environmental Protection
Dust & Splash Resistant
Application
Emergency Stop
Electrical Connection - Relay
Screw Terminal, Terminal Block Removable
Delay Time
0.5 sec, 2 sec, 4 sec
Safety Reliability Data
Dcavg Greater Than= 99% Conforming to ISO 13849-1, HFT = 1 Conforming to IEC 61508-1, HFT = 1 Conforming to IEC 62061, MTTFd Greater Than 30 years Conforming to ISO 13849-1, PFHd = 1.13E-09 Conforming to IEC 61508-1, PFHd = 1.13E-09 Conforming to IEC 62061, PFHd = 1.13E-09 Conforming to ISO 13849-1, SFF Greater Than 99% Conforming to IEC 61508-1, SFF Greater Than 99% Conforming to IEC 62061, Type = B Conforming to IEC 61508-1
Maximum Operating Temperature
185 Degrees F
Contact Rating (AC)
1 A @ 15V (NC), 3 A @ 1V (NC), 3 A @ 15V (NO), 5 A @ 1V (NO)
Number of Input Channels
2
Electrical Connection
Screw Terminal, Terminal Block Removable
Minimum Operating Temperature
-13 Degrees F
Contact Rating (DC)
1 A @ 13V (NC), 3 A @ 1V (NC), 3 A @ 13V (NO), 5 A @ 1V (NO)
[Ith] Conventional Free Air Thermal Current
8A
Mounting Support
35 mm symmetrical DIN rail
Connections - Terminals
removable screw terminal block, 0.2...2.5 mm² solid or flexible || removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductor || removable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductor || removable screw terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel || removable screw terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel

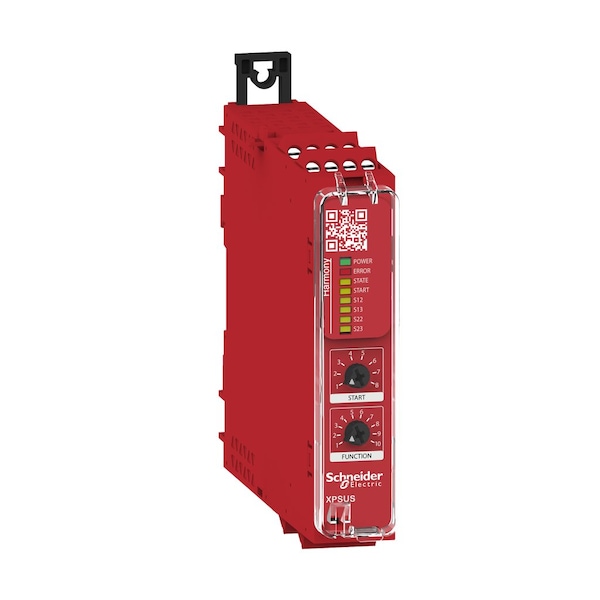

Product Or Component Type
safety module
Input/Output Type
semiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related
[Ui] Rated Insulation Voltage
250 V 2)EN/IEC 60947-1
Power Consumption In Va
5.0 VA 24 V AC 50/60 Hz
Auxiliary Contact Composition
2 NO
Ip Degree Of Protection
IP20 terminals)EN/IEC 60529 || IP40 housing)EN/IEC 60529 || IP54 mounting area)EN/IEC 60529
Minimum Output Voltage
12 V relay output
Local Signalling
for power ON LED (green) || for error LED (red) || for safety output status LED (yellow) || for start input LED (yellow) || for safety input S12 LED (yellow) || for safety input S13 LED (yellow) || for safety input S22 LED (yellow) || for safety input S23 LED (yellow)
Electrical Circuit Type
NC pair || PNP pair || antivalent pair || OSSD pair
Power Consumption In W
2 W 24 V DC
Maximum Response Time On Input Open
20 ms
Safety Module Application
for electrical monitoring of two-hand control stations || monitoring antivalent contacts || for emergency stop, guard and light curtain monitoring || for enabling switch monitoring
Safety Level
can reach PL e/category 4 ISO 13849-1 || can reach SILCL 3 IEC 62061 || can reach SIL 3 IEC 61508
Synchronisation Time Between Inputs
0.5 s || 2 s || 4 s
Maximum Line Resistance
500 Ohm
Ambient Air Temperature For Storage
-25-85°C
Product Certifications
TUV || cULus
Input Protection Type
internal, electronic
Function Of Module
emergency stop button with 2 NC contacts || guard monitoring with 1 or 2 limit switches || monitoring 2 PNP sensors || magnetic switch monitoring || light curtain monitoring || RFID switch || monitoring of electro-sensitive protection equipment (ESPE) || enabling switch monitoring || proximity sensor monitoring || monitoring two-hand control station
Associated Fuse Rating
10 A gG NO relay output circuit IEC 60947-1
Input Compatibility
normally closed circuit ISO 14119 || XC limit switch ISO 14119 || mechanical contact ISO 14119 || normally closed circuit ISO 13850 || antivalent pair ISO 14119 || OSSD pair IEC 61496-1-2 || two-hand control EN 574/ISO 13851-III A || two-hand control EN 574/ISO 13851-III C || 3-wire proximity sensors PNP
[Ie] Rated Operational Current
5 A AC-1 for normally open relay contact || 3 A AC-15 for normally open relay contact || 5 A DC-1 for normally open relay contact || 3 A DC-13 for normally open relay contact || 3 A AC-1 for normally closed relay contact || 1 A AC-15 for normally closed relay contact || 3 A DC-1 for normally closed relay contact || 1 A DC-13 for normally closed relay contact
[Uimp] Rated Impulse Withstand Voltage
4 kV II EN/IEC 60947-1
Relative Humidity
5-95 % non-condensing
Number Of Outputs
3 on/off configurable pulsed output
[Us] Rated Supply Voltage
24 V AC - 15...10 % || 24 V DC - 20...20 %
Type Of Start
automatic/manual/monitored
Minimum Output Current
10 mA relay output
