- Item
- Force
- Input or Control Voltage
- 48V AC to 240V AC, 48V DC to 240V DC
- AC Contact Rating - Relay
- 8 A @ 250 V
- DC Contact Rating - Relay
- Not Available
- Mounting - Relay
- DIN Rail
- Output Switch Configuration - Relay
- (1) NC, (2) NO
- Input Power Consumption (Burden)
- 3 W
- Number of Inputs - Relay
- 2
- Use With - Relay
- All XPS Series Relays, E Stop, Limit Switch, Magnetic switch
- Delay Time - Relay
- No Delay
- Item - Relay
- Safety Relay Extension Module
- Standards
- CCC, cULus Listed, EAC, IEC 60947-5-1, IEC 61508-1/2/3, IEC 62061, ISO 13849-1, TUV Certified
- Power Consumption
- 3 W
- Input Voltage
- 48V AC to 240V AC, 48V DC to 240V DC
- IP Rating
- IP20; IP40; IP54
- For Use With
- Emergency Stop, Guard Switch, Magnetic Switch, NPN Sensors, PNP Sensors, Proximity Safety Switch, RFID Safety Switch, Safety Light Curtain or Sensing Mat/Edges
- Number of Pins - Relay
- 16
- Environmental Protection
- Dust & Splash Resistant
- Electrical Connection - Relay
- Terminal Block Removable
- Minimum Operating Temperature
- -13 Degrees F
- Safety Reliability Data
Dcavg Greater Than= 99% Conforming to ISO 13849-1, HFT = 1 Conforming to IEC 62061, MTTFd Greater Than 30 years Conforming to ISO 13849-1, PFHd = 1.61E-09 Conforming to IEC 61508-1, PFHd = 1.61E-09 Conforming to IEC 62061, PFHd = 1.61E-09 Conforming to ISO 13849-1, SFF Greater Than 99% Conforming to IEC 61508-1, SFF Greater Than 99% Conforming to IEC 62061HFT = 1 Conforming to IEC 61508-1, Type = B Conforming to IEC 61508-1
- Output Switch Configuration
- (1) NC, (2) NO
- Number of Inputs
- 2
- Weight
- 7.05 oz
- Delay Time
- None
- Application
- Emergency Stop
- Maximum Operating Temperature
- 131 Degrees F
- Delay Type
- Fixed
- Frequency
- 50/60 Hz
- Contact Rating (AC)
- 8 A @ 250V
- Number of Pins
- 16
- Electrical Connection
- Screw Terminal, Terminal Block Removable
- Mounting Style
- DIN Rail
- Number Of Outputs
- 3 on/off configurable pulsed output
- Type Of Start
- automatic/manual/monitored
- [Ui] Rated Insulation Voltage
- 250 V 2)EN/IEC 60947-1
- Ip Degree Of Protection
- IP20 terminals)EN/IEC 60529 || IP40 housing)EN/IEC 60529 || IP54 mounting area)EN/IEC 60529
- Input Protection Type
- internal, electronic
- Minimum Output Voltage
- 12 V relay output
- Product Or Component Type
- safety module
- Mounting Support
- 35 mm symmetrical DIN rail
- Product Certifications
- TUV || cULus
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV II EN/IEC 60947-1
- [Ith] Conventional Free Air Thermal Current
- 8A
- Connections - Terminals
removable screw terminal block, 0.2...2.5 mm² solid or flexible || removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductor || removable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductor || removable screw terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel || removable screw terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel
- Function Of Module
emergency stop button with 2 NC contacts || guard monitoring with 1 or 2 limit switches || monitoring 2 PNP sensors || magnetic switch monitoring || light curtain monitoring || RFID switch || monitoring of electro-sensitive protection equipment (ESPE) || sensing mat/edges || proximity sensor monitoring || monitoring 1 PNP + 1 NPN sensor
- Input Compatibility
- normally closed circuit ISO 14119 || XC limit switch ISO 14119 || mechanical contact ISO 14119 || normally closed circuit ISO 13850 || antivalent pair ISO 14119 || OSSD pair IEC 61496-1-2 || 3-wire proximity sensors PNP
- Input/Output Type
- semiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related
- Safety Module Application
- monitoring antivalent contacts || for emergency stop, guard and light curtain monitoring || monitoring of pressure-sensitive 4-wire protective devices
- Auxiliary Contact Composition
- 2 NO + 1 NC
- Ambient Air Temperature For Operation
- -25-55°C
- Associated Fuse Rating
- 10 A gG NO relay output circuit IEC 60947-1
- Power Consumption In W
- 3.0 W 48 V DC
- Maximum Line Resistance
- 500 Ohm
- Minimum Output Current
- 10 mA relay output
- [Ie] Rated Operational Current
5 A AC-1 for normally open relay contact || 3 A AC-15 for normally open relay contact || 5 A DC-1 for normally open relay contact || 3 A DC-13 for normally open relay contact || 3 A AC-1 for normally closed relay contact || 1 A AC-15 for normally closed relay contact || 3 A DC-1 for normally closed relay contact || 1 A DC-13 for normally closed relay contact
- Safety Level
can reach PL e/category 4 for normally open relay contact ISO 13849-1 || can reach SILCL 3 for normally open relay contact IEC 62061 || can reach SIL 3 for normally open relay contact IEC 61508 || can reach PL c/category 1 for normally closed relay contact ISO 13849-1 || can reach SILCL 1 for normally closed relay contact IEC 62061 || can reach SIL 1 for normally closed relay contact IEC 61508
- [Us] Rated Supply Voltage
- 48...240 V AC/DC - 10...10 %
- Relative Humidity
- 5-95 % non-condensing
- Synchronisation Time Between Inputs
- 0.5 s || 2 s || 4 s

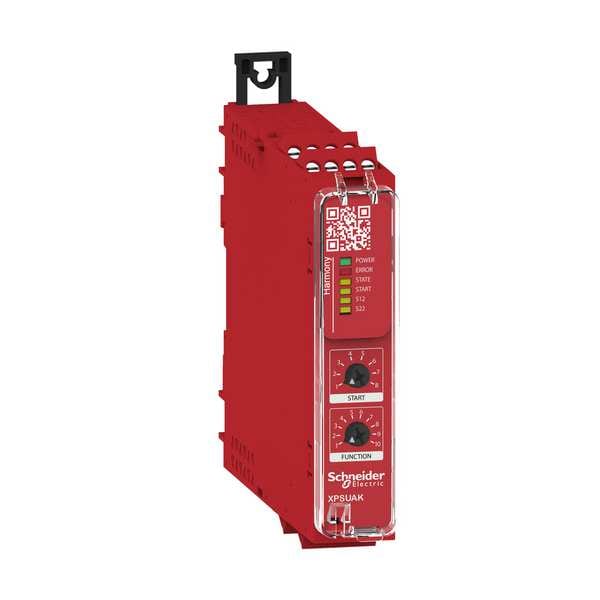

- Safety Module Name
- XPSUAK
- Electrical Circuit Type
- NC pair || PNP pair || antivalent pair || OSSD pair
- Power Consumption In Va
- 6.5 VA 240 V AC 50/60 Hz
