  15. Head for non illuminated push button, Harmony XB4, metal, projecting, red, 22mm, spring return, booted, unmarked

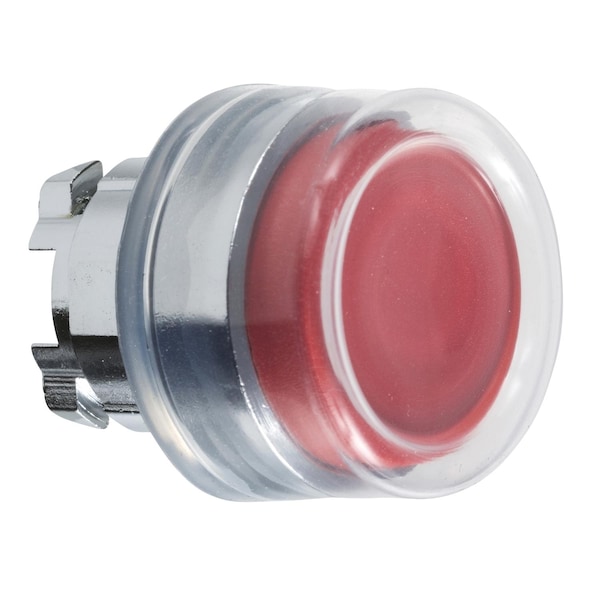

Schneider Electric Head for non illuminated push button, Harmony XB4, metal, projecting, red, 22mm, spring return, booted, unmarked ZB4BP4 - main

Head for non illuminated push button, Harmony XB4, metal, projecting, red, 22mm, spring return, booted, unmarked

  • Mfr # ZB4BP4

  • Zoro # G4063443

product price: $22.35
/ea

Key Features

Standards
UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-5 || JIS C8201-5-1 || CSA C22.2 No 14 || JIS C8201-1
Bezel Material
chromium plated metal
Ambient Air Temperature For Storage
-40-70°C
Cad Overall Height
30 mm
Ip Degree Of Protection
IP66 IEC 60529 || IP67
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BP4
Zoro #
G4063443
UPC #
-
Country of Origin
France

Dimensions

Cad Overall Height
30 mm
Cad Overall Depth
35 mm
Mounting Diameter
22 mm
Cad Overall Width
30 mm

Details

Item
Push button head,metal,projecting,red
Standards
UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-5 || JIS C8201-5-1 || CSA C22.2 No 14 || JIS C8201-1
Bezel Material
chromium plated metal
Ambient Air Temperature For Storage
-40-70°C
Ip Degree Of Protection
IP66 IEC 60529 || IP67
Shape Of Signaling Unit Head
round
Operator Additional Information
clear boot
Device Presentation
basic element
Mechanical Durability
10000000 cycles
Operator Profile
red projecting, unmarked
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Product Or Component Type
head for non-illuminated push-button
Overvoltage Category
class I IEC 60536
Device Short Name
ZB4
Protective Treatment
TH
Ik Degree Of Protection
IK06 IEC 50102
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Product Certifications
BV || GL || UL Listed || CSA || LROS (Lloyds register of shipping) || DNV
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Product Compatibility
not compatible with legend holder
Electrical Composition Code
C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
Head Type
standard
Ambient Air Temperature For Operation
-40-70°C
Type Of Operator
spring return
Range of Product
Harmony XB4
Cap/Operator or Lens Colour
red

Description

Push button head,metal,projecting,red
