- Item

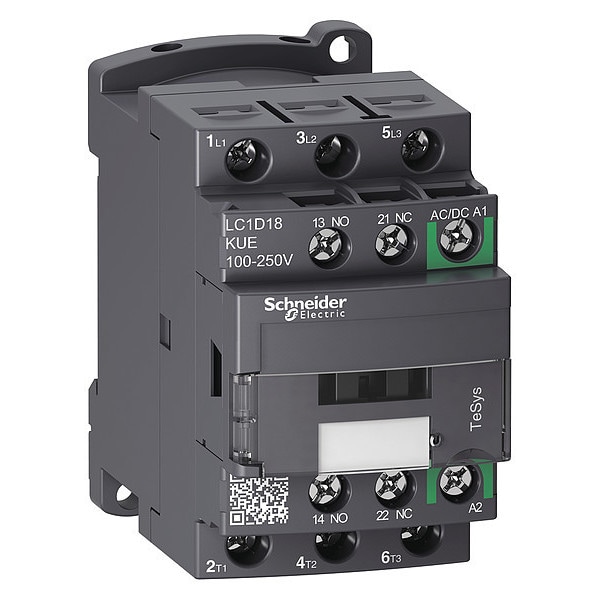

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 100V-250V AC/DC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 18 A
- Full Load Amps-Resistive
- 32 A
- Reversing Capability
- Non-Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 2
- Standards
- CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
- Frame / Series / Class / Code
- TeSys
- HP @ 3 Phase - 575V
- 15 hp
- Enclosure NEMA Rating
- No Enclosure
- Reversing
- No
- Series
- TeSys Deca
- Rated Insulation Volts
- 690V
- Includes Protective Cover
- Yes
- Rated Short-Time Withstand Current
- 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 40 A (at 40°C for 10 min Power Circuit), 84 A (at 40°C for 1 min Power Circuit), 145 A (at 40°C for 10 s Power Circuit), 240 A (at 40°C for 1 s Power Circuit)
- Non-Overlap Time
- 1.5 ms
- Mechanical Durability
- 15 Mcycles
- Application
- Motor Control, Resistive Load
- Fuse Amps
- 10 A (Signalling Circuit), 50 A (Type 1 Power Circuit), 35 A (Type 2 Power Circuit)
- Control Circuit Voltage Limits
- Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C)
- Switching Voltage
- 17 V (Signalling Circuit)
- Switching Current
- 5 mA (Signalling Circuit)
- Environmental Attributes
- Mercury Free, Pollution Degree 3
- Features
- Built-In Bi-Directional Peak Limiting
- Hold VA
- 1.6 VA
- Overvoltage Category
- CAT III
- Watts Loss
- 1.1W
- Rated Breaking Capacity
- 300 A @ 440V
- Signalling Circuit Frequency
- 25 to 400 Hz
- IP Rating
- IP20
- Rated Making Capacity
- 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 300 A @ 440V (Power Circuit)
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Impedance
- 2.5 mOhm
- Impulse Withstand Voltage
- 6 kV
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Inrush VA
- 25 VA
- Shock Resistance
- 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
- Net Weight
- 0.378 kg
- Fire Rating
- UL 94 V1
- Operating Speed
- 3600 cycles per hr
- Operating Time
- 45 to 55 ms (Closing), 20 to 90 ms (Opening)
- Electrical Durability
- 2.2 Mcycles (15 A, AC-3, Less than 440 V); 0.9 Mcycles (32 A, AC-1, Less than 440 V); 2.2 Mcycles (15 A, AC-3e, Less than 440 V)
- Tightening Torque
- 1.7 Nm
- Max. Operating Watts
4 kW (at 220 to 230V AC 50 Hz AC-3), 7.5 kW (at 380 to 400V AC 50 Hz AC-3), 9 kW (at 415V AC 50 Hz AC-3), 9 kW (at 440V AC 50 Hz AC-3), 10 kW (at 500V AC 50 Hz AC-3), 10 kW (at 660 to 690V AC 50 Hz AC-3), 4 kW (at 220 to 230V AC 50 Hz AC-3e), 7.5 kW (at 380 to 400V AC 50 Hz AC-3e), 9 kW (at 415V AC 50 Hz AC-3e), 9 kW (at 440V AC 50 Hz AC-3e), 10 kW (at 500V AC 50 Hz AC-3e), 10 kW (at 660 to 690V AC 50 Hz AC-3e)
- Horsepower @ Three Phase - 600V AC
- 15 hp
- Frequency
- 50/60 Hz
- NEMA Enclosure Rating
- No Enclosure
- Electrical Operating Durability
- 2,200,000, 900,000
- Full Load Current - Inductive
- 18 A
- Resistance Properties
- Fire Resistant, Insulation Resistant
- Horsepower @ Three Phase - 240V AC
- 5 hp
- Horsepower @ Single Phase - 120V AC
- 1 hp
- Phase
- Three
- Contactor Style
- IEC
- Minimum Operating Temperature
- -40 Degrees F
- Number of Normally Open Main Contacts
- 3
- Maximum Voltage Rating
- 690V AC
- Mechanical Operating Durability
- 15,000,000
- Mounting Style
- DIN Rail, Plate
- Maximum Operating Temperature
- 140 Degrees F
- Embedded Surge Suppressor
- No
- Horsepower @ Three Phase - 208V AC
- 5 hp
- Horsepower @ Three Phase - 480V AC
- 10 hp
- Horsepower @ Single Phase - 240V AC
- 3 hp
- Includes Auxiliary Contacts
- Yes
- Full Load Current - Resistive
- 32 A
- Conventional Free Air Thermal Current
- 10 A (at 60°C Signalling Circuit), 32 A (at 60°C Power Circuit)
