  7. IEC Magnetic Contactor, 1NC/1NO, 110V AC, 3 P, Non-Reversing, Screw Clamp

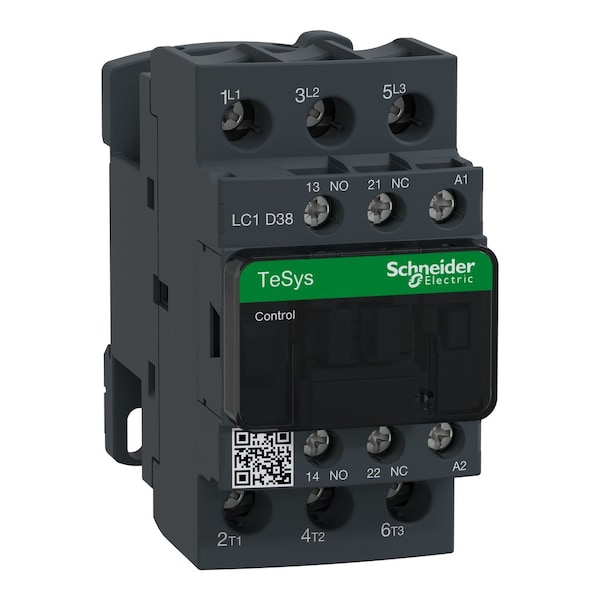

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 110V AC, 3 P, Non-Reversing, Screw Clamp LC1D38F7 - main

IEC Magnetic Contactor, 1NC/1NO, 110V AC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D38F7

  • Zoro # G510080971

product price:  $253.99
/ea
Sold in multiples of 20 for $5,079.80
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
110V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LC1D38F7
Zoro #
G510080971
UPC #
3389110352207
Country of Origin
France

Dimensions

Overall Height
3.35 in
Overall Depth
3.62 in
Overall Width
1.77 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
110V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
IP Rating
IP20
Series
TeSys Deca
Mechanical Operating Durability
15,000,000
Full Load Current - Inductive
38 A
Maximum Voltage Rating
690V AC
Horsepower @ Three Phase - 600V AC
25 hp
Contactor Style
IEC
Mounting Style
DIN Rail, Plate
Frequency
50/60 Hz
Horsepower @ Three Phase - 480V AC
20 hp
Horsepower @ Three Phase - 208V AC
10 hp
Horsepower @ Single Phase - 240V AC
5 hp
Electrical Operating Durability
1,400,000 (AC-1), 1,400,000 (AC-3), 1,400,000 (AC-3e)
Resistance Properties
Fire Resistant, Insulation Resistant
Phase
Three
Horsepower @ Three Phase - 240V AC
10 hp
Includes Auxiliary Contacts
Yes
Embedded Surge Suppressor
No
Full Load Current - Resistive
200 A

Description

The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a three-phase, non-reversing contactor with an auxiliary contact form of 1NC/1NO. It operates on a coil voltage of 110V AC and has a maximum voltage rating of 690V AC. The contactor features DIN Rail and Plate mounting styles, making it versatile for various installations. With fire-resistant and insulation-resistant properties, this product is designed for use in various conditions.

Key Features:

  • Coil Voltage: Operates at 110V AC.
  • Contact Form: Comes with an auxiliary contact form of 1NC/1NO.
  • Durability: Has been tested for electrical operation up to 1,400,000 (AC-1), (AC-3), and (AC-3e) cycles.
  • Load Capacity: Rated for handling full load amps-inductive up to 150 A and resistive up to 200 A.
  • Horsepower Compatibility: Designed for compatibility with a range of horsepower from single phase -240V AC at 5 hp to three phase -600V AC at 25 hp.
  • Mounting Style: Versatile mounting options include DIN Rail or Plate style.
  • Resistance Properties: Fire resistant and insulation resistant as per the specifications provided by the manufacturer.
  • -Terminal Connection Type: Utilizes screw clamp terminal connection type for secure connectivity.
  • -Standards Compliance: Manufactured in compliance with CSA C22.2 No14, EN60947 standards among others as part of our commitment towards safety regulations.

    • Restrictions
