  7. IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp

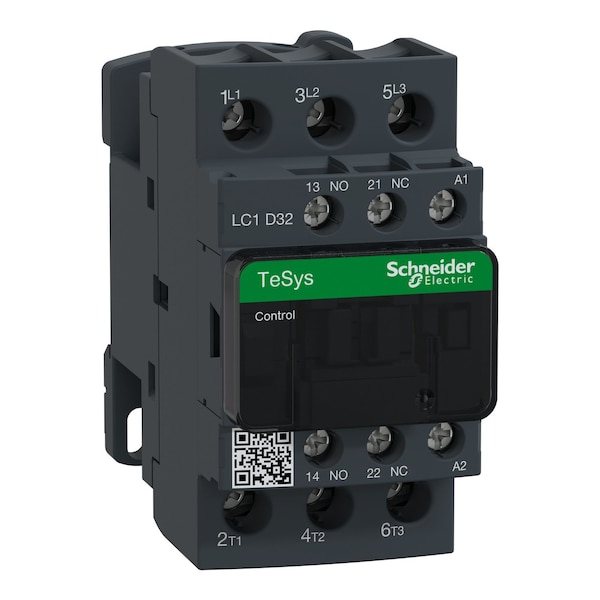

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp LC1D32G7 - main

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D32G7

  • Zoro # G1828461

product price:  $202.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LC1D32G7
Zoro #
G1828461
UPC #
785901207207
Country of Origin
Indonesia

Dimensions

Working Height
Up to 9842.52 ft
Overall Height
3.35 in
Overall Depth
3.62 in
Overall Width
1.77 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
Reversing
No
Enclosure NEMA Rating
No Enclosure
Frame / Series / Class / Code
TeSys
HP @ 3 Phase - 575V
30 hp
Series
TeSys Deca
Operating Speed
3600 cycles per hr
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
IP Rating
IP20
Inrush VA
70 VA
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Max. Operating Watts
7.5 kW (at 220 to 230V AC 50/60 Hz AC-3), 15 kW (at 380 to 400V AC 50/60 Hz AC-3), 15 kW (at 415 to 440V AC 50/60 Hz AC-3), 18.5 kW (at 500V AC 50/60 Hz AC-3), 18.5 kW (at 660 to 690V AC 50/60 Hz AC-3), 7.5 kW (at 400V AC 50/60 Hz AC-4), 7.5 kW (at 220 to 230V AC 50/60 Hz AC-3e), 15 kW (at 380 to 400V AC 50/60 Hz AC-3e), 15 kW (at 415 to 440V AC 50/60 Hz AC-3e), 18.5 kW (at 500V AC 50/60 Hz AC-3e), 18.5 kW (at 660 to 690V AC 50/60 Hz AC-3e)
Rated Breaking Capacity
550 A @ 440V
Switching Current
5 mA (Signalling Circuit)
Non-Overlap Time
1.5 ms
Includes Protective Cover
Yes
Fire Rating
UL 94 V1
Fuse Amps
10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 63 A (Type 2 Power Circuit)
Electrical Durability
1.65 Mcycles (32 A, AC-3, Less than 440 V); 1.4 Mcycles (50 A, AC-1, Less than 440 V); 1.65 Mcycles (32 A, AC-3e, Less than 440 V)
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
Net Weight
0.375 kg
Impedance
2 mOhm
Impulse Withstand Voltage
6 kV
Operating Time
12 to 22 ms (Closing), 4 to 19 ms (Opening)
Hold VA
7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C)
Features
Without Built-In Suppressor Module
Tightening Torque
1.7 Nm (Control Circuit), 2.5 Nm (Power Circuit)
Overvoltage Category
CAT III
Mechanical Durability
15 Mcycles
Rated Insulation Volts
600/690V
Switching Voltage
17 V (Signalling Circuit)
Rated Short-Time Withstand Current
260 A (at 40°C for 10 s Power Circuit), 430 A (at 40°C for 1 s Power Circuit), 60 A (at 40°C for 10 min Power Circuit), 138 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Control Circuit Voltage Limits
Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz)
Signalling Circuit Frequency
25 to 400 Hz
Shock Resistance
8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 550 A @ 440V (Power Circuit)
Watts Loss
2 to 3W
Application
Motor Control, Resistive Load
Horsepower @ Three Phase - 208V AC
7 1/2 hp
Full Load Current - Inductive
32 A
NEMA Enclosure Rating
No Enclosure
Includes Auxiliary Contacts
Yes
Maximum Voltage Rating
690V AC
Electrical Operating Durability
1,400,000, 1,650,000
Minimum Operating Temperature
-40 Degrees F
Horsepower @ Single Phase - 120V AC
2 hp
Full Load Current - Resistive
50 A
Horsepower @ Single Phase - 240V AC
5 hp
Resistance Properties
Fire Resistant, Insulation Resistant
Contactor Style
IEC
Number of Normally Open Main Contacts
3
Horsepower @ Three Phase - 240V AC
10 hp
Horsepower @ Three Phase - 600V AC
30 hp
Mounting Style
DIN Rail, Plate
Mechanical Operating Durability
15,000,000
Embedded Surge Suppressor
No
Frequency
50/60 Hz
Maximum Operating Temperature
140 Degrees F
Phase
Three
Horsepower @ Three Phase - 480V AC
20 hp
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 50 A (at 60°C Power Circuit)

Description

The IEC Magnetic Contactor is a 3-pole, rated for switching power circuits within specified load parameters in IEC-based control systems. It uses a 120 V AC coil and screw clamp terminals, with auxiliary contacts configured as 1NO/1NC (2 total). Suitable for DIN rail or plate mounting; shipped without an enclosure (IP20). It belongs to the TeSys Deca series and includes a protective cover (not intended as safety certification).

Key features

  • Coil voltage: 120 V AC
  • Poles/phase: 3 poles; Three-phase
  • Auxiliary contacts: 2 total (1NO/1NC)
  • Main contacts: 3 normally open
  • Reversing: Rated for non-reversing operation within specified functions
  • Electrical connection: Screw Clamp Terminals
  • Mounting: DIN Rail, Plate
  • Enclosure/IP: No Enclosure; IP20
  • Frame/Series: TeSys Deca
  • Rated voltage / insulation: 690 V AC; Insulation 600/690 V
  • Full load currents: 32 A (Inductive); 50 A (Resistive) | rated for full load currents up to 32 A inductive / 50 A resistive under specified conditions
  • Maximum making capacity: 550 A @ 440 V (Power Circuit); 140 A (AC Signalling); 250 A (DC Signalling) | rated maximum making capacity of up to 550 A at 440 V in power circuit applications; capacities may vary based on actual operating conditions
  • Frequency: 50/60 Hz
  • Dimensions: Depth 3.62 in; Height 3.35 in; Width 1.77 in
  • Net weight: 0.375 kg
  • Operating times: Closing 12–22 ms; Opening 4–19 ms | typical operating times observed under test conditions, not guaranteed during all use cases
  • Coil hold VA: 7.5 VA @ 60 Hz; 7 VA @ 50 Hz | coil consumption ratings at specified frequencies, subject to actual application conditions
  • Impulse withstand voltage: 6 kV | tested impulse withstand voltage of up to approximately 6 kV, but performance may vary with application specifics
  • Shock resistance: 8 G (Open); 15 G (Closed) | shock resistance levels measured under specific test standards; actual resilience depends on installation and environment
  • Operating temperature: Maximum operating temperature 140°F | rated for operation within the specified temperature range, actual performance may vary based on environmental factors
  • Environmental attributes: Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
  • Includes protective cover: Yes -> Includes a protective cover (not intended as safety certification): Yes
  • Embedded surge suppressor: No
