- Item

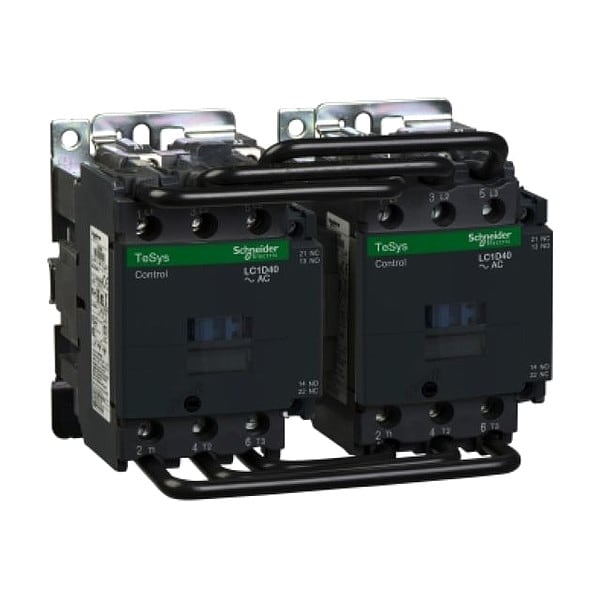

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 120V AC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 50 A
- Full Load Amps-Resistive
- 80 A
- Reversing Capability
- Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 2
- Standards
- CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
- Coil Volts
- 120 V AC
- Action
- Reversing
- Aux. Contact Configuration
- 1NO/1NC
- Series
- TeSys Deca
- IP Rating
- IP20
- Includes Auxiliary Contacts
- Yes
- Maximum Operating Temperature
- 140 Degrees F
- NEMA Enclosure Rating
- No Enclosure
- Embedded Surge Suppressor
- No
- Number of Normally Open Main Contacts
- 1
- Mechanical Operating Durability
- 6,000,000
- Number of Normally Closed Main Contacts
- 0
- Frequency
- 60 Hz
- Contactor Style
- IEC
- Full Load Current - Resistive
- 80 A
- Minimum Operating Temperature
- 23 Degrees F
- Maximum Voltage Rating
- 120V AC
- Full Load Current - Inductive
- 50 A
- Motor Power KW
- 15 kW 220 to 240 V AC 50/60 Hz; 22 kW 380 to 400 V AC 50/60 Hz; 25 kW 415 V AC 50/60 Hz; 30 kW 440 V AC 50/60 Hz; 30 kW 500 V AC 50/60 Hz; 33 kW 660 to 690 V AC 50/60 Hz
- IP Degree Of Protection
- IP2X IEC 60529; IP2X VDE 0106
- Rated Voltage
- 1000V AC
- Rated Insulation Voltage
- Control circuit 600 V CSA; Control circuit 600 V UL; Power circuit 600 V CSA; Power circuit 600 V UL; Control circuit 690 V IEC 60947-1; Power circuit 690 V IEC 60947-1
- Fuse Amps
- 10 A (Control Circuit), 100 A (Type 1 and 2 Power Circuit)
- Fire Resistance
- 1562°F (850°C) IEC 60695-2-1
- Switching Current
- 5 mA (Control Circuit)
- Maximum Operating Rate
- 3600 cyc/h 140°F (60°C)
- Product Certifications
- GL; UL; RINA; GOST; CSA; LROS (Lloyds register of shipping); CCC; DNV; BV; UKCA
- Shock Resistance
- 10 G (Contactor Closed), 8 G (Contactor Open)
- Application
- Motor Control
- Mechanical Durability
- 6 Mcycles
- Operating Altitude
- 9842.52 ft (3000 m) without derating
- Insulation Resistance Range
- Greater Than 10 Mohms (Control Circuit)
- Environmental Attributes
- Mercury Free, PVC Free, Toxic Heavy Metal Free
- Poles Description
- 3P
- Rated Operational Current
- Power circuit 50 A AC AC-3 140°F (60°C))
- Overvoltage Category
- CAT III
- Rated Making Capacity
- 140 A (AC Control Circuit), 900 A @ 440V (Power Circuit)
- Minimum Switching Voltage
- 17 V for control circuit
- Conventional Free Air Thermal Current
- 10 A (at 140°F (60°C)) for control circuit; 80 A (at 140°F (60°C)) for power circuit
- Features
- Without Built-In Bi-Directional Peak Limiting Diode Suppressor
- Impulse Withstand Voltage
- 6 kV
- Inrush VA
- 200 to 220 VA
- Switching Voltage
- 17 V (Control Circuit)
- Control Circuit Voltage Limits
- Drop-Out: 0.3 to 0.6 Uc (at 60°C 50/60 Hz); Operational: 0.8 to 1.1 Uc (at 60°C 50 Hz), 0.85 to 1.1 Uc (at 60°C 60 Hz)
- Flame Retardance
- V1 conforming to UL 94
- Heat Dissipation
- 6 to 10 W at 50/60 Hz for control circuit
- Control Circuit Voltage
- 120 V AC 60 Hz
- Protective Treatment
- TH 3)IEC 60068
- Interlocking Type
- Mechanical
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Utilisation Category
- AC-2; AC-3; AC-4
- Rated Breaking Capacity
- 900 A @ 440V
- Includes Protective Cover
- Yes
- Average Impedance
- 80 A 50 Hz for power circuit
- Power Dissipation Per Pole
- 3.7 W AC-3 - Ith 80 A
- Control Circuit Type
- AC
- Fire Rating
- UL 94 V1
- Operating Time
- 12 to 26 ms (Closing), 4 to 19 ms (Opening)
- Rated Operational Voltage
- Power circuit Less than or Equal to 1000 V AC 25 to 400 Hz
- Coil Type
- Standard
- Inrush Power in VA
- 200 VA cos phi 0.75 (at 68°F (20°C)); 220 VA cos phi 0.75 (at 68°F (20°C))
- Max. Temperature
- 850°C
- Ambient Air Temperature For Operation
- 23 to 140°F (-5 to 60°C)
- Protective Cover
- With
- Non-Overlap Time
- 1.5 ms
- Tightening Torque
- 1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit)
- Hold-In Power Consumption in VA
- 20 VA 50 Hz cos phi 0.3 (at 68°F (20°C)); 22 VA 60 Hz cos phi 0.3 (at 68°F (20°C)); 26 VA 50 Hz cos phi 0.3 (at 68°F (20°C)); 26 VA 60 Hz cos phi 0.3 (at 68°F (20°C))
- Connections - Terminals
Control circuit 1 0.00 to 0.01 in² (1 to 4 mm²)flexible with cable end; Control circuit 1 0.00 to 0.01 in² (1 to 4 mm²)flexible without cable end; Control circuit 1 0.00 to 0.01 in² (1 to 4 mm²)solid without cable end; Control circuit 2 0.00 to 0.00 in² (1 to 2.5 mm²)flexible with cable end; Control circuit 2 0.00 to 0.01 in² (1 to 4 mm²)flexible without cable end; Control circuit 2 0.00 to 0.01 in² (1 to 4 mm²)solid without cable end; Power circuit 1 0.00 to 0.05 in² (1 to 35 mm²)flexible with cable end; Power circuit 1 0.00 to 0.05 in² (1 to 35 mm²)flexible without cable end; Power circuit 1 0.00 to 0.05 in² (1 to 35 mm²)solid without cable end; Power circuit 2 0.00 to 0.04 in² (1 to 25 mm²)flexible with cable end; Power circuit 2 0.00 to 0.04 in² (1 to 25 mm²)flexible without cable end; Power circuit 2 0.00 to 0.04 in² (1 to 25 mm²)solid without cable end; Power circuit 2 0.00 to 0.05 in² (1 to 35 mm²)flexible with cable end; Power circuit 2 0.00 to 0.05 in² (1 to 35 mm²)flexible without cable end; Power circuit 2 0.00 to 0.05 in² (1 to 35 mm²)solid without cable end
- Rated Impulse Withstand Voltage
- 6 kV IEC 60947
- Watts Loss
- 6 to 10W
- Hold VA
- 20 to 26 VA (at 50 Hz 20°C), 22 to 26 VA (at 60 Hz 20°C)
- Mounts On
- Plate, Rail
- Insulation Resistance
- Greater than 10 MOhm for control circuit
- Pole Contact Composition
- 3 NO
- Minimum Switching Current
- 5 mA for control circuit
- Vibration Resistance
- 3 G (Contactor Closed), 2 G (Contactor Open)
- Thermal Amperage
- 10 A (at 60°C Control Circuit), 80 A (at 60°C Power Circuit)
- Ambient Air Temperature For Storage
- -76 to 176°F (-60 to 80°C)
- Net Weight
- 2.4 kg
- Max. Operating Watts
- 15 kW (at 220 to 240V AC 50/60 Hz), 22 kW (at 380 to 400V AC 50/60 Hz), 25 kW (at 415V AC 50/60 Hz), 30 kW (at 440V AC 50/60 Hz), 30 kW (at 500V AC 50/60 Hz), 33 kW (at 660 to 690V AC 50/60 Hz)
- Associated Fuse Rating
- 10 A gG for control circuit conforming to IEC 60947-5-1; 100 A gG at Less than or Equal to 690 V coordination type 1 for power circuit; 100 A gG at Less than or Equal to 690 V coordination type 2 for power circuit
- Rated Insulation Volts
- 600/690V
- Coil Technology
- Without built-in bidirectional peak limiting diode suppressor
- Mounting Support
- Plate; Rail
- Permissible Ambient Air Temperature Around The Device
- -40 to 158°F (-40 to 70°C) at Uc
- Assembly Style
- Ready assembled
- Product Or Component Type
- Reversing contactor
- Operating Speed
- 3600 cycles per hr
- Auxiliary Contacts Type
- Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1
- IRMS Rated Making Capacity
- 140 A AC for control circuit conforming to IEC 60947-5-1; 900 A at 440 V for power circuit conforming to IEC 60947
