- Item

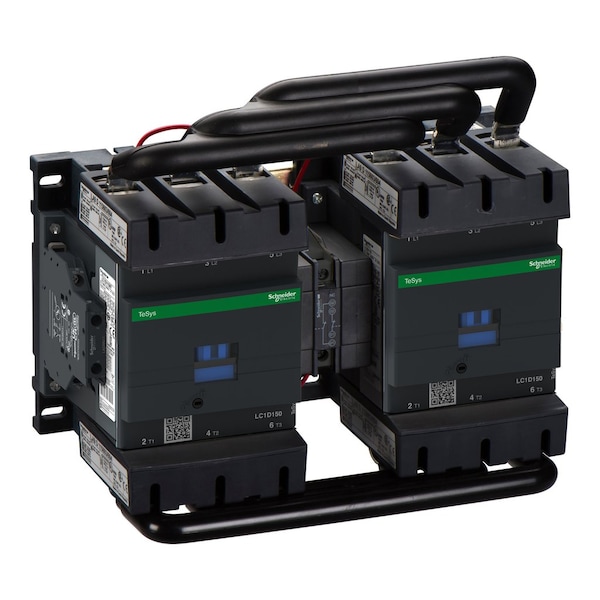

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 120V AC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 15 A
- Full Load Amps-Resistive
- 200 A
- Reversing Capability
- Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 2
- Standards
- CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, BV, CCC, CSA, DNV, GL, RINA, UL, EAC, UKCA, TH IEC 60068-2-30
- HP @ 3 Phase - 575V
- 125 hp
- Series
- LC2D
- Features
- Built-In Bi-Directional Peak Limiting Diode Suppressor; Preassembled with Reversing Power Busbar
- Application
- Motor Control, Resistive Load
- Fire Rating
- UL 94 V1
- Overvoltage Category
- CAT III
- Rated Making Capacity
- 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 1660 A @ 440V (Power Circuit)
- Electrical Durability
- 0.85 Mcycles (150 A, AC-3, Less than 440 V); 1 Mcycles (200 A, AC-1, Less than 440 V)
- Environmental Attributes
- Mercury Free, PVC Free, Pollution Degree 3
- Mechanical Durability
- 8 Mcycles
- Control Circuit Voltage Limits
- Drop-Out AC: 0.3 to 0.5 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.15 Uc (at -40-55°C 50/60 Hz), 1 to 1.15 Uc (at 55-70°C 50/60 Hz)
- Max. Operating Watts
- 40 kW (at 220 to 230V AC 50 Hz), 75 kW (at 380 to 400V AC 50 Hz), 80 kW (at 415 to 440V AC 50 Hz), 90 kW (at 500V AC 50 Hz), 100 kW (at 660 to 690V AC 50 Hz), 75 kW (at 1000V AC 50 Hz)
- Hold VA
- 2 to 18 VA
- Signalling Circuit Frequency
- 25 to 400 Hz
- Non-Overlap Time
- 1.5 ms
- Net Weight
- 6.4 kg
- Switching Voltage
- 17 V (Signalling Circuit)
- Rated Breaking Capacity
- 1400 A @ 440V
- IP Rating
- IP20
- Impedance
- 0.6 mOhm
- Shock Resistance
- 15 G for 11 ms (Contactor Closed), 6 G for 11 ms (Contactor Open)
- Rated Insulation Volts
- 600/1000V (Power Circuit), 600/690V (Signalling Circuit)
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Rated Short-Time Withstand Current
- 250 A (at 40°C for 10 min Power Circuit), 580 A (at 40°C for 1 min Power Circuit), 1200 A (at 40°C for 10 s Power Circuit), 1400 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
- Operating Time
- 20 to 35 ms (Closing), 40 to 75 ms (Opening)
- Impulse Withstand Voltage
- 8 kV
- Watts Loss
- 3 to 4.5W
- Inrush VA
- 280 to 350 VA
- Switching Current
- 5 mA (Signalling Circuit)
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Includes Protective Cover
- Yes
- Fuse Amps
- 10 A (Signalling Circuit), 315 A (Type 1 Power Circuit), 250 A (Type 2 Power Circuit)
- Operating Speed
- 1200 cycles per hr
- Tightening Torque
- 1.2 Nm (Control Circuit), 12 Nm (Power Circuit)
- Mechanical Robustness
- Vibrations contactor open2 Gn, 5 to 300 Hz; Vibrations contactor closed4 Gn, 5 to 300 Hz; Shocks contactor closed15 Gn for 11 ms; Shocks contactor open6 Gn for 11 ms
- Operating Altitude
- 0 to 9842.52 ft (0 to 3000 m)
- Heat Dissipation
- 3 to 4.5 W 50/60 Hz
- Pollution Degree
- 3
- Utilisation Category
- AC-3; AC-1; AC-3e
- Control Circuit Voltage
- 120 V AC 50/60 Hz
- Inrush Power in VA
- 280 to 350 VA 60 Hz 0.9 68°F (20°C)); 280 to 350 VA 50 Hz 0.9 68°F (20°C))
- Product Name
- TeSys Deca
- Fire Resistance
- 1562°F (850°C) IEC 60695-2-1
- Ambient Air Temperature For Operation
- -40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating
- Protective Treatment
- TH IEC 60068-2-30
- Rated Operational Voltage
- Power circuit Less than or Equal to 1000 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC
- Maximum Operating Rate
- 1200 cyc/h 140°F (60°C)
- Rated Operational Current
- 200 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 150 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 150 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit
- Power Dissipation Per Pole
- 24 W AC-1; 13.5 W AC-3; 13.5 W AC-3e
- Control Circuit Type
- AC 50/60 Hz
- Front Cover
- With
- Ambient Air Temperature For Storage
- -76 to 176°F (-60 to 80°C)
- Interlocking Type
- Mechanical; Electrical
- Climatic Withstand
- IACS E10
- Auxiliary Contacts Type
- Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1
- Conventional Free Air Thermal Current
- 200 A (at 140°F (60°C)) for power circuit
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Device Presentation
- Preassembled with reversing power busbar
- Contactor Application
- Motor control; Resistive load
- Horsepower @ Three Phase - 208V AC
- 40 hp
- Horsepower @ Three Phase - 480V AC
- 100 hp
- Horsepower @ Three Phase - 240V AC
- 50 hp
- Full Load Current - Inductive
- 15 A
- Full Load Current - Resistive
- 200 A
- Maximum Operating Temperature
- 140 Degrees F
- Pole Contact Composition
- 3 NO
- Mounting Style
- Plate, Rail
- Maximum Voltage Rating
- 1000V AC, 300V DC
