  7. IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp

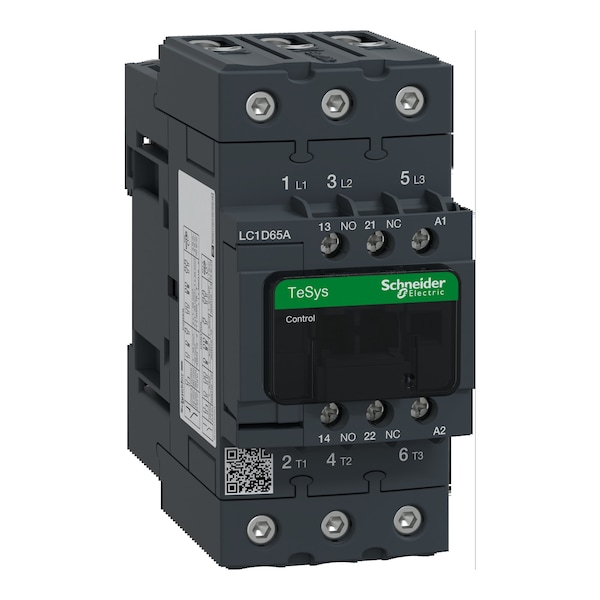

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp LC1D65AG7 - main

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D65AG7

  • Zoro # G0616883

product price:  $374.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LC1D65AG7
Zoro #
G0616883
UPC #
785901565529
Country of Origin
Indonesia

Dimensions

Working Height
Up to 9842.52 ft
Overall Width
2.17 in
Overall Height
4.8 in
Overall Depth
4.72 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CCC, CSA, CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, UL Listed
HP @ 3 Phase - 575V
50 hp
Frame / Series / Class / Code
TeSys
Enclosure NEMA Rating
No Enclosure
HP @ 1 Phase - 230V
10
Reversing
No
Includes
Everlink Power Connections
Series
TeSys Deca
Hold VA
13 VA
Operating Time
4 to 19 ms (Opening), 12 to 26 ms (Closing)
Switching Voltage
17 V (Signalling Circuit)
Watts Loss
4 to 5W
Tightening Torque
1.7 Nm (Control Circuit), 2.5 to 8 Nm (Power Circuit)
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 1000 A @ 440V (Power Circuit)
Control Circuit Voltage Limits
Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 60 Hz) , Operational AC: 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 60 Hz)
Includes Protective Cover
Yes
Mechanical Durability
6 Mcycles
Electrical Durability
1.4 Mcycles (80 A, AC-1, Less than 440 V); 1.45 Mcycles (65 A, AC-3, Less than 440 V); 1.45 Mcycles (65 A, AC-3e, Less than 440 V)
Inrush VA
140 VA
IP Rating
IP20
Rated Breaking Capacity
1000 A @ 440V
Non-Overlap Time
1.5 ms
Signalling Circuit Frequency
25 to 400 Hz
Impulse Withstand Voltage
6 kV
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
Application
Motor Control, Resistive Load
Impedance
1.5 mOhm
Overvoltage Category
CAT III
Net Weight
0.86 kg
Operating Speed
3600 cycles per hr
Features
Without Built-In Suppressor Module
Rated Short-Time Withstand Current
520 A (at 40°C for 10 s Power Circuit), 900 A (at 40°C for 1 s Power Circuit), 110 A (at 40°C for 10 min Power Circuit), 260 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Fuse Amps
10 A (Signalling Circuit), 125 A (Type 1 Power Circuit), 125 A (Type 2 Power Circuit)
Max. Operating Watts
11 kW (at 400V AC 50/60 Hz AC-4), 18.5 kW (at 220 to 230V AC 50/60 Hz AC-3), 30 kW (at 380 to 400V AC 50/60 Hz AC-3), 37 kW (at 500V AC 50/60 Hz AC-3), 37 kW (at 660 to 690V AC 50/60 Hz AC-3), 18.5 kW (at 220 to 230V AC 50/60 Hz AC-3e), 30 kW (at 380 to 400V AC 50/60 Hz AC-3e), 37 kW (at 500V AC 50/60 Hz AC-3e), 37 kW (at 660 to 690V AC 50/60 Hz AC-3e)
Switching Current
5 mA (Signalling Circuit)
Shock Resistance
10 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)
Fire Rating
UL 94 V1
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Rated Insulation Volts
600/690V
Mounting Style
DIN Rail, Plate
Includes Auxiliary Contacts
Yes
Horsepower @ Single Phase - 120V AC
5 hp
Horsepower @ Three Phase - 208V AC
20 hp
Maximum Operating Temperature
140 Degrees F
Horsepower @ Single Phase - 240V AC
10 hp
Frequency
50/60 Hz
Resistance Properties
Fire Resistant, Insulation Resistant
NEMA Enclosure Rating
No Enclosure
Contactor Style
IEC
Phase
Three
Full Load Current - Inductive
65 A
Full Load Current - Resistive
80 A
Horsepower @ Three Phase - 600V AC
50 hp
Minimum Operating Temperature
-40 Degrees F
Horsepower @ Three Phase - 240V AC
20 hp
Maximum Voltage Rating
690V AC
Horsepower @ Three Phase - 480V AC
40 hp
Number of Normally Open Main Contacts
3
Electrical Operating Durability
1,400,000, 1,450,000
Mechanical Operating Durability
6,000,000
Embedded Surge Suppressor
No
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 80 A (at 60°C Power Circuit)

Description

The Schneider Electric IEC Magnetic Contactor, TeSys Deca, is a 3-pole, non-reversing, coil-operated switching device rated for operation within IEC standards. It features 3 main normally-open contacts and 2 auxiliary contacts (1NO/1NC), with a 120 V AC coil and screw clamp terminals. Mounted on DIN rail or plate, it has an open design with IP20 protection rating and is rated for use with motor control and resistive loads at 50/60 Hz within specified voltage ranges up to 690 V AC.

Key features

  • Action: Non-Reversing
  • Application: Motor Control, Resistive Load
  • Poles/Main Contacts: 3 poles; 3 NO main contacts
  • Auxiliary Contacts: 1NO/1NC (2 total); Includes Auxiliary Contacts: Yes
  • Coil Voltage: 120 V AC
  • Electrical Connection: Screw Clamp Terminals
  • Mounting: DIN Rail, Plate; Mounts On: Plate, Rail
  • Enclosure/IP: Has an open design with IP20 protection rating
  • Maximum/Insulation Voltage: Rated for operation up to 690 V AC within specified parameters; 600/690 V insulation
  • Frequency: 50/60 Hz
  • Series/Frame: TeSys Deca (TeSys)
  • Weight/Dimensions: 0.86 kg; Depth 4.72 in; Height 4.8 in; Width 2.17 in
  • Durability: Mechanical durability approximately 6 million cycles; Electrical endurance within typical operational expectations
  • Inrush/Standards: Conforms to listed standards including UL, EN, CCC, CSA, GOST, IEC as applicable
  • Included/Extras: Everlink Power Connections; Protective Cover: Yes
  • Other: Embedded Surge Suppressor: No; Phase: Three; Maximum Operating Temperature: 140°F
