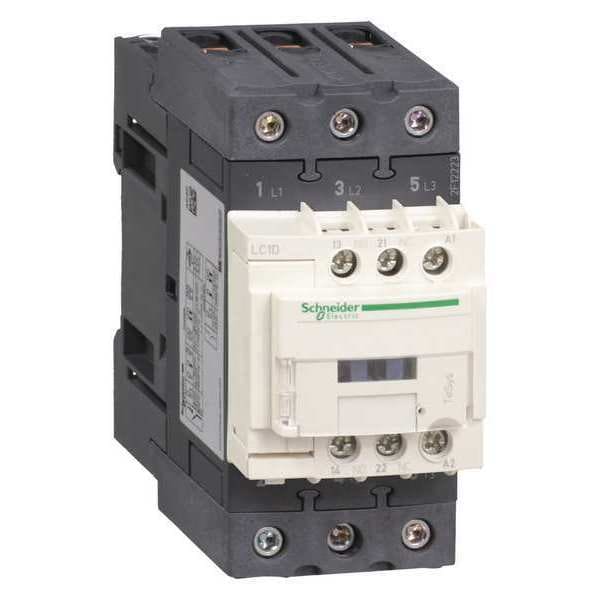

IEC Magnetic Contactor, 1NC/1NO, 240V AC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D40AU7
  • Zoro # G3270337
product price:
$
248.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
240V AC
Number of Poles
3
Full Load Amps-Inductive
40 A
Full Load Amps-Resistive
60 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LC1D40AU7
Zoro #
G3270337
UPC #
785901735458
Country of Origin
Indonesia
Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
240V AC
Number of Poles
3
Full Load Amps-Inductive
40 A
Full Load Amps-Resistive
60 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CCC, CSA, CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, UL Listed
HP @ 3 Phase - 575V
30 hp
Reversing
No
Frame / Series / Class / Code
TeSys
HP @ 1 Phase - 230V
5
Enclosure NEMA Rating
No Enclosure
Includes
Everlink Power Connections
Series
TeSys Deca
Operating Speed
3600 cycles per hr
Switching Current
5 mA (Signalling Circuit)
Rated Short-Time Withstand Current
320 A (at 40°C for 10 s Power Circuit), 720 A (at 40°C for 1 s Power Circuit), 72 A (at 40°C for 10 min Power Circuit), 165 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
IP Rating
IP20
Operating Time
4 to 19 ms (Opening), 12 to 26 ms (Closing)
Fire Rating
UL 94 V1
Non-Overlap Time
1.5 ms
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Features
Without Built-In Suppressor Module
Control Circuit Voltage Limits
Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz)
Signalling Circuit Frequency
25 to 400 Hz
Application
Motor Control, Resistive Load
Rated Insulation Volts
600V, 690V
Switching Voltage
17 V (Signalling Circuit)
Net Weight
0.85 kg
Inrush VA
140 VA (at 60 Hz 20°C), 160 VA (at 50 Hz 20°C)
Overvoltage Category
CAT III
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 800 A @ 440V (Power Circuit)
Electrical Durability
1.4 Mcycles (60 A, AC-1, Less than 440 V); 1.5 Mcycles (40 A, AC-3, Less than 440 V); 1.5 Mcycles (40 A, AC-3e, Less than 440 V)
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Includes Protective Cover
Yes
Max. Operating Watts
18.5 kW (at 380 to 400V AC 50/60 Hz AC-3), 11 kW (at 220 to 230V AC 50/60 Hz AC-3), 22 kW (at 415 to 440V AC 50/60 Hz AC-3), 22 kW (at 500V AC 50/60 Hz AC-3), 30 kW (at 660 to 690V AC 50/60 Hz AC-3), 9 kW (at 400V AC 50/60 Hz AC-4), 18.5 kW (at 380 to 400V AC 50/60 Hz AC-3e), 11 kW (at 220 to 230V AC 50/60 Hz AC-3e), 22 kW (at 415 to 440V AC 50/60 Hz AC-3e), 22 kW (at 500V AC 50/60 Hz AC-3e), 30 kW (at 660 to 690V AC 50/60 Hz AC-3e)
Tightening Torque
1.7 Nm (Control Circuit), 2.5 to 8 Nm (Power Circuit)
Fuse Amps
10 A (Signalling Circuit), 80 A (Type 1 Power Circuit), 80 A (Type 2 Power Circuit)
Shock Resistance
10 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)
Impedance
1.5 mOhm
Mechanical Durability
6 Mcycles
Hold VA
13 VA (at 60 Hz 20°C), 15 VA (at 50 Hz 20°C)
Watts Loss
4 to 5W
Impulse Withstand Voltage
6 kV
Rated Breaking Capacity
800 A @ 440V
Includes Auxiliary Contacts
Yes
NEMA Enclosure Rating
No Enclosure
Full Load Current - Resistive
60 A
Maximum Voltage Rating
690V AC
Horsepower @ Single Phase - 120V AC
3 hp
Horsepower @ Three Phase - 240V AC
10 hp
Resistance Properties
Fire Resistant, Insulation Resistant
Embedded Surge Suppressor
No
Phase
Three
Contactor Style
IEC
Mechanical Operating Durability
6,000,000
Maximum Operating Temperature
140 Degrees F
Horsepower @ Three Phase - 480V AC
30 hp
Horsepower @ Single Phase - 240V AC
5 hp
Mounting Style
DIN Rail, Plate
Horsepower @ Three Phase - 208V AC
10 hp
Minimum Operating Temperature
-40 Degrees F
Horsepower @ Three Phase - 600V AC
30 hp
Full Load Current - Inductive
40 A
Number of Normally Open Main Contacts
3
Electrical Operating Durability
1,400,000, 1,500,000
Frequency
50/60 Hz
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 60 A (at 60°C Power Circuit)

Dimensions

Working Height
Up to 9842.52 ft
Overall Width
2.17 in
Overall Depth
4.72 in
Overall Height
4.8 in

Description

The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a non-reversing, three-phase device designed for motor control and resistive load applications. It operates on a coil voltage of 240V AC and features screw clamp terminals for secure electrical connections. The contactor has an auxiliary contact configuration of 1NO/1NC, providing flexibility in circuit design. With its compact dimensions (2.17in width x 4.61in depth), this magnetic contactor can be conveniently mounted on DIN rails or plates.

Key Features:

  • Operates within specified frequency range of50/60 Hz; rated for full load amps-inductive at40 A and full load amps-resistive at60 A.
  • Rated for operation within the specified horsepower ranges: from 3 hp @ single phase -120V AC to up to 30 hp @ three phase -600V AC.
  • Operating wattage range is specified between a minimum of 9 kW (at 400V AC) and a maximum of 30 kW (at both the ranges:660-690 VAC).
  • Mechanical durability tested for up to six million cycles.
  • Comes with two auxiliary contacts and three normally open main contacts.
  • Rated insulation volts stand at an impressive range between600/690 V
  • Resistant properties include fire resistance and insulation resistance based on manufacturer's testing.
  • -The device is designed in compliance with multiple standards including CCC, CSA C22.2 No14, EN60947 series among others as per manufacturer's specifications.
