Shop SCHNEIDER ELECTRIC

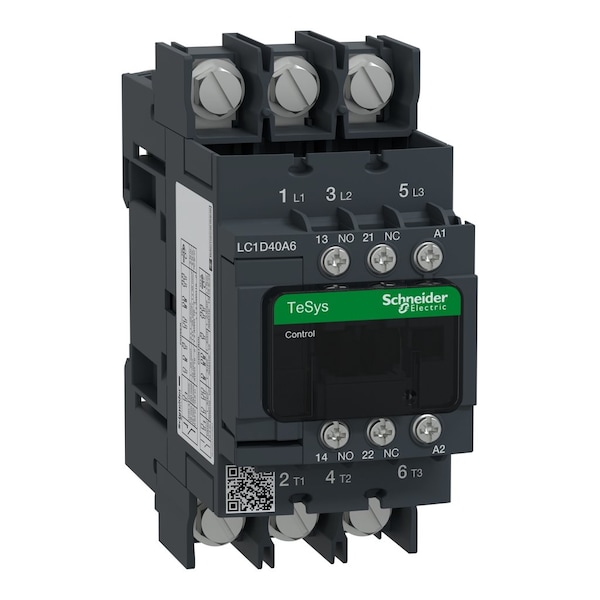

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Screw

  • Mfr # LC1D40A6G7

  • Zoro # G510070361

product price:
$
297.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
120V AC
Number of Poles
3
Full Load Amps-Inductive
150 A
Full Load Amps-Resistive
200 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC1D40A6G7
Zoro #
G510070361
UPC #
3389118326477
Country of Origin
France

Dimensions

Overall Width
2.17 in
Overall Height
4.8 in
Overall Depth
4.72 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
120V AC
Number of Poles
3
Full Load Amps-Inductive
150 A
Full Load Amps-Resistive
200 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
Number of Auxillary Contacts
2
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
IP Rating
IP20
Series
TeSys Deca
Resistance Properties
Fire Resistant, Insulation Resistant
Full Load Current - Inductive
40 A
Includes Auxiliary Contacts
Yes
Horsepower @ Single Phase - 120V AC
3 hp
Contactor Style
IEC
Embedded Surge Suppressor
No
Horsepower @ Single Phase - 240V AC
5 hp
Full Load Current - Resistive
200 A
Phase
Three
Horsepower @ Three Phase - 208V AC
10 hp
Horsepower @ Three Phase - 480V AC
30 hp
Mounting Style
DIN Rail, Plate
Electrical Operating Durability
1,400,000 (AC-1), 1,500,000 (AC-3), 1,500,000 (AC-3e)
Maximum Voltage Rating
690V AC
Frequency
60 Hz
Horsepower @ Three Phase - 240V AC
10 hp
Mechanical Operating Durability
6,000,000
Horsepower @ Three Phase - 600V AC
30 hp

Description

The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing IEC-style device with a 120V AC coil and auxiliary contacts configured as 1NC/1NO (2 total). It is rated for switching power circuits in accordance with IEC standards and supports three-phase operation at 60 Hz within its specified voltage range. The unit mounts on DIN Rail or Plate; it includes two auxiliary contacts. Mechanical durability: up to approximately six million cycles; electrical durability: up to approximately one million four hundred thousand cycles (AC-1), one million five hundred thousand cycles (AC-3/AC-3e). It does not include an embedded surge suppressor; it has an IP20 ingress protection rating. Complies with standards including CSA C22.2 No 14; EN 60947 series; IEC 60335 series; UL 508 among others.

Coil voltage: 120V AC

  • Poles/Phase: 3, Three-phase; Reversing: Non-Reversing
  • Auxiliary contacts: 2 total (1NC/1NO)
  • Maximum voltage rating: 690V AC
  • Frequency: 60 Hz
  • Mounting: DIN Rail, Plate
  • IP rating: IP20 ingress protection
  • Mechanical durability: up to six million cycles
  • Electrical durability: up to 1.4 million cycles (AC-1); 1.5 million cycles (AC-3/AC-3e)
  • Full load amps: Inductive 150 A; Resistive 200 A
  • Full load current: Inductive 40 A; Resistive 200 A
  • Horsepower: 3 hp @ 120V; 5 hp @ 240V; 10 hp @ 208V/240V; 30 hp @ 480V/600V
  • Series: TeSys Deca; Item: IEC Magnetic Contactor
