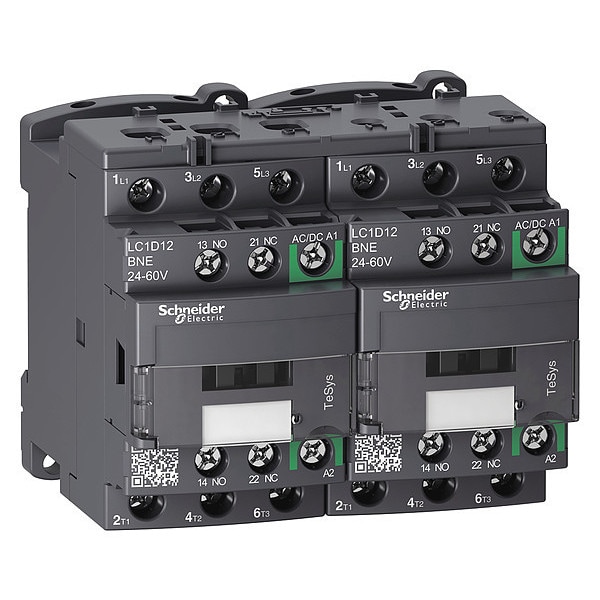

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 24V-60V AC/DC, 3 P, Reversing, Screw Clamp LC2D12BNE - main

IEC Magnetic Contactor, 1NC/1NO, 24V-60V AC/DC, 3 P, Reversing, Screw Clamp

  • Mfr # LC2D12BNE

  • Zoro # G6033279

product price:  $200.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V-60V AC/DC
Number of Poles
3
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LC2D12BNE
Zoro #
G6033279
UPC #
-
Country of Origin
France

Dimensions

Overall Height
3.03 in
Overall Width
3.54 in
Overall Depth
3.39 in
Working Height
Up to 9842.52 ft

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V-60V AC/DC
Number of Poles
3
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
HP @ 3 Phase - 575V
10 hp
Enclosure NEMA Rating
No Enclosure
Reversing
Yes
Frame / Series / Class / Code
TeSys
Series
TeSys Deca
IP Rating
IP20
Number of Normally Open Main Contacts
3
Maximum Voltage Rating
690V AC
Frequency
50/60 Hz
Horsepower @ Three Phase - 208V AC
3 hp
Contactor Style
IEC
NEMA Enclosure Rating
No Enclosure
Horsepower @ Three Phase - 240V AC
3 hp
Horsepower @ Single Phase - 120V AC
1/2 hp
Embedded Surge Suppressor
No
Horsepower @ Single Phase - 240V AC
2 hp
Horsepower @ Three Phase - 480V AC
7 1/2 hp
Resistance Properties
Fire Resistant, Insulation Resistant
Horsepower @ Three Phase - 600V AC
10 hp
Full Load Current - Resistive
25 A
Includes Auxiliary Contacts
Yes
Mounting Style
DIN Rail, Plate
Minimum Operating Temperature
-40 Degrees F
Electrical Operating Durability
2,300,000, 800,000
Maximum Operating Temperature
140 Degrees F
Mechanical Operating Durability
15,000,000
Full Load Current - Inductive
12:00 AM
Operating Time
45 to 55 ms (Closing), 20 to 90 ms (Opening)
Environmental Attributes
Mercury Free, Pollution Degree 3
Fire Rating
UL 94 V1
Inrush VA
15 VA
Signalling Circuit Frequency
25 to 400 Hz
Includes Protective Cover
Yes
Features
Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar
Rated Making Capacity
250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
Hold VA
0.9 VA
Max. Operating Watts
3 kW (at 220 to 230V AC 50 Hz), 5.5 kW (at 380 to 400V AC 50 Hz), 5.5 kW (at 415V AC 50 Hz), 5.5 kW (at 440V AC 50 Hz), 7.5 kW (at 500V AC 50 Hz), 7.5 kW (at 660 to 690V AC 50 Hz)
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Electrical Durability
2.3 Mcycles (11 A, AC-3, Less than 440 V); 0.8 Mcycles (25 A, AC-1, Less than 440 V)
Rated Insulation Volts
690V
Net Weight
0.793 kg
Operating Speed
3600 cycles per hr
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Non-Overlap Time
1.5 ms
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Rated Breaking Capacity
250 A @ 440V
Watts Loss
0.6W
Application
Motor Control, Resistive Load
Rated Short-Time Withstand Current
105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit), 30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Tightening Torque
1.7 Nm
Overvoltage Category
CAT III
Impulse Withstand Voltage
6 kV
Control Circuit Voltage Limits
Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C), Operational AC: 0.85 to 1.1 Uc (at -40 to 60°C), Operational DC: 0.8 to 1.1 Uc (at -40 to 60°C), Operational AC/DC 1 to 1.1 Uc (at 60 to 70°C)
Impedance
2.5 mOhm
Mechanical Durability
15 Mcycles
Fuse Amps
10 A (Signalling Circuit), 40 A (Type 1 Power Circuit), 25 A (Type 2 Power Circuit)
Switching Current
5 mA (Signalling Circuit)
Switching Voltage
17 V (Signalling Circuit)
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 25 A (at 60°C Power Circuit)

Description

The Schneider Electric IEC Magnetic Contactor is a three-pole, reversing type rated for switching power circuits within specified application types. It is rated for operation within the specified voltage range and uses screw clamp terminals. The device is IEC-style, part of the TeSys Deca family, and includes two auxiliary contacts (1NO/1NC) along with a protective cover and no enclosure. This compact unit is compatible with standard control panel configurations.

Key features:

  • Coil Voltage: 24–60 V AC/DC; Frequency: 50/60 Hz
  • Poles/Contacts: 3 poles; Auxiliary Contacts: 1NO/1NC (2 total); Includes Auxiliary Contacts: Yes
  • Reversing: Yes; Frame/Series: TeSys Deca; Contactor Style: IEC
  • Rated for operation at voltages up to 690 V; current ratings are based on standard testing conditions
  • Mounting: DIN Rail, Plate; Electrical Connection: Screw Clamp
  • Enclosure: No Enclosure; IP20; Includes Protective Cover: Yes
  • Durability: Durability ratings are based on standardized testing procedures and do not imply guaranteed lifespan under all conditions
  • Operating Times: Typical operating times as per manufacturer specifications under test conditions (Close 45–55 ms; Open 20–90 ms; Non-Overlap Time: 1.5 ms)
  • Impulse Withstand Voltage: Conforms to tested impulse withstand voltage levels according to standards
  • Overvoltage Category: CAT III; Standards: UL Listed, EN/IEC 60947-4-1, EN/IEC 60947-5-1, and others
  • Weight/Dimensions: 0.793 kg; Depth 3.38 in, Height 3.03 in, Width 3.54 in
  • Insulation Resistance: Insulation resistance measured under specified test conditions
