  7. IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw

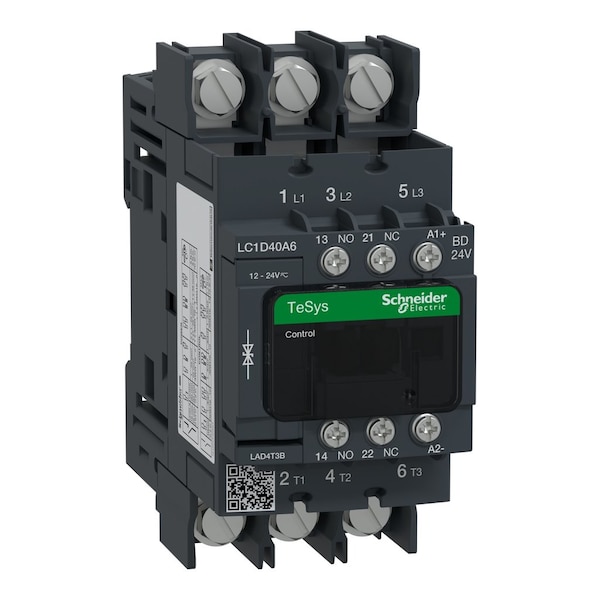

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw LC1D40A6BD - main
Shop SCHNEIDER ELECTRIC

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw

  • Mfr # LC1D40A6BD

  • Zoro # G710070215

product price:  $406.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V DC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LC1D40A6BD
Zoro #
G710070215
UPC #
3389119408615
Country of Origin
France

Dimensions

Overall Height
4.8 in
Overall Depth
4.72 in
Overall Width
2.17 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V DC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
Number of Auxillary Contacts
2
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
IP Rating
IP20
Series
TeSys Deca
Horsepower @ Three Phase - 480V AC
30 hp
Resistance Properties
Fire Resistant, Insulation Resistant
Phase
Three
Horsepower @ Three Phase - 600V AC
30 hp
Full Load Current - Resistive
200 A
Electrical Operating Durability
1,500,000 (AC-3), 1,500,000 (AC-3e), 700,000 (AC-1)
Mechanical Operating Durability
10,000,000
Mounting Style
DIN Rail, Plate
Maximum Voltage Rating
690V AC
Horsepower @ Three Phase - 208V AC
10 hp
Contactor Style
IEC
Includes Auxiliary Contacts
Yes
Horsepower @ Three Phase - 240V AC
10 hp
Horsepower @ Single Phase - 240V AC
5 hp
Frequency
50 Hz
Horsepower @ Single Phase - 120V AC
3 hp
Embedded Surge Suppressor
No
Full Load Current - Inductive
40 A

Description

The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a three-phase, non-reversing contactor with an auxiliary contact form of 1NC/1NO. It operates on a coil voltage of 24V DC and has an electrical operating durability of 1,500,000 (AC-3), 1,500,000 (AC-3e), and 700,000 (AC-1). This IEC-style contactor does not include an embedded surge suppressor but does come with auxiliary contacts. The maximum voltage rating for this item is 690V AC.

Key features based on attributes:

Full Load Amps: Inductive at 150 A and Resistive at 200 A.

  • Horsepower Compatibility: Suitable for single phase operations at both 120V AC (3 hp) and 240V AC (5 hp), as well as three-phase operations ranging from 208V AC (10 hp) to a maximum of Three Phase -600 V AC(30hp).
  • Durability: Mechanical Operating Durability rated up to ten million cycles.
  • Mounting Style: Can be mounted using DIN Rail or Plate methods.
  • Resistance Properties: Has fire resistance and insulation resistance properties, designed for use in various conditions.
  • Terminal Connection Type: Features screw type connection design.
  • Standards Compliance: Meets multiple standards including CSA C22.2 No14, EN60947-4-1 among others according to manufacturer's specifications.
