Item

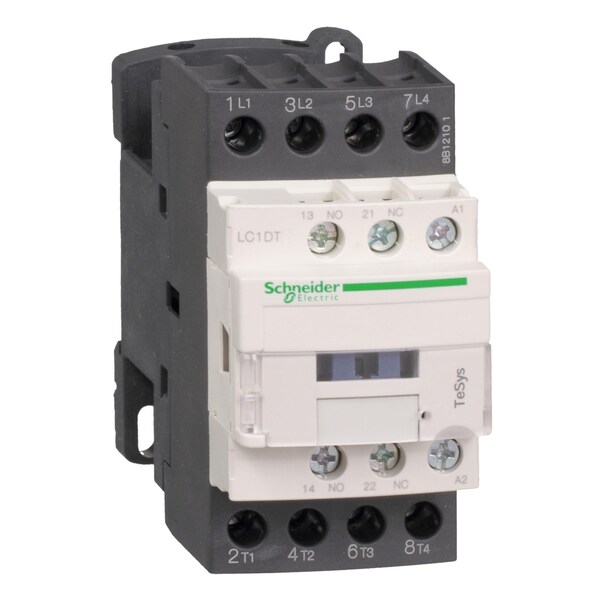

IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Full Load Amps-Inductive
20 A
Full Load Amps-Resistive
20 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, UL, GOST, CSA, RINA, CCC, BV, LROS, DNV, GL, THIEC 60068-2-30
Series
LC1D, TeSys, TeSys Deca
Features
Built-In Bi-Directional Peak Limiting Diode Suppressor
Application
Resistive Load
Switching Current
5 mA (Signalling Circuit)
Rated Short-Time Withstand Current
30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 250 A @ 440V (Power Circuit)
Operating Speed
3600 cycles per hr
Rated Insulation Volts
600/690V
Overvoltage Category
CAT III
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Signalling Circuit Frequency
25 to 400 Hz
Fuse Amps
10 A (Signalling Circuit), 25 A (Type 1 Power Circuit), 20 A (Type 2 Power Circuit)
Mechanical Durability
30 Mcycles
Control Circuit Voltage Limits
Drop-Out DC: 0.1 to 0.3 Uc (at -40 to 70°C), Operational DC: 0.8 to 1.25 Uc (at -40 to 60°C), 1 to 1.25 Uc (at 60 to 70°C)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Operating Time
65.45 to 88.55 ms (Closing), 20 to 30 ms (Opening)
Rated Breaking Capacity
250 A @ 440V
Switching Voltage
17 V (Signalling Circuit)
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
Includes Protective Cover
Yes
Shock Resistance
10 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)
Impulse Withstand Voltage
6 kV
[Icw] Rated Short-Time Withstand Current
30 A 40°C - 10 min for power circuit, 61 A 40°C - 1 min for power circuit, 105 A 40°C - 10 s for power circuit, 210 A 40°C - 1 s for power circuit, 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit
Pole Contact Composition
4 NO
Operating Altitude
0...9842.52 ft (0...3000 m)
[Ui] Rated Insulation Voltage
power circuit 600 V CSA, power circuit 600 V UL, signalling circuit 690 V IEC 60947-1, signalling circuit 600 V CSA, signalling circuit 600 V UL, power circuit 690 V IEC 60947-4-1
Auxiliary Contacts Type
mechanically linked 1 NO + 1 NC IEC 60947-5-1, mirror contact 1 NC IEC 60947-4-1
Protective Treatment
THIEC 60068-2-30
Maximum Operating Rate
3600 cyc/h 60°C
Mechanical Robustness
vibrations contactor open 2 Gn, 5...300 Hz) , vibrations contactor closed 4 Gn, 5...300 Hz) , shocks contactor closed 15 Gn for 11 ms) , shocks contactor open 10 Gn for 11 ms)
Control Circuit Type
DC low consumption
Climatic Withstand
IACS E10 exposure to damp heat, IEC 60947-1 Annex Q category D exposure to damp heat
Utilisation Category
AC-1
Fire Resistance
850°C IEC 60695-2-1
Power Dissipation Per Pole
1.56 W AC-1
Full Load Current - Resistive
20 A
Full Load Current - Inductive
20 A
Hold-In Power Consumption in W
2.4-2.4 W 20°C
Rated Operational Voltage
power circuit <= 690 V AC 25...400 Hz, power circuit <= 300 V DC
Inrush Power in W
2.4-2.4 W 20°C)
Maximum Voltage Rating
690V AC, 300V DC
Rated Operational Current
20 A (at <60°C) at <= 440 V AC AC-1 for power circuit
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 20 A (at 60°C Power Circuit)
Ambient Air Temperature For Operation
-40-60°C, 60-70°C with derating
Maximum Operating Temperature
140 Degrees F
Mounting Style
Plate, Rail
