Shop SCHNEIDER ELECTRIC

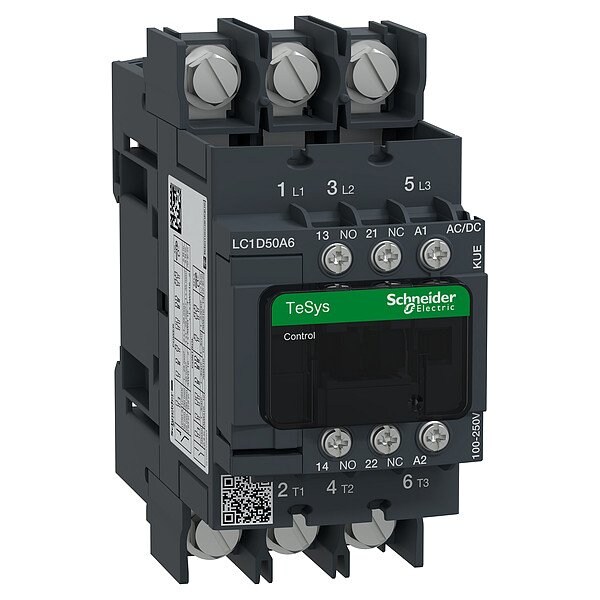

CONT 3P 50A AC3 NO+NC 100-250V ACDC LUGS

  • Mfr # LC1D50A6KUE

  • Zoro # G222808801

product price:
$
569.99
/ea
Free Shipping & Returns

Key Features

Minimum Operating Temperature
-40 Degrees F
Overall Width
2.17 in
Resistance Properties
Fire Resistant, Insulation Resistant, Shock Resistant, Vibration Resistant
Full Load Current - Inductive
50 A
Contactor Style
IEC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC1D50A6KUE
Zoro #
G222808801
UPC #
-
Country of Origin
Multiple

Dimensions

Overall Width
2.17 in
Overall Height
4.8 in
Overall Depth
4.72 in

Details

Minimum Operating Temperature
-40 Degrees F
Resistance Properties
Fire Resistant, Insulation Resistant, Shock Resistant, Vibration Resistant
Full Load Current - Inductive
50 A
Contactor Style
IEC
Phase
Three
Mechanical Operating Durability
6,000,000
Full Load Current - Resistive
Not Rated
Horsepower @ Three Phase - 480V AC
40 hp
Number of Poles
3
Auxiliary Contact Form
1NO/1NC
Terminal Connection Type
Box Lugs
Includes Auxiliary Contacts
Yes
Maximum Operating Temperature
140 Degrees F
Maximum Voltage Rating
480V AC
NEMA Enclosure Rating
No Enclosure
Reversing Capability
Non-Reversing
Embedded Surge Suppressor
Yes
Frequency
50/60 Hz
Number of Auxillary Contacts
2
Electrical Operating Durability
500,000, 850,000
Coil Voltage
100-250V AC/DC
Series
Tesys Deca
Number of Normally Open Main Contacts
3
Item
IEC Contactor
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS (Lloyds Register of Shipping), UKCA, UL 60947-4-1, UL Listed

Description

IEC Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 100-250V AC/DC, Number of Poles 3, Full Load Current - Inductive 50 A, Full Load Current - Resistive Not Rated, Reversing Capability Non-Reversing, Overall Height 4.8 in, Overall Width 2.17 in, Terminal Connection Type Box Lugs, Frame Size Not Applicable, Series Tesys Deca, Number of Auxillary Contacts 2, Contactor Style IEC, Horsepower @ Three Phase - 480V AC 40 hp
