  7. IEC Magnetic Contactor, 2NC/2NO, 24V DC, 4 P, Screw Clamp

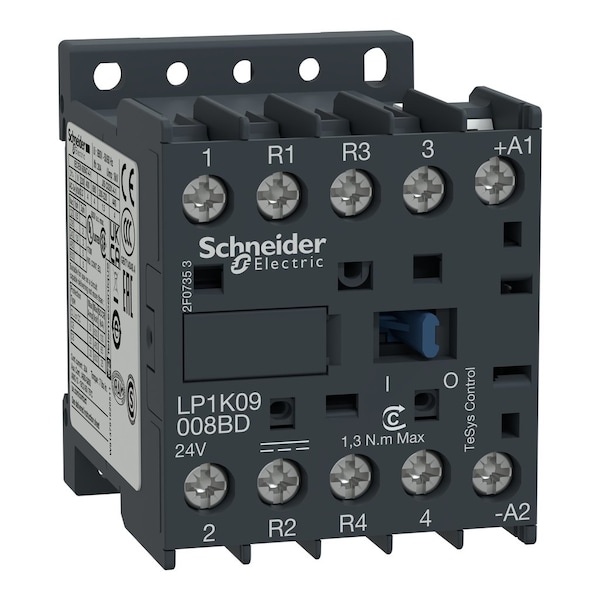

Schneider Electric IEC Magnetic Contactor, 2NC/2NO, 24V DC, 4 P, Screw Clamp LP1K09008BD - main

IEC Magnetic Contactor, 2NC/2NO, 24V DC, 4 P, Screw Clamp

  • Mfr # LP1K09008BD

  • Zoro # G0849530

product price:  $111.69
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
2NC/2NO
Coil Voltage
24V DC
Number of Poles
4
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LP1K09008BD
Zoro #
G0849530
UPC #
785901832522
Country of Origin
France

Dimensions

Working Height
6561.68 ft
Overall Depth
57 mm
Overall Width
45 mm
Overall Height
58 mm

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
2NC/2NO
Coil Voltage
24V DC
Number of Poles
4
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
0
Standards
EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA
Series
LP1K
Application
Resistive Load
Tightening Torque
0.8 to 1.3 Nm
Operating Time
30 to 40 ms (Coil Energisation and NO Closing), 10 ms (Coil De-Energisation and NO Opening), 25 to 35 ms (Coil Energisation and NC Opening), 15 ms (Coil De-Energisation and NC Closing)
Impulse Withstand Voltage
8 kV
Control Circuit Voltage Limits
Operational: 0.8 to 1.15 Uc (at 50°C), Drop-Out: 0.1 to 0.75 Uc (at 50°C)
Rated Making Capacity
110 A (AC Power Circuit)
Environmental Attributes
Mercury Free, Toxic Heavy Metal Free
Fuse Amps
25 A
Overvoltage Category
CAT III
Rated Breaking Capacity
110 A @ 415V, 440V, 220 to 230V, 380 to 400 V; 80 A @ 500V; 70 A @ 660 to 690V
Fire Rating
UL 94 V1, NF F 16-101, NF F 16-102
Impedance
3 mOhm
Mechanical Durability
10 Mcycles
Net Weight
0.225 kg
Rated Insulation Volts
600/690V
Operating Speed
3600 cycles per hr
Full Load Current - Resistive
20 A
Full Load Current - Inductive
9:00 AM
Maximum Voltage Rating
690V AC
Conventional Free Air Thermal Current
20 A (at 50°C Power Circuit)
Mounting Style
Plate, Rail

Description

The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a resistive load application device with an auxiliary contact form of 2NC/2NO. It operates on a coil voltage of 24V DC and has control circuit voltage limits that are operational from 0.8 to 1.15 Uc (at 50°C) and drop-out from 0.1 to 0.75 Uc (at 50°C). The contactor, which is mercury-free and toxic heavy metal free, meets fire rating standards including UL94 V1, NF F16-101, and NF F16-102.

Key features include:

  • Full Load Amps: Inductive at 9 A; Resistive at 20 A
  • Impulse Withstand Voltage: Rated for operation within the specified impulse voltage range.
  • Mechanical Durability: Mechanical durability is rated for operation within the specified cycle count.
  • Mounting Options: Can be mounted on either plate or rail.
  • Number of Poles: Features four poles for electrical connection.
  • Operating Speed & Time: Operating speed and time are compatible within the specified ranges, subject to coil energisation/de-energisation and NO/NC closing/opening conditions.
  • Overvoltage Category & Rated Insulation Volts: Overvoltage category & rated insulation volts are in accordance with CAT III standards, compatibility may vary depending on specific usage circumstances.
  • Terminal Connection Type & Tightening Torque Range : Uses screw clamp as terminal connection type requiring tightening torque range between zero point eight to one point three Newton meter.
