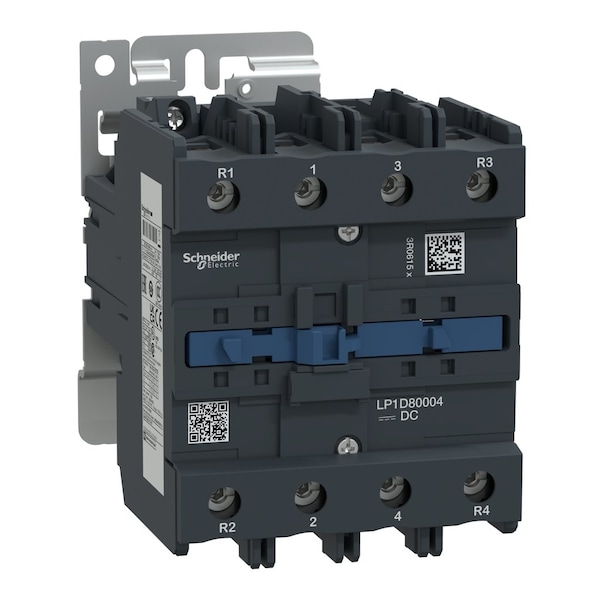

Schneider Electric IEC Magnetic Contactor, 4NO, 24V DC, 4 P, Non-Reversing, Screw Clamp LP1D80004BD - main
Shop SCHNEIDER ELECTRIC

IEC Magnetic Contactor, 4NO, 24V DC, 4 P, Non-Reversing, Screw Clamp

  • Mfr # LP1D80004BD

  • Zoro # G410080897

product price:  $680.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
4NO
Coil Voltage
24V DC
Number of Poles
4
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LP1D80004BD
Zoro #
G410080897
UPC #
3389110234312
Country of Origin
Czechia

Dimensions

Overall Depth
7.13 in
Overall Height
5 in
Overall Width
3.78 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
4NO
Coil Voltage
24V DC
Number of Poles
4
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
4
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
Series
TeSys Deca
IP Rating
IP20
Full Load Current - Resistive
200 A
Includes Auxiliary Contacts
Yes
Full Load Current - Inductive
80 A
Frequency
50 Hz
Mechanical Operating Durability
4,000,000
Embedded Surge Suppressor
No
Maximum Voltage Rating
690V AC
Resistance Properties
Fire Resistant
Electrical Operating Durability
800,000 (AC-1)
Contactor Style
IEC
Mounting Style
DIN Rail, Plate
Phase
Single

Description

The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a single-phase, non-reversing contactor with an IP20 rating. It operates on a coil voltage of 24V DC and has a maximum voltage rating of 690V AC. This device, which belongs to the TeSys Deca series, is designed for DIN Rail or Plate mounting styles. With its overall dimensions being 7.13 inches in depth, 5 inches in height, and 3.78 inches in width, it features fire-resistant properties.

Key Features:

  • Auxiliary Contact Form: The contactor includes four auxiliary contacts.
  • Electrical Operating Durability: The device has been tested for up to 800,000 operations under AC-1 conditions.
  • Full Load Amps/Current: The device is rated for a maximum inductive load of 150A and resistive load of 200A.
  • Mechanical Operating Durability: The device has been tested for up to four million cycles under standard conditions.
  • Standards Compliance: This product is designed in accordance with several standards including CSA C22.2 No14, EN60947-4-1/5-1 and IEC60947-4-/5-.
  • -Terminal Connection Type: The terminal connection type for this unit is Screw Clamp250.

    • Restrictions

    WARNING: Cancer For more information go to www.P65Warnings.ca.gov
