Shop SCHNEIDER ELECTRIC

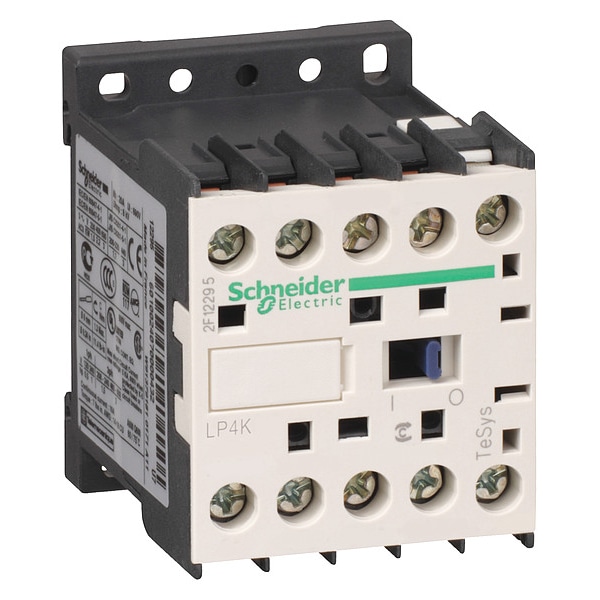

IEC Magnetic Contactor, No Auxiliary Contacts, 24V DC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LP4K0601BW3

  • Zoro # G0568849

product price:  $88.69
/ea

Key Features

Auxiliary Contact Form
1NC
Coil Voltage
24V DC
Number of Poles
3
Full Load Amps-Inductive
6 A
Reversing Capability
Non-Reversing
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LP4K0601BW3
Zoro #
G0568849
UPC #
785901641605
Country of Origin
France

Dimensions

Working Height
6561.68 ft
Overall Depth
2.24 in
Overall Height
2.28 in
Overall Width
1.77 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC
Coil Voltage
24V DC
Number of Poles
3
Full Load Amps-Inductive
6 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
1
Standards
CSA, UKCA, UL Listed
Reversing
No
Series
TeSys K
Frame / Series / Class / Code
TeSys
Enclosure NEMA Rating
No Enclosure
Net Weight
0.235 kg
Switching Current
5 mA (Signalling Circuit)
Switching Voltage
17 V (Signalling Circuit)
Impulse Withstand Voltage
8 kV
Impedance
3 mOhm
Rated Insulation Volts
600/690V
Environmental Attributes
Mercury Free, Toxic Heavy Metal Free
Rated Making Capacity
110 A
Features
Built-In Bi-Directional Peak Limiting Diode Suppressor
Operating Time
10 to 20 ms (Coil De-Energisation and NO Opening), 30 to 40 ms (Coil Energisation and NO Closing)
Fuse Amps
25 A (Power Circuit), 10 A (Signalling Circuit)
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Tightening Torque
0.8 to 1.3 Nm
Application
Motor Control
Operating Speed
3600 cycles per hr
Fire Rating
UL 94 V1, NF F 16-101, NF F 16-102
Control Circuit Voltage Limits
Operational: 0.7 to 1.30 Uc (at 50°C), Drop-Out: 0.1 to 0.7 Uc (at 50°C)
Rated Breaking Capacity
110 A @ 415V, 440V, 220 to 230V, 380 to 400 V; 80 A @ 500V; 70 A @ 660 to 690V
Mechanical Durability
30 Mcycles
Overvoltage Category
CAT III
Maximum Voltage Rating
690V AC
Minimum Operating Temperature
-13 Degrees F
Includes Auxiliary Contacts
Yes
Mechanical Operating Durability
30,000,000
Frequency
50/60 Hz
Full Load Current - Inductive
8.3 A
Contactor Style
IEC
NEMA Enclosure Rating
No Enclosure
Maximum Operating Temperature
122 Degrees F
Number of Normally Open Main Contacts
3
Embedded Surge Suppressor
Yes
Mounting Style
DIN Rail, Plate
Resistance Properties
Insulation Resistant
Conventional Free Air Thermal Current
20 A (at 50°C Power Circuit), 10 A (at 50°C Signalling Circuit)

Description

Schneider Electric IEC Magnetic Contactor, 3-pole, non-reversing, with a 24 V DC coil and screw-clamp terminals. It is an IEC-style magnetic switch rated for use in motor-control circuit applications within specified parameters. The unit has no auxiliary contacts, includes a surge suppression component (if applicable), and mounts on DIN rail or plate as part of the Te Sys K family, with a 690V AC rating and 50/60 Hz operation.

Coil voltage: 24 V DC

  • Poles and main contacts: 3 poles; 3 normally open main contacts (3 NO)
  • Reversing: Non-Reversing
  • Series/frame: TeSys K (TeSys)
  • Mounting and terminals: DIN Rail, Plate; Screw Clamp
  • Voltage/frequency: 690V AC rated voltage; 50/60 Hz
  • Embedded features: Yes, includes a surge suppression component (if applicable)
  • Enclosure: open device; intended for installation within appropriate enclosures as per safety standards
  • Fire rating: complies with the listed fire safety standards (note: does not imply certification or guarantee of fire resistance)
  • Impulse withstand voltage: rated for impulse withstand voltage up to 8 kV under specified testing conditions
  • Insulation/ratings: rated for insulation at voltages up to 690V; insulation resistance measured at >10 MΩ under test conditions
  • Electrical ratings: designed to operate within specified electrical load ratings under normal operating conditions
  • Dimensions and weight: Depth 2.24 in; Height 2.28 in; Width 1.77 in; Net weight 0.235 kg
  • Other ratings: 50/60 Hz; CAT III overvoltage category; Operating temperatures: -13°F to 122°F
