  11. IEC Overload Relay, 1NC/1NO, 16 A Min current, 24 A Max current, 690V AC

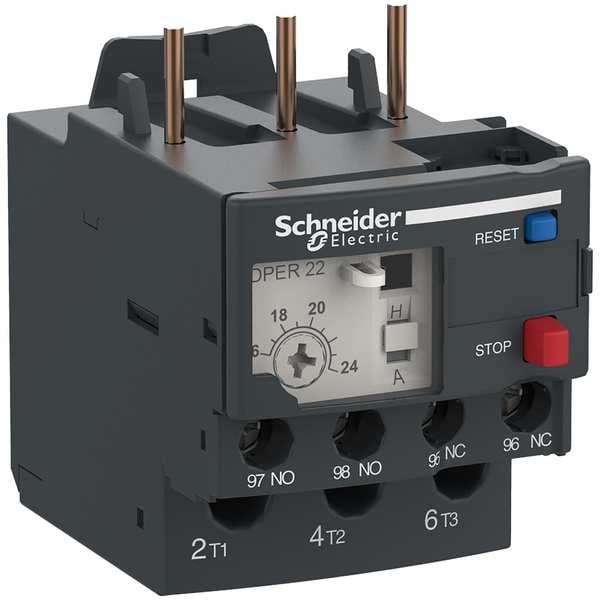

Schneider Electric IEC Overload Relay, 1NC/1NO, 16 A Min current, 24 A Max current, 690V AC DPER22 - main

IEC Overload Relay, 1NC/1NO, 16 A Min current, 24 A Max current, 690V AC

  • Mfr # DPER22

  • Zoro # G703481080

product price: $28.75
/ea

Key Features

Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
16 A
Maximum Overload Relay Current Setting
24 A
Trip Class
10
Overload Protection Type
Thermal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DPER22
Zoro #
G703481080
UPC #
-
Country of Origin
France

Dimensions

Width
45 mm
Depth
70 mm
Height
66 mm
Overall Height - Relay
2.6 in
Body Height - Relay
2.6 in
Overall Height
2.6 in
Body Height
2.6 in

Details

Item
IEC Overload Relay
Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
16 A
Maximum Overload Relay Current Setting
24 A
Trip Class
10
Overload Protection Type
Thermal
Maximum Voltage Rating
690V AC
Standards
cUL, EN/IEC 60947-4-1, EN/IEC 60947-5-1, REACH, RoHS, UL 60947-4-1, UL 60947-5-1
Kit Required for Retrofit Mtg.
LAD9R1
Number of Poles
3
Features
400 Hz Power Circuit IEC 60947-4-1, 5 A Signalling Circuit, 690 V AC
Trip Class - Overload
10
Separate Mounting
Yes, Additional Items Needed
Use With - Contactors and Starters
Contactor DPE09-38
Frame / Series / Class / Code
Class 10, Easy TeSys DPER
Sensing Method
Thermal
Protective Treatment
TH IEC 60068
Phase Failure Sensitivity
tripping current 130 % of Ir on two phase, the last one at 0
Vibration Resistance
6 gn on plate IEC 60068-2-6
Network Type
DC || AC
Range
Easy TeSys
Tripping Threshold
1.14 +/- 0.06 Ir IEC 60947-4-1
Product Or Component Type
thermal overload relay
Thermal Protection Adjustment Range
16-24 A
Product Certifications
cUL
Tightening Torque
control circuit 1.7 N.m screw clamp terminals || power circuit 2.5 N.m screw clamp terminals
Network Frequency
0 to 400 Hz
Connections - Terminals
control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end || power circuit screw clamp terminals 1 2.5-10 mm² flexible without cable end || power circuit screw clamp terminals 1 1.5-6 mm² flexible with cable end || power circuit screw clamp terminals 1 2.5-10 mm² solid without cable end
Device Short Name
DPER
Shock Resistance
15 gn 11 ms IEC 60068-2-7
Permissible Current
1.5 A 240 V AC-15 signalling circuit || 0.1 A 250 V DC-13 signalling circuit
Surge Withstand
6 kV IEC 60801-5
Ambient Air Temperature For Storage
-60-70°C
Dielectric Strength
1.89 kV 50 Hz IEC 60947-1
Product Compatibility
contactor DPE09-38
Protection Type
BS fuse 5 A - control circuit || GB2 circuit breaker 5 A - control circuit || gG fuse 5 A - control circuit
Thermal Overload Class
class 10 IEC 60947-4-1
Control Type
Red push-button stop || Blue push-button reset
Ambient Air Temperature For Operation
-20-60°C without derating IEC 60947-4-1
Relay Application
overload protection
Product Name
Easy TeSys DPER
Mounting Style
Direct To Contactor
Compatible with Series
Easy TeSys
Terminal Connection Type
Screw Clamp Terminals
Minimum Operating Temperature
-4 Degrees F
Reset Type
Auto, Manual
Maximum Operating Temperature
140 Degrees F
Phase
Three
Relay Style
IEC
IP Rating
IP20
Conventional Free Air Thermal Current
5 A signalling circuit
Rated Insulation Voltage
power circuit 600 V cUL || power circuit 690 V IEC 60947-4-1
Rated Operational Voltage
690 V AC 0 to 400 Hz power circuit IEC 60947-4-1

Description

IEC Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 24 A, Minimum Overload Relay Current Setting 16 A, Trip Class 10, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Reset Type Auto, Manual, Mounting Style Direct To Contactor, Terminal Connection Type Screw Clamp Terminals, Compatible with Series Easy TeSys, Relay Style IEC, Overload Protection Type Thermal, Phase Three
