  15. Illuminated Push Button Operator, 22 mm, Yellow

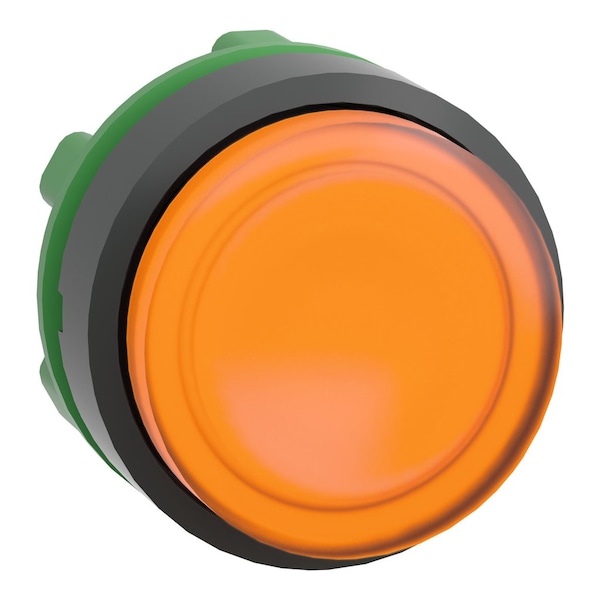

Schneider Electric Illuminated Push Button Operator, 22 mm, Yellow ZB5AH53 - main

Illuminated Push Button Operator, 22 mm, Yellow

  • Mfr # ZB5AH53

  • Zoro # G1190831

product price: $18.89
/ea

Key Features

Push Button Style
Extended
Action
Maintained
Maintained Action Release
Push/Push
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AH53
Zoro #
G1190831
UPC #
785901386551
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Overall Width
1.14 in
Overall Height
1.14 in
Manufacturer Warranty Length
18 mo
Overall Depth
1.3 in
Mounting Diameter
22 mm
Cad Overall Width
29 mm
Cad Overall Depth
33 mm
Cad Overall Height
29 mm

Details

Item
Push Button Operator
Push Button Style
Extended
Action
Maintained
Maintained Action Release
Push/Push
Operator Illumination
Illuminated
Head Color
Orange
Head Material
Plastic
Standards
Bureau Veritas, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
NEMA Rating
13, 4X
Color
Yellow
Lamp Type
No Lamp Module Included
Basic Material
Plastic
IP Rating
IP66
Lamp Voltage
Dependent on Module Used
Lamp Module Voltage
Module Not Included
Type of Operator
Extended Button
Series
XB5
Features
Double Head
Number of Operators
1
Operating Temperature - Maximum
158 Degrees F
Product Type
Push Button Operators
Lamp Module Type
No Lamp Module Included
Bezel Material
Plastic
Operator Material
Plastic
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Operating Temperature - Minimum
-13 Degrees F
Hazardous Location Specification
Not Rated
Number of Indicator Lights
1
Product Or Component Type
head for illuminated push-button
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Device Presentation
basic element
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Electrical Composition Code
M5 2 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
Ip Degree Of Protection
IP66 IEC 60529
Bezel
Plastic
Shape Of Signaling Unit Head
round
Station Name
XALD 1 to 5 cut-outs || XALK 2 to 5 cut-outs
Mechanical Durability
5000000 cycles
Product Certifications
GL || DNV || CSA || BV || LROS (Lloyds register of shipping) || UL Listed
Ik Degree Of Protection
IK05 IEC 50102
Electrical Shock Protection Class
class II IEC 60536
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Protective Treatment
TH
Head Type
standard
Ambient Air Temperature For Storage
-40-70°C
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Operation
-25-70°C
Device Short Name
ZB5
Operator Profile
orange projecting, unmarked
Product Compatibility
universal LED

Description

Extended Push Button, 22 mm, Maintained, Type of Operator Extended Button, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color Yellow, NEMA Rating 13, 4X, IP Rating IP66, Legend Not Applicable, Standards Bureau Veritas, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508, Features Double Head
