  13. Interface plug-in relay, 16 A, 1 CO, 24, 24V AC Coil Volts, 1 C/O

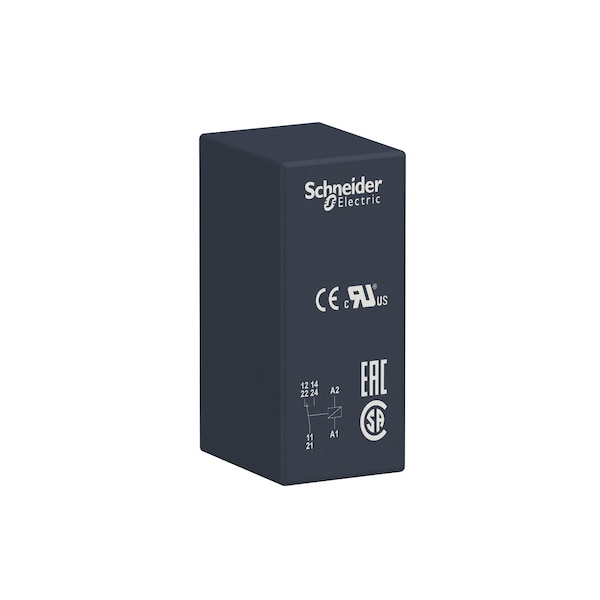

Schneider Electric Interface plug-in relay, 16 A, 1 CO, 24, 24V AC Coil Volts, 1 C/O RSB1A160B7 - main

Interface plug-in relay, 16 A, 1 CO, 24, 24V AC Coil Volts, 1 C/O

  • Mfr # RSB1A160B7

  • Zoro # G100905059

product price: $5.95
/ea
Sold in multiples of 10 for $59.50

Key Features

Electrical Connection
PCB
Coil Voltage
24V AC
Current Rating
16 A
Contact Rating (AC)
16 A @ 250V AC
Contact Rating (DC)
16 A @ 28V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RSB1A160B7
Zoro #
G100905059
UPC #
-
Country of Origin
Austria

Details

Item
Plug-In Relay
Electrical Connection
PCB
Coil Voltage
24V AC
Current Rating
16 A
Contact Rating (AC)
16 A @ 250V AC
Contact Rating (DC)
16 A @ 28V DC
Standards
UL 508; EN/IEC 61810-1 C22.2 No 14; CE; EAC
Power Consumption - Relay
0.75 VA
Contact Material
Silver Alloy (AgNi)
Protection Category
RT I
Switching Power
Max 4000 VA/448 W; Min 120 mW 10 mA, 12 V
Dielectric Strength
1000 V AC between contacts; 2500 V AC between poles; 5000 V AC between coil and contact
Pin Shape
flat (PCB type)
Coil Resistance
368 Ohm
Operating Time
20 ms operating || 20 ms reset
Series
RSB; interface relay
Switching Voltage
12/300 V DC
Operating Temp. Range
-40-70°C AC)
Maximum Switching Voltage
300 V DC IEC
Minimum Switching Capacity
120 mW 10 mA, 12 V
Control Type
without push-button
Marking
CE
Operating Rate
<= 600 cycles/hour under load, <= 18000 cycles/hour no-load
Minimum Switching Current
10 mA
Load Current
16 A 250 V AC, 16 A 28 V DC
Shock Resistance
10 gn 11 ms) not operating IEC 60068-2-27, 5 gn 11 ms) in operation IEC 60068-2-27
Contact Operation
standard
Ambient Air Temperature For Storage
-40-85°C
[Ithe] Conventional Enclosed Thermal Current
16 A -40-40°C
Ambient Air Temperature For Operation
-40-70°C AC)
Series Name
interface relay
Operating Position
any position
Device Presentation
complete product
Test Levels
level A group mounting
Average Resistance
368 Ohm AC 20°C +/- 10 %
Electrical Durability
100000 cycles, 16 A at 250 V, AC-1 NO, 100000 cycles, 8 A at 250 V, AC-1 NC
Mechanical Durability
10000000 cycles
[Ue] Rated Operational Voltage
19.2...36 V AC 50/60 Hz
Average Coil Consumption
0.75 VA AC
Vibration Resistance
+/- 1 mm 10-55 Hz)IEC 60068-2-6
[Ui] Rated Insulation Voltage
400 V IEC 60947
Device Short Name
RSB
Ip Degree of Protection
IP40 conforming to IEC 60529
Drop-Out Voltage Threshold
>= 0.15 Uc AC
Maximum Switching Capacity
4000 VA/448 W
[Uimp] Rated Impulse Withstand Voltage
3.6 kV IEC 61000-4-5
Status Indicator
No Indicator

Description

Interface plug-in relay,16 A,1 CO,24
