  15. Lamp Module and Contact Block, 22mm, 1NC

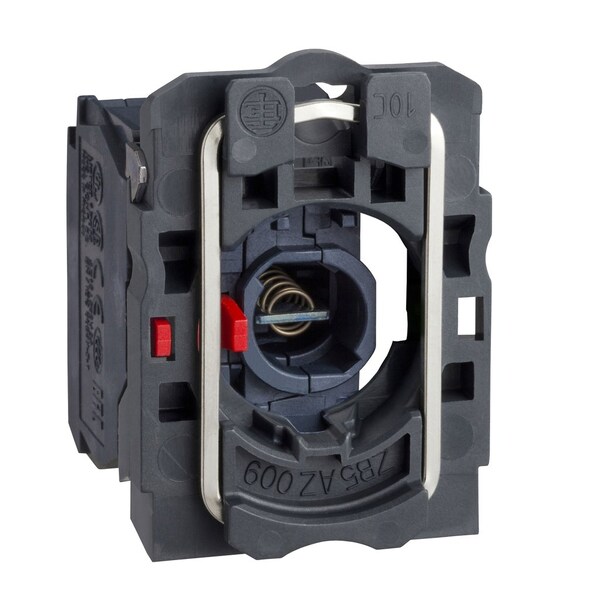

Schneider Electric Lamp Module and Contact Block, 22mm, 1NC ZB5AW062 - main

Lamp Module and Contact Block, 22mm, 1NC

  • Mfr # ZB5AW062

  • Zoro # G2603404

product price: $58.55
/ea

Key Features

Voltage
250V
Color
Clear
Lamp Type
Incandescent
Terminal Connection
Screw Clamp terminals
Contact Form
1NC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AW062
Zoro #
G2603404
UPC #
785901373308
Country of Origin
France

Dimensions

Size
22 mm
Compatible Panel Cutout Diameter
22 mm

Details

Item
Lamp Module and Contact Block
Voltage
250V
Color
Clear
Lamp Type
Incandescent
Terminal Connection
Screw Clamp terminals
Contact Form
1NC
Replacement Lamp
B9
Lamp Module Voltage
Less Than or Equal To 250V AC/DC
Lamp Module Type
Full Voltage
Basic Material
Plastic
IP Rating
IP20
Lamp Voltage
250V AC/DC
NEMA Rating
1, 12, 13, 2, 3, 4, 4X
For Use With
B9 Modules
NEMA Contact Rating Designation
A600, Q600
Contact Rating
10 A @ 600V AC/DC
Standards
BV, CSA, DNV, GL, LROS, RoHS, UL Listed
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Compatible Product Type
B9 Modules
Includes Bulb
No Bulb Included
Terminal Connection Type
Screw Clamp
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Compatible with Series
XB5
AC Contact Rating
1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V
Bulb Base
BA 9s
Contacts Usage
Standard
Rated Impulse Withstand Voltage
6 kV IEC 60947-1
Ambient Air Temperature For Storage
-40 to 158°F (-40 to 70°C)
Light Block Supply
Direct Less than 2.4 W
Rated Supply Voltage
Less than or Equal to 250 V
Head Type
Standard
Contact Operation
Slow-break
Positive Opening
With IEC 60947-5-1 appendix K
Device Presentation
Basic sub-assemblies
Light Source
Bulb not included
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Conventional Free Air Thermal Current
10 A IEC 60947-5-1
Operating Force
2 N NC changing electrical state
Electrical Reliability
Less than 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4; Less than 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Type
Steady Signal
Short-Circuit Protection
10 A cartridge fuse gG IEC 60947-5-1
Terminals Description ISO n°1
(11-12)NC
Product Or Component Type
Complete body/contact assembly and light block
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27; 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Protective Treatment
TH
Electrical Shock Protection Class
Class II IEC 60536
Rated Operational Current
3 A 240 V, AC-15, A600 IEC 60947-5-1; 6 A 120 V, AC-15, A600 IEC 60947-5-1; 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1; 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1; 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1; 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Operating Travel
0.06 in (1.5 mm) NC changing electrical state); 0.17 in (4.3 mm) total travel)
Mechanical Durability
5000000 cycles
Shape Of Screw Head
Cross Philips no 1; Cross pozidriv No 1; Slotted flat 4 mm; Slotted flat 5.5 mm
Tightening Torque
7.08 to 10.62 lbf.in (0.8 to 1.2 N.m) IEC 60947-1
Signalling Type
Steady
Contacts Material
Silver alloy (Ag/Ni)
Rated Insulation Voltage
600 V 3)IEC 60947-1
Contact Type and Composition
1 NC
Ambient Air Temperature For Operation
-40 to 158°F (-40 to 70°C)
Product Certifications
GL; BV; LROS (Lloyds register of shipping); UL Listed; CSA; DNV
Connections - Terminals
Screw clamp terminals, Less than or Equal to 2 x 1.5 mm² with cable end IEC 60947-1; Screw clamp terminals, Greater than or Equal to 1 x 0.22 mm² without cable end IEC 60947-1
Vibration Resistance
5 gn 2 to 500 Hz)IEC 60068-2-6

Description

Lamp Module and Contact Block, Color Clear, Contact Form 1NC, For Use With B9 Modules, Lamp Module Type Full Voltage, Lamp Module Voltage Less Than or Equal To 250V AC/DC, Lamp Type Incandescent, 22 mm, Lamp Voltage 250V AC/DC, Replacement Lamp B9, Contact Rating 10 A @ 600V AC/DC, NEMA Contact Rating Designation A600, Q600, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating IP20, Standards BV, CSA, DNV, GL, LROS, RoHS, UL Listed
