  15. Non-Illuminated Multihead Operator, 22 mm, Rectangular

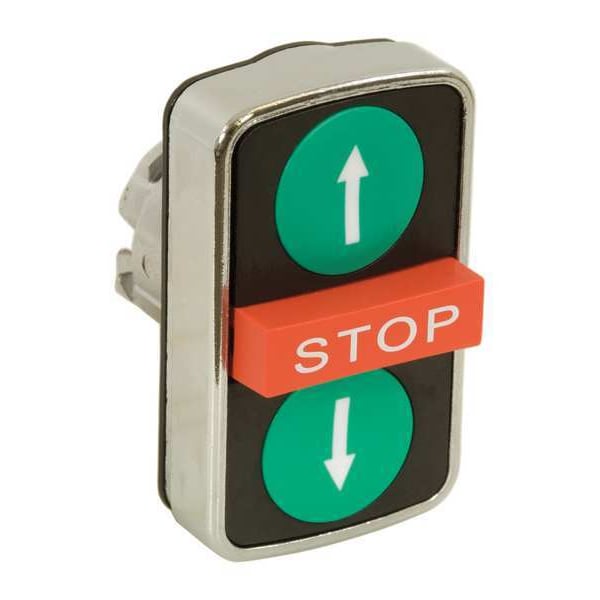

Schneider Electric Non-Illuminated Multihead Operator, 22 mm, Rectangular ZB4BA73134 - main

Non-Illuminated Multihead Operator, 22 mm, Rectangular

  • Mfr # ZB4BA73134

  • Zoro # G2363177

product price: $60.99
/ea

Key Features

Push Button Style
Extended
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
Head Color
(1) Green; (1) Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BA73134
Zoro #
G2363177
UPC #
-
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Mounting Diameter
22 mm
Manufacturer Warranty Length
18 mo
Overall Depth
1.38 in
Overall Height
1.97 in
Overall Width
1.18 in

Details

Item
Push Button Operator
Push Button Style
Extended
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
(1) Green; (1) Red
Head Material
Metal
Standards
Bureau Veritas, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
NEMA Rating
13, 4X
IP Rating
IP66, IP69K
Legend/Background Color
White/Green, White/Red
Includes
Up/Down Arrows Marking
Shape
Rectangular
Number of Heads
3
Legend
Stop
Type of Operator
(1) Extended Button, (2) Flush Buttons
Series
XB4
Bezel Material
Metal
Number of Operators
3
Legend Color
White
Ambient Air Temperature For Operation
-25-70°C
Electrical Shock Protection Class
class I IEC 60536
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Product Certifications
LROS (Lloyds register of shipping) || DNV || CSA || UL Listed || BV || GL
Electrical Composition Code
C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting
Device Short Name
ZB4
Product Or Component Type
head for triple-headed push-button
Ip Degree Of Protection
IP69 IEC 60529
Colour Of Marking
white marking when green, red or black caps || black marking when white caps
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Mechanical Durability
1000000 cycles
Operators Description
green ''up arrow'' - green ''down arrow'' - red ''STOP''
Operator Profile
2 flush - 1 central projecting STOP push-buttons, red projecting, STOP white) || green flush, down arrow white) || green flush, up arrow white)
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Head Type
standard
Shape Of Signaling Unit Head
rectangular
Device Presentation
basic element
Ik Degree Of Protection
IK06 IEC 50102
Ambient Air Temperature For Storage
-40-70°C
Legend Background Color
Green/Red
Operating Temperature - Minimum
-13 Degrees F
Hazardous Location Specification
Not Rated
Operating Temperature - Maximum
158 Degrees F
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operator Material
Metal
Product Type
Multihead Operators
Number of Indicator Lights
0
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X

Description

Multihead Operator, 22 mm, Momentary/Momentary/Momentary, Type of Operator (1) Extended Button, (2) Flush Buttons, Head Material Metal, Bezel Material Metal, Color Green/Red, NEMA Rating 13, 4X, IP Rating IP66, IP69K, Legend Stop, Legend/Background Color White/Green, White/Red
