  15. Pendant Enclosure, 22mm, 2 Holes, IP65

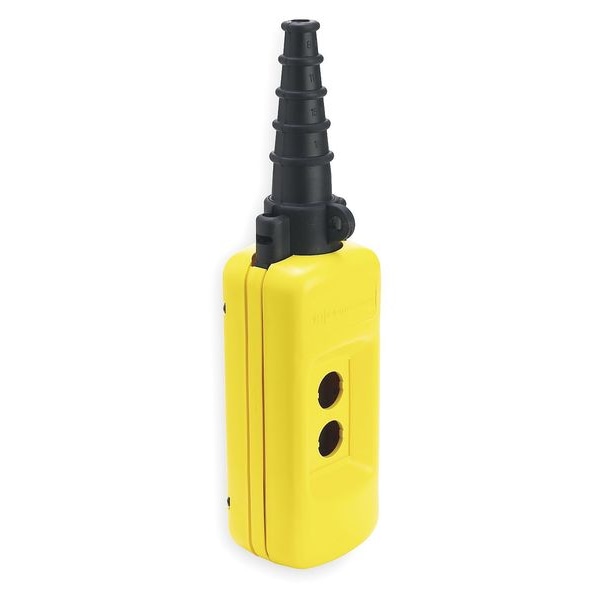

Schneider Electric Pendant Enclosure, 22mm, 2 Holes, IP65 XACA02H7 - main

Pendant Enclosure, 22mm, 2 Holes, IP65

  • Mfr # XACA02H7

  • Zoro # G0907654

product price: $160.99
/ea
Free Shipping & Returns

Key Features

Type of Operator
double insulated
Color
Yellow
NEMA Rating
4, 4X
Standards
CSA, EN/IEC, IP65, RoHS, UL Listed
Material
Plastic
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XACA02H7
Zoro #
G0907654
UPC #
785901803416
Country of Origin
Czechia

Dimensions

Hole Size
22 mm
Rubber Sleeve Cable Entry Size - Maximum
1.02 in
Rubber Sleeve Cable Entry Size - Minimum
0.31 in
Compatible Panel Cutout Diameter
22 mm

Details

Item
Pendant Enclosure
Type of Operator
double insulated
Color
Yellow
NEMA Rating
4, 4X
Standards
CSA, EN/IEC, IP65, RoHS, UL Listed
Material
Plastic
Cable Entry
0.31 in to 1.02 in
Includes
Cable Sleeve
Number of Holes
2
Enclosure Material
polypropylene
IP Rating
IP65
Operator Color
yellow
Product Certifications
GOST; CCC; CSA; UL
Ambient Air Temperature For Operation
-13 to 158°F (-25 to 70°C)
Guard Rail
Without
Protective Treatment
TH
Mechanical Durability
1000000 cycles
Shock Resistance
100 gn IEC 60068-2-27
Overvoltage Category
Class II IEC 61140
Product Or Component Type
Pendant control station
Enclosure Type
Empty enclosure
Vertical Operator Cut-Out Centre
1.18 in (30 mm)
Ambient Air Temperature For Storage
-40 to 158°F (-40 to 70°C)
Electrical Circuit Type
Control circuit
Number Of Cut-Out
2 cut-outs
IK Degree Of Protection
IK08 EN 50102
Vibration Resistance
15 gn 10 to 500 Hz)IEC 60068-2-6
Cable Entry Type
Rubber Sleeve
NEMA Enclosure Rating
1, 4, 4X, 5
Compatible with Series
XAC
Compatible with Brand
Schneider

Description

Pendant Enclosure, Number of Holes 2, Cable Entry 0.31 in to 1.02 in, NEMA Rating 4, 4X, Color Yellow, Hole Size 22 mm, Material Plastic, Includes Cable Sleeve, Standards CSA, EN/IEC, IP65, RoHS, UL Listed
