  15. Pilot light, Harmony XB5, grey plastic, white, 22mm, universal LED, plain lens, 230.240V AC

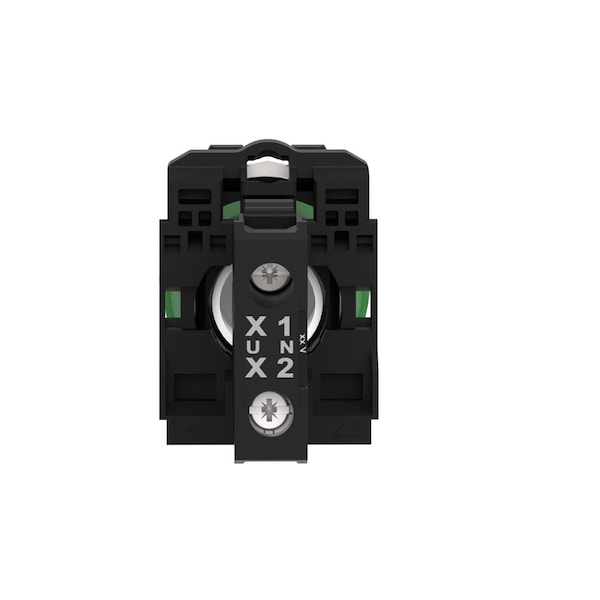

Schneider Electric Pilot light, Harmony XB5, grey plastic, white, 22mm, universal LED, plain lens, 230.240V AC XB5AVM1 - main

Pilot light, Harmony XB5, grey plastic, white, 22mm, universal LED, plain lens, 230.240V AC

  • Mfr # XB5AVM1

  • Zoro # G7654773

product price: $59.35
/ea

Key Features

NEMA Rating
NEMA 13 || NEMA 4X
Housing Color
white
Standards
CSA || UL Listed
Voltage
250 V
Operator Color
white
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB5AVM1
Zoro #
G7654773
UPC #
-
Country of Origin
France

Dimensions

Width
30 mm
Height
42 mm
Depth
54 mm
Mounting Diameter
22.5 mm

Details

Item
White Pilot Light 240V
NEMA Rating
NEMA 13 || NEMA 4X
Housing Color
white
Standards
CSA || UL Listed
Voltage
250 V
Operator Color
white
IP Rating
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653
Terminal Connection
screw clamp terminal
Lamp Type
universal LED
Header
standard
Vibration Resistance
5 gn 12-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage
-40-70°C
Electromagnetic Compatibility
electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2, electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2, electromagnetic emission class B conforming to IEC 55011
Range of Product
Harmony XB5
Shock Resistance
50 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Supply Voltage Limits
195-264 V AC
[Ui] Rated Insulation Voltage
250 V 3)IEC 60947-1
Operator Additional Information
with plain lens
Protective Treatment
TH
Bulb Base
integral LED
[Us] Rated Supply Voltage
230...240 V AC 50/60 Hz
Resistance To Fast Transients
2 kV IEC 61000-4-4
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Terminals Description Iso N°1
(X1-X2)PL
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Device Short Name
XB5
Compatibility Code
XB5
Surge Withstand
1 kV IEC 61000-4-5
Current Consumption
14 mA
Bezel Material
dark grey plastic
Fixing Collar Material
plastic
Device Presentation
complete product
Service Life
100000 h at rated voltage and 25°C
[Uimp] Rated Impulse Withstand Voltage
4 kV IEC 60947-1
Gcr Bridge
XB5AVCUST05
Overvoltage Category
class II IEC 60536
Shape of Signaling Unit Head
round
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
Product or Component Type
pilot light
Ambient Air Temperature For Operation
-40-70°C
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
Signalling Type
steady
Electromagnetic Emission
class B IEC 55011
Ik Degree of Protection
IK05 conforming to IEC 50102

Description

White Pilot Light 240V
