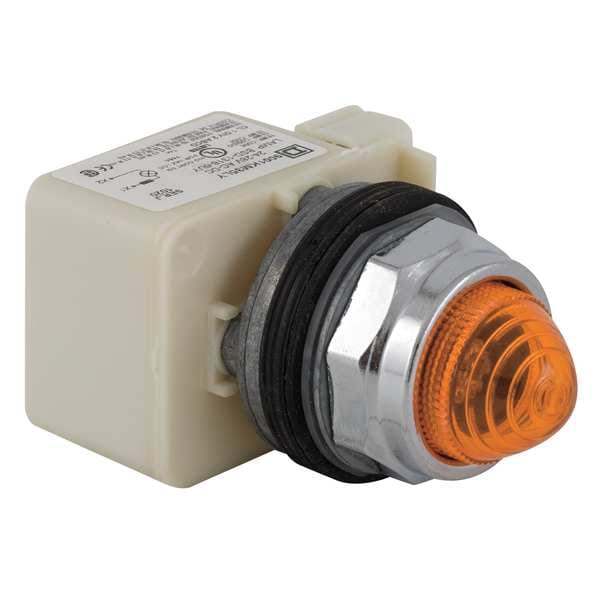

Schneider Electric Pilot Light, LED, 24V, 30mm, Chrome, Amber 9001KP35LYA9 - main

Pilot Light, LED, 24V, 30mm, Chrome, Amber

  • Mfr # 9001KP35LYA9

  • Zoro # G1955886

product price: $145.99
/ea
Free Shipping & Returns

Key Features

Voltage
24V AC/DC
Color
Amber
Lamp Type
LED
Shape
Round
Terminal Connection
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KP35LYA9
Zoro #
G1955886
UPC #
785901562306
Country of Origin
Mexico

Dimensions

Size
30 mm
Mounting Diameter
1.18 in (30 mm)
Overall Depth
1.65 in
Panel Cutout Diameter
30 mm
Overall Height
2.76 in
Overall Width
2.13 in
Manufacturer Warranty Length
18 mo

Details

Item
Pilot Light
Voltage
24V AC/DC
Color
Amber
Lamp Type
LED
Shape
Round
Terminal Connection
Screw Clamp
Lens Material
Polycarbonate
Bezel
Metal
Lens Type
Domed
Lamp Module Type
Full Voltage
Basic Material
Metal
Standards
REACH, RoHS, UL 508, WEEE
Body Material
Zinc Die Cast
Lamp Voltage
24V AC/DC
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 6
Includes
Light Module and LED Lamp
IP Rating
IP66
Rated Supply Voltage
24 to 28 V AC/DC
Rated Impulse Withstand Voltage
2.5 kV IEC 60947-1
Light Source Color
Yellow
NEMA Degree Of Protection
NEMA 1; NEMA 12; NEMA 13; NEMA 2; NEMA 3; NEMA 3R; NEMA 4; NEMA 6
IP Degree Of Protection
IP66 IEC 60529
Shock Resistance
50 gn IEC 60068-2-27
Rated Insulation Voltage
250 V 2)IEC 60947-1
Light Source
Yellow LED
Ambient Air Temperature For Storage
-40 to 158°F (-40 to 70°C)
Product Or Component Type
Pilot light
Connections - Terminals
Screw clamp terminals, 1 x 0.22 to 2 x 1.5 mm² IEC 60947-1
Vibration Resistance
7 gn 2 to 500 Hz)IEC 60068-2-6
Device Presentation
Complete product
Light Block Supply
Direct 24 to 28 V AC/DC
Operating Position
Any position
Bulb Base
BA 9s
Overvoltage Category
Class II IEC 61140
Product Certifications
NEMA; UL 508
Conventional Free Air Thermal Current
10 A
Tightening Torque
7.08 lbf.in (0.8 N.m) IEC 60947-1
Protective Treatment
TC
Ambient Air Temperature For Operation
-13 to 158°F (-25 to 70°C)
Shape Of Screw Head
Cross slotted
Short-Circuit Protection
10 A cartridge fuse IEC 60947-5-1
Lens Color
Amber
Body Finish
Chrome Plated
Series
9001K
Lamp Voltage - Maximum
28 V AC/DC
Includes Push-To-Test
No Push-To-Test Included
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
Voltage Rating - Maximum
28 V AC/DC
Includes Lens
Lens Included
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 6
Lamp Color
Amber
Includes Lamp Module
Lamp Module Included

Description

Pilot Light, Voltage 24V AC/DC, Color Amber, Lamp Type LED, Shape Round, Terminal Connection Screw Clamp, Lens Material Polycarbonate, 30 mm, Lamp Module Type Full Voltage, Basic Material Metal, Lens Type Domed, Lamp Voltage 24V AC/DC, Replacement Lamps N/A, Body Material Zinc Die Cast, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Includes Light Module and LED Lamp, Standards REACH, RoHS, UL 508, WEEE
