  13. Plug-In, Enclosed Power Relay, Square, 25 A, 6, Quick-Connect

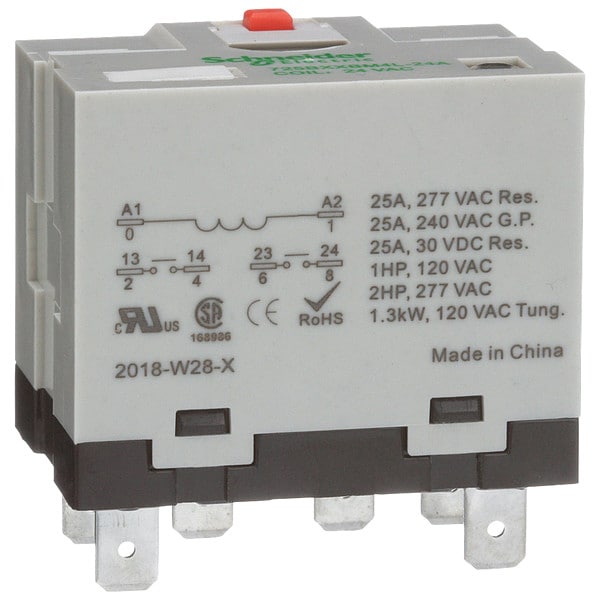

Schneider Electric Plug-In, Enclosed Power Relay, Square, 25 A, 6, Quick-Connect 725BXXBM4L-24A - main

Plug-In, Enclosed Power Relay, Square, 25 A, 6, Quick-Connect

  • Mfr # 725BXXBM4L-24A

  • Zoro # G0617723

product price: $15.69
/ea

Key Features

Mounting Style
Plug-In
Electrical Connection
Quick-Connect
Base Shape
Square
Number of Pins
6
Coil Voltage
24V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
725BXXBM4L-24A
Zoro #
G0617723
UPC #
-
Country of Origin
China

Dimensions

Dimensions
2.00"H, 1.97"W, 1.30"D
Overall Height - Relay
2.0 in
Overall Depth
2.02 in
Flat Pin Width
0.25 in
Body Width
1.97 in
Body Height
1.3 in
Body Depth
1.07 in
Width
1.30 in (33.1 mm)
Depth
2.09 in (53.05 mm)
Height
1.97 in (50 mm)
Body Width - Relay
1.97 in
Body Height - Relay
2.0 in
Body Depth - Relay
1.3 in

Details

Item
Enclosed Power Relay
Mounting Style
Plug-In
Electrical Connection
Quick-Connect
Base Shape
Square
Number of Pins
6
Coil Voltage
24V AC
Current Rating
25 A
Contact Form
DPST-NO
Contact Rating (AC)
25 A @ 240/277V
Contact Rating (DC)
25 A @ 28/30V
Pins
6
Contact Material
Silver Alloy
AC Contact Rating - Relay
25A @ 277V
Item - Relay
Enclosed Power Relay
Mounting
Plug-In Socket
Coil Volts
24V AC
DC Contact Rating - Relay
25A @ 28V
Contact Amp Rating (Resistive)
25A @ 277VAC/30VDC
Standards
CE Certified, CSA Certified, IEC 60947-1, UL60947-4-1A
Contact Form - Relay
DPST-NO
Coil Rating
2.5VA, 1.9W
Number of Poles
2
HP @ 120V
1
Power Consumption - Relay
2.5 VA
HP @ 240V
2
Mounting - Relay
Plug In
Electrical Connection - Power Relay
1/4 in Tab Terminal
Hz - Electrical
50/60 Hz
Number of Pins - Relay
6
Hz
50/60
Features
2hp @ 277V AC, LED & Button
Response Time
30 msec
Maximum Operating Temperature
131 Degrees F
Status Indicator
LED Indicator, Mechanical Flag
Dielectric Strength
2,000V AC Between Poles, 4,000V AC Between Coil and Contact
Socket Code
M
Frequency
50/60 Hz
Electrical Operating Durability
100,000
Power Consumption
2.5 VA
Series
Harmony(TM) 725 Power Series
IP Rating
IP40
Minimum Switching Current
100 mA
Coil Resistance
275 ohm
Base Type
Socket
Mechanical Operating Durability
5,000,000
Minimum Operating Temperature
-4 Degrees F
Maximum Switching Voltage
240V, 277V
Input Voltage
20.4 to 26.4V AC
Horsepower @ 120V AC
1 hp
Weight
4.23 oz
Motor Rated
Yes
Horsepower @ 240V AC
2 hp
Operating Current
25 A at 240V AC (General Purpose), 25 A at 240V AC (Resistive Load), 25 A at 277V AC (Resistive Load), 25 A at 28V DC (Resistive Load), 25 A at 30V DC (Resistive Load)
Push-To-Test Method
Lockable
Nominal input voltage
20.4...26.4 V AC 50/60 Hz
[Uc] control circuit voltage
24 V
Local Signalling
LED indicator; Flag
Contact Composition
2 NO
[Ie] rated operational current
25 A at 277 V AC (on resistive load) conforming to UL; 25 A at 240 V AC (general purpose) conforming to UL; 25 A at 30 V DC (on resistive load) conforming to UL; 25 A at 240 V AC (on resistive load) conforming to IEC; 25 A at 28 V DC (on resistive load) conforming to IEC
Ambient Air Temperature for Storage
-67 to 212°F (-55 to 100°C)
Electrical Durability
100000 cycles resistive IEC
Rated power in W
1.3 kW 120 V tungsten
Contacts Material
Silver alloy contacts
Connections - terminals
Quick-connect terminal strips 6.35 x 0.8 mm
Product Type
Plug-in relay
Rated Power in HP
1 hp 120 V AC; 2 hp 277 V AC
Control Type
Lockable test button
Average Coil Consumption
2.50 VA
Product Certifications
UL; CSA; CE
Product Range
Harmony Electromechanical Relays
Series name
Power
ambient temperature range - operational
-4 to 131°F (-20 to 55°C)
Mechanical Durability
5000000 cycles
Type
Power

Description

Enclosed Power Relay, Base Shape Square, Coil Voltage 24V AC, Contact Form DPST-NO, Current Rating 25 A, Electrical Connection Quick-Connect, Flat Pin Width 0.25 in, Number of Pins 6, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 25 A @ 240/277V, Contact Rating (DC) 25 A @ 28/30V, Horsepower @ 120V AC 1 hp, Horsepower @ 240V AC 2 hp, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 1.07 in, Body Height 1.3 in, Body Width 1.97 in, Coil Resistance 275 ohm
