  13. Plug-In, General Purpose Relay, Square, 10 A, 8 Pins, Blade Terminal

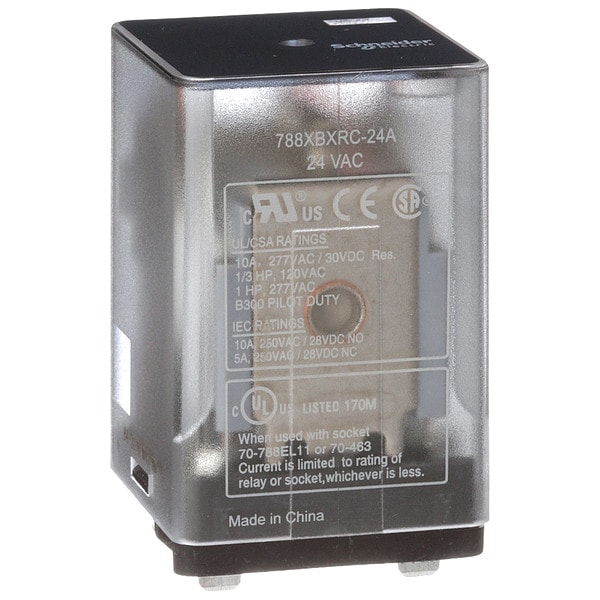

Schneider Electric Plug-In, General Purpose Relay, Square, 10 A, 8 Pins, Blade Terminal 788XBXRC-24A - main

Plug-In, General Purpose Relay, Square, 10 A, 8 Pins, Blade Terminal

  • Mfr # 788XBXRC-24A

  • Zoro # G9784397

product price: $17.59
/ea

Key Features

Mounting Style
Plug-In
Electrical Connection
Blade Terminal
Base Shape
Square
Number of Pins
8
Coil Voltage
24V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
788XBXRC-24A
Zoro #
G9784397
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
1.97 in
Body Height
1.4 in
Flat Pin Width
0.189 in
Body Width
1.38 in
Overall Depth
1.97 in
Body Depth
1.97 in
Width
1.38 in (35 mm)
Depth
1.40 in (35.5 mm)

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Blade Terminal
Base Shape
Square
Number of Pins
8
Coil Voltage
24V AC
Current Rating
10 A
Contact Form
DPDT
Contact Rating (AC)
10 A @ 277V, 5 A @ 250V-1
Contact Rating (DC)
10 A @ 28V
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Features
Clear Cover
Socket Code
C
Contact Material
Silver Alloy
Socket
Mfr. No. 70-463-1, 70-124-1, 70-124-2, 70-178-1, 70-178-2
Status Indicator
Mechanical Flag
Standards
CE Certified, CSA Certified, EAC, UL Listed
Power Consumption - Relay
3 VA
Horsepower @ 240V AC
1/2 hp
Dielectric Strength
1,500V AC Between Contacts, 2,000V AC Between Poles, 2,500V AC Between Coil and Contact
Motor Rated
Yes
Pin Shape
Flat
Horsepower @ 120V AC
1/3 hp
Mechanical Operating Durability
5,000,000
Minimum Operating Temperature
-40 Degrees F
Power Consumption
3 VA
Push-To-Test Method
No Test Button
Input Voltage
24V AC
Sealing
Enclosed
Weight
2.93 oz
Resistance Properties
Shock-Resistant, Vibration-Resistant
Maximum Operating Temperature
131 Degrees F
Minimum Switching Current
10 mA
Electrical Operating Durability
100,000
IP Rating
IP40
Series
788R Series
Coil Resistance
72 ohm
Maximum Switching Voltage
250V, 300V
Operating Current
10 A at 250V AC-1 (1 NO Resistive Load Conforming to IEC), 10 A at 277V AC (Resistive Load Conforming to UL), 10 A at 28V DC-1 (1 NO Resistive Load Conforming to IEC), 10 A at 30V DC (Resistive Load Conforming to UL), 5 A at 250V AC-1 (1 NC Resistive Load Conforming to IEC), 5 A at 28V DC-1 (1 NC Resistive Load Conforming to IEC)
Response Time
20 msec
Rated Power in HP
0.33 HP 120 V AC; 1 HP 277 V AC
Contact Composition
2 NC + 2 NO
Product Certifications
UL; CSA; CE; EAC
Operating Time
20 ms
Vibration Resistance
+/- 1 mm 10 to 35 Hz in operation; 3 gn 35 to 150 Hz in operation
Shock Resistance
10 gn
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Control Circuit Voltage Limits
0.85...1.1 Un AC
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC

Description

General Purpose Relay, Base Shape Square, Coil Voltage 24V AC, Contact Form DPDT, Current Rating 10 A, Electrical Connection Blade Terminal, Flat Pin Width 0.189 in, Number of Pins 8, Pin Shape Flat, Sealing Enclosed, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 277V, 5 A @ 250V-1 (NC), Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In, Push-To-Test Method No Button, Body Depth 1.97 in, Body Height 1.4 in
