  13. Plug-In, General Purpose Relay, Square, 6 A, 14 Pins, Faston Connector

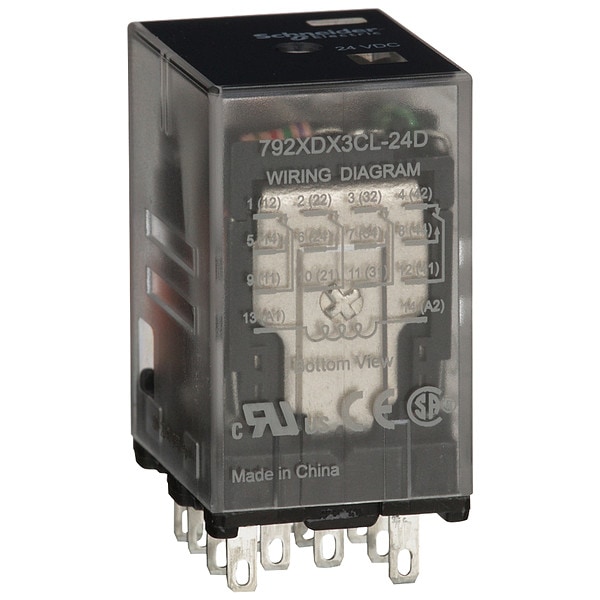

Schneider Electric Plug-In, General Purpose Relay, Square, 6 A, 14 Pins, Faston Connector 792XDXC-24A - main

CAD Viewer & Download Files

Plug-In, General Purpose Relay, Square, 6 A, 14 Pins, Faston Connector

  • Mfr # 792XDXC-24A

  • Zoro # G0316849

CAD Available
product price: $9.39
/ea
Sold in multiples of 2 for $18.78

Key Features

CAD Drawing
Mounting Style
Plug-In
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
14
Coil Voltage
24V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
792XDXC-24A
Zoro #
G0316849
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
1.4 in
Body Width
0.83 in
Overall Depth
1.61 in
Body Depth
1.37 in
Body Height
1.07 in
Width
0.83 in (21 mm)
Depth
1.07 in (27.2 mm)

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
14
Coil Voltage
24V AC
Current Rating
6 A
Contact Form
4PDT
Contact Rating (AC)
3 A @ AC-1, 6 A @ 277V, 6 A @ AC-1, 8 A @ 120V
Contact Rating (DC)
3 A @ DC-1 (NC), 6 A @ DC-1 (NO), 8 A @ 30V
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Status Indicator
Mechanical Flag
Contact Material
Gold Flashed Silver
Features
Clear Cover
Power Consumption - Relay
1.2 VA
Socket
Mfr. No. 70-782E14, 70-461
Standards
CE Certified, CSA Certified, UL Listed
Socket Code
G
Electrical Operating Durability
100,000
Mechanical Operating Durability
10,000,000
Minimum Operating Temperature
-40 Degrees F
Operating Current
3 A AC-1 (NC Conforming to IEC), 3 A DC-1 (NC Conforming to IEC), 6 A AC-1 (NO Conforming to IEC), 6 A at 277V AC (Conforming to UL), 6 A DC-1 (NO Conforming to IEC), 8 A at 120V AC (Conforming to UL), 8 A at 30V DC (Conforming to UL)
Horsepower @ 240V AC
1/2 hp
For Use With
General Purpose Relay
Power Consumption
0.9 VA
Series
792 Series
Minimum Switching Current
10 mA
Horsepower @ 120V AC
1/3 hp
Maximum Operating Temperature
131 Degrees F
Input Voltage
24V AC
Push-To-Test Method
No Test Button
Response Time
25 msec
Coil Resistance
177 ohm
IP Rating
IP40
Motor Rated
Yes
Resistance Properties
Shock-Resistant, Vibration-Resistant
Dielectric Strength
1,300V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles
Weight
1.31 oz
Maximum Switching Voltage
250V AC, 300V DC
Operating Time
25 ms; 20 ms at maximum rated voltage
Surge Withstand Duration
1.2/50µs
Product Range
Legacy
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Voltage Range
0.8...1.1 Un AC/DC
Shock Resistance
10 gn in operation; 30 gn not operating
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Connections Terminals
Faston connectors
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Motor Power HP
0.33 hp 120 V AC; 0.5 hp 277 V AC
Product Certifications
UL; CSA; CE
Power consumption in VA
0.9 VA AC
Vibration Resistance
3 gn 35 to 150 Hz)operating; +/- 1 mm 10 to 35 Hz)operating; 5 gn 35 to 150 Hz)not operating; +/- 1 mm 10 to 35 Hz)not operating
Contact Composition
4 NO + 4 NC
CAD Available
Yes

Description

General Purpose Relay, Base Shape Square, Coil Voltage 24V AC, Contact Form 4PDT, Current Rating 6 A, Electrical Connection Faston Connector, Number of Pins 14, Status Indicator Mechanical Flag, Contact Rating (AC) 3 A @ AC-1 (NC), 6 A @ 277V, 6 A @ AC-1 (NO), 8 A @ 120V, Contact Rating (DC) 3 A @ DC-1 (NC), 6 A @ DC-1 (NO), 8 A @ 30V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In, Push-To-Test Method No Button, Body Depth 1.37 in, Body Height 1.07 in
