  15. Push Button Control Station, 1NC, 30mm

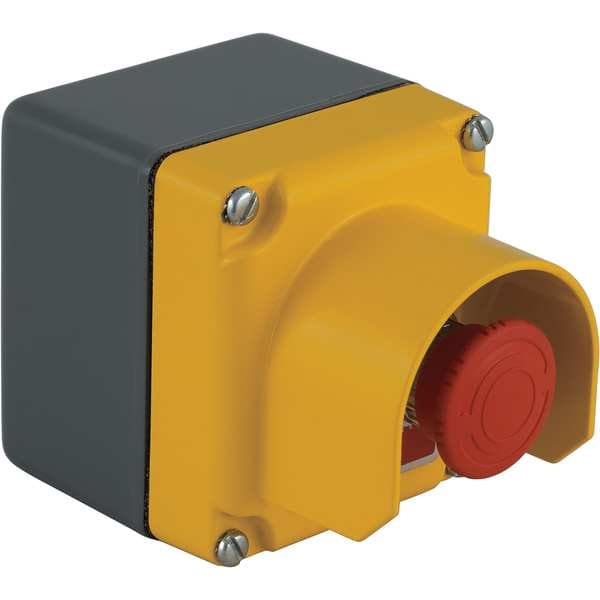

Schneider Electric Push Button Control Station, 1NC, 30mm 9001KYG1Y2 - main

Push Button Control Station, 1NC, 30mm

  • Mfr # 9001KYG1Y2

  • Zoro # G0374787

product price: $360.99
/ea
Free Shipping & Returns

Key Features

Contact Form
1NC
Number of Gangs
1
Legend
Emergency Stop
Type of Operator
Push Button with Mushroom Head
Number of Pilot Lights
0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KYG1Y2
Zoro #
G0374787
UPC #
785901664963
Country of Origin
Mexico

Dimensions

Size
30 mm
Height
3.63 in
Depth
5.5 in
Width
4 in
Panel Cutout Diameter
30 mm
Overall Depth
5.5 in
Hub Size - Maximum
1 in
Manufacturer Warranty Length
18 mo
Overall Width
4 in
Overall Height
3.63 in

Details

Item
Control Station
Contact Form
1NC
Number of Gangs
1
Legend
Emergency Stop
Type of Operator
Push Button with Mushroom Head
Number of Pilot Lights
0
Number of Operators
1
NEMA Rating
4
Hub Style
Dead-End
Series
9001K
Contact Rating
10A @ 600V AC, 2.5A @ 24V DC
Standards
CSA, UL Listed
Action
Maintained
Mechanical Interlock
No
Hub
3/4 in NPT
IP Rating
IP66
Enclosure Material
Zinc
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Enclosure Color
Yellow
Mounting
Wall
NEMA Contact Rating Designation
A600/Q600
Operator Color
Red
Number of Speeds
1
Includes Mechanical Interlock
No Mechanical Interlock Included.
Product Type
Control Station
DC Contact Rating
0.2 A @ 600 V, 0.55 A @ 240 V, 1.1 A @ 120 V
Maintained Action Release
Twist
Hazardous Location Specification
Class II, Div 2, Group G, Class III, Div 1 and 2
Operating Temperature - Minimum
-13 Degrees F
NEMA Enclosure Rating
4
Operating Temperature - Maximum
158 Degrees F
Operator Configuration
Mushroom Head Push Button
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V

Description

Control Station, Number of Operators 1, Number of Pilot Lights 0, Size 30 mm, Legend Emergency Stop, Type of Operator Push Button with Mushroom Head, Action Maintained, Operator Color Red, Contact Form 1NC, Mechanical Interlock No, NEMA Rating 4, Contact Rating 10A @ 600V AC, 2.5A @ 24V DC, NEMA Contact Rating Designation A600/Q600, IP Rating IP66, Mounting Wall, Hub 3/4 in NPT, Height 3.63 in, Width 4 in, Depth 5.5 in, Enclosure Material Zinc, Enclosure Color Yellow, Standards CSA, UL Listed
