  15. Push Button operator, 22 mm, Yellow

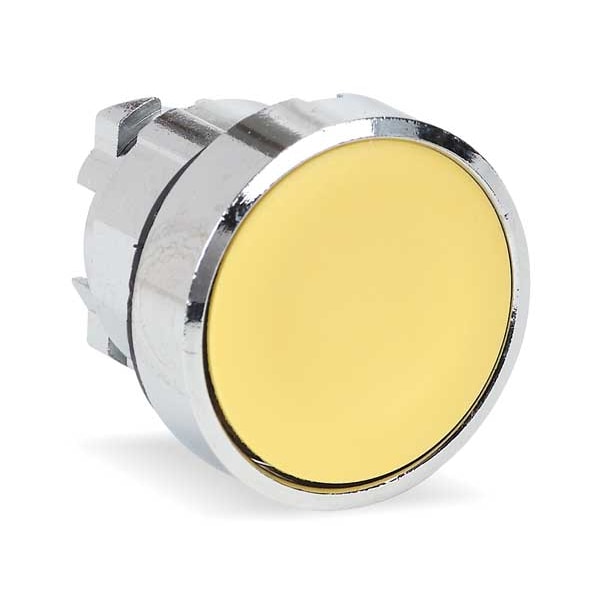

Schneider Electric Push Button operator, 22 mm, Yellow ZB4BH05 - main

Push Button operator, 22 mm, Yellow

  • Mfr # ZB4BH05

  • Zoro # G2271866

product price: $15.39
/ea

Key Features

Push Button Style
Flush
Action
Maintained
Maintained Action Release
Push/Push
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BH05
Zoro #
G2271866
UPC #
785901382072
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Mounting Diameter
22 mm
Cad Overall Depth
28 mm
Cad Overall Width
29 mm
Cad Overall Height
29 mm
Overall Height
1.14 in
Overall Width
1.14 in
Manufacturer Warranty Length
18 mo
Overall Depth
1.1 in

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Maintained
Maintained Action Release
Push/Push
Operator Illumination
Non-Illuminated
Head Color
Yellow
Head Material
Metal
Standards
Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Type of Operator
Flush Button
Bezel Material
Metal
NEMA Rating
1, 13, 2, 3, 4, 4X
Color
Yellow
IP Rating
IP66
Accessory Group
B
Basic Material
Metal
Number of Operators
1
Features
Visually Distinct at a Distance, Snap-Fit Assembly, High Brightness
Series
XB4
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Ambient Air Temperature For Storage
-40-70°C
Device Short Name
ZB4
Product Certifications
DNV || LROS (Lloyds register of shipping) || GL || CSA || BV || UL Listed
Head Type
standard
Ambient Air Temperature For Operation
-40-70°C
Operator Profile
yellow flush, unmarked
Mechanical Durability
2000000 cycles
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Overvoltage Category
class I IEC 60536
Protective Treatment
TH
Electrical Composition Code
C11 3 single front mounting || C15 1 single front mounting || C9 3 single front mounting
Ik Degree Of Protection
IK06 IEC 50102
Shape Of Signaling Unit Head
round
Device Presentation
basic element
Product Or Component Type
head for non-illuminated push-button
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-40 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Number of Indicator Lights
0
Hazardous Location Specification
Not Rated
Operator Material
Metal
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight

Description

Flush Push Button, 22 mm, Maintained, Type of Operator Flush Button, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color Yellow, NEMA Rating 1, 13, 2, 3, 4, 4X, IP Rating IP66, Legend Not Applicable, Standards Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
