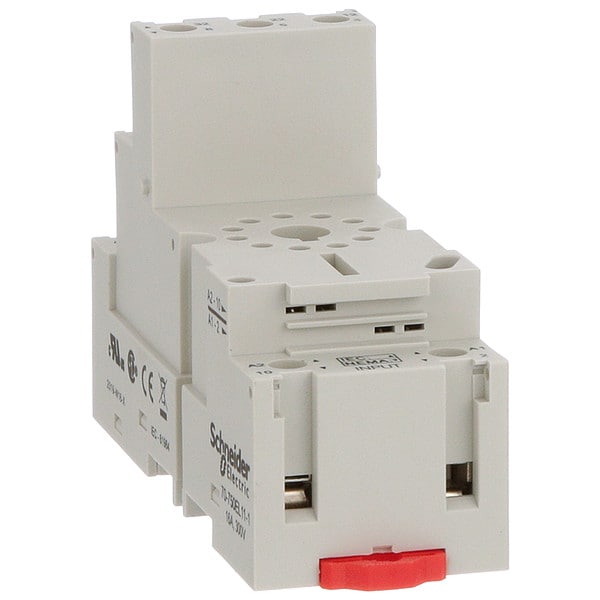

Schneider Electric Relay Socket, Elevator, Octal, 11 Pin, Screw 70-750EL11-1 - main

Relay Socket, Elevator, Octal, 11 Pin, Screw

  • Mfr # 70-750EL11-1

  • Zoro # G1730811

product price: $7.15
/ea

Key Features

Item - Relay
Relay Socket
Socket Type - Relay
Elevator, Finger Safe
Base Style - Relay Socket
Octal
Contact Form - Relay Socket
3PDT
Mounting - Relay
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
70-750EL11-1
Zoro #
G1730811
UPC #
-
Country of Origin
China

Dimensions

Width - Relay Socket
1.4 in
Depth
2.24 in
Width
1.42 in
Height - Relay Socket
2.48 in
Length
3.77"
Depth - Relay Socket
3.77 in
Height
2.48 in

Details

Item - Relay
Relay Socket
Socket Type - Relay
Elevator, Finger Safe
Base Style - Relay Socket
Octal
Contact Form - Relay Socket
3PDT
Mounting - Relay
DIN Rail
Electrical Connection - Relay Socket
Screw Clamp
Number of Pins - Relay
11
Socket Code
B
Contact Rating - Relay Socket
16A @ 300V AC
Color
White
Contact Rating
16A @ 300VAC
Voltage
300VAC
Terminals
Screw Clamp
Mounting
Din Rail
Socket Type
Standard, Finger Safe
Number of Pins
11
Socket Style
Octal
Standards
CE Certified, CSA Certified, UL Listed
Status Indicator
None
Item
Relay Socket
Minimum Operating Temperature
-40 Degrees F
Base Style
Octal
Contact Rating (AC)
16 A @ 300V
Contact Terminal Arrangement
Separate
Maximum Operating Temperature
131 Degrees F
Electrical Connection
Screw Clamp
Number of Terminals
11
Mounting Style
DIN Rail
Compatible Relays
750R Series
IP Rating
IP20
Pin Shape
Round
Weight
2.79 oz
Contact Form
3PDT
Current Rating
16 A
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Tightening Torque
< 0.8 N.m
Ambient Air Temperature for Storage
-40 to 221°F (-40 to 105°C)
Product Range
Legacy
[Ue] rated operational voltage
300 V
Product Type
Socket
Contact Composition
3 NO + 3 NC
Product Certifications
UL; CSA; CE
Flame Retardance
UL94-V0
Product Compatibility
relay 750XCXR; suppressor module 70-ASMM; diode 70-ASMD; signalling device 70-ASMLG; suppressor module 70-ASMR
Shape of Screw Head
Combination roundhead
Fixing Mode
By screw M3.5, M3.5 panel; Clip-on 35 mm DIN rail
Connections Terminals
lift terminals flexible; lift terminals solid

Description

Relay Socket, Base Style Octal, Contact Form 3PDT, Current Rating 16 A, Electrical Connection Screw Clamp, Flat Pin Width Not Applicable, Number of Pins 11, Number of Terminals 11, Pin Shape Round, Socket Type Standard, Finger Safe, Contact Terminal Arrangement Separate, Mounting Style DIN Rail, Color White, Compatible Relays 750R Series, Contact Rating (AC) 16 A @ 300V, Depth 2.24 in, Height 2.48 in, IP Rating IP20, Maximum Operating Temperature 131 Degrees F
