  13. Relay Socket, Standard, Square, 11 Pin, 10A

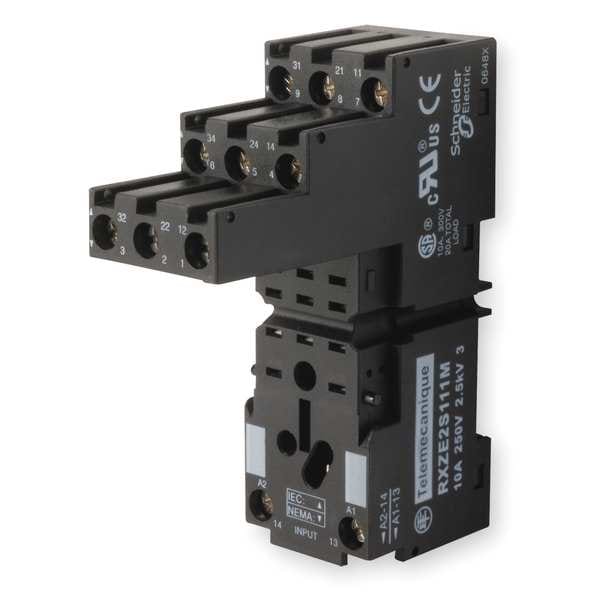

Schneider Electric Relay Socket, Standard, Square, 11 Pin, 10A RXZE2S111M - main

Relay Socket, Standard, Square, 11 Pin, 10A

  • Mfr # RXZE2S111M

  • Zoro # G3237631

product price: $7.75
/ea

Key Features

Item - Relay
Relay Socket
Socket Type - Relay
Elevator, Finger Safe
Base Style - Relay Socket
Square
Contact Form - Relay Socket
3PDT
Mounting - Relay
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RXZE2S111M
Zoro #
G3237631
UPC #
785901758075
Country of Origin
China

Dimensions

Height - Relay Socket
2.4 in
Depth - Relay Socket
3.25 in
Width
1.06 in
Length
3.25"
Depth
3.25 in
Width - Relay Socket
1.06 in
Flat Pin Width
0.09 in
Height
2.4 in

Details

Item - Relay
Relay Socket
Socket Type - Relay
Elevator, Finger Safe
Base Style - Relay Socket
Square
Contact Form - Relay Socket
3PDT
Mounting - Relay
DIN Rail
Electrical Connection - Relay Socket
Box Lug
Number of Pins - Relay
11
Socket Code
R
Contact Rating - Relay Socket
10A @ 250V AC
Color
Black
Item
Relay Socket
Socket Type
Elevator, Finger Safe
Status Indicator
None
Terminals
Box Lug Separate
Voltage
250VAC
Mounting
Din Rail
Number of Pins
11
Standards
CE Certified, CSA Certified, IEC 61984, Lloyd's, UL Listed
Contact Rating
10A @ 250VAC
Socket Style
Square
Weight
2.4 oz
Base Style
Square
Number of Terminals
11
Minimum Operating Temperature
-40 Degrees F
Current Rating
10 A
Electrical Connection
Screw
Contact Rating (AC)
10 A @ 250V
IP Rating
IP20
Pin Shape
Flat
Maximum Operating Temperature
131 Degrees F
Mounting Style
DIN Rail & Surface
Contact Form
3PDT
Contact Terminal Arrangement
Separate
Compatible Relays
Harmony(TM) RXM Series
Ip Degree Of Protection
IP20 conforming to EN/IEC 60529
[Ue] Rated Operational Voltage
< 250 V
[Uimp] Rated Impulse Withstand Voltage
4 kV
Tightening Torque
< 1 N.m M3
Pollution Degree
3
Product Or Component Type
socket
Marking
CE
Fixing Mode
by screw panel) || clip-on 35 mm symmetrical DIN rail)
Product Certifications
UL || Lloyd's || CSA
[Ith] Conventional Free Air Thermal Current
10A
Shape Of Pin
flat
Connections - Terminals
connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end || connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end || connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
Product Compatibility
plug-in relay RXM 3 C/O
Ambient Air Temperature For Operation
-40-55°C
Overvoltage Category
III
Ambient Air Temperature For Storage
-40-85°C
Device Short Name
RXZ
Dielectric Strength
2500 V

Description

Relay Socket, Base Style Square, Contact Form 3PDT, Current Rating 10 A, Electrical Connection Screw, Flat Pin Width 0.09 in, Number of Pins 11, Number of Terminals 11, Pin Shape Flat, Socket Type Elevator, Finger Safe, Contact Terminal Arrangement Separate, Mounting Style DIN Rail & Surface, Color Black, Compatible Relays Harmony(TM) RXM Series, Contact Rating (AC) 10 A @ 250V, Depth 3.25 in, Height 2.4 in, IP Rating IP20, Maximum Operating Temperature 131 Degrees F
