- Item

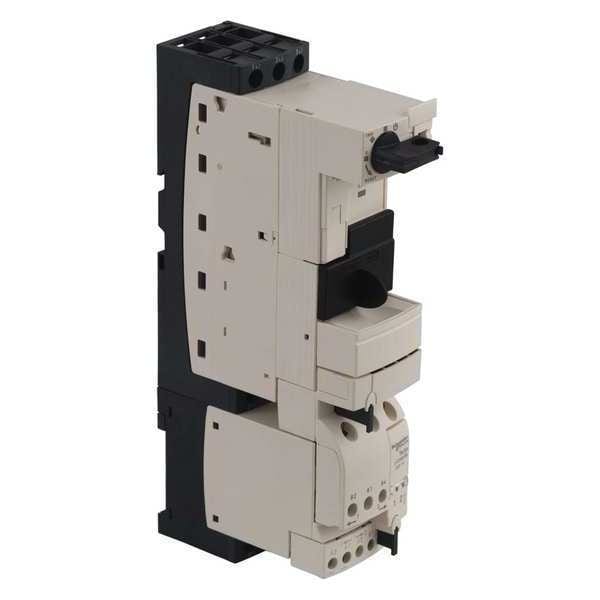

- Reversing Power Base
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 24V DC
- Number of Poles
- 3
- Reversing Capability
- Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 2
- Standards
- EN 60947-6-2; IEC 60947-6-2; UL 60947-4-1, with phase barrier; CSA C22.2 No 60947-4-1, with phase barrier; CE; CCC; EAC; ASEFA; ATEX; Marine
- Features
- Mercury Free; Resistance to Fire, Electrostatic Discharge, Fast Transients, Radiated Fields, Shock & Vibration; Suitability For Isolation
- Weight
- 1.27 kg
- Operating Voltage
- 690V AC
- Tightening Torque
Control circuit 7.08 to 10.62 lbf.in (0.8 to 1.2 N.m) flat 0.20 in (5 mm); Control circuit 7.08 to 10.62 lbf.in (0.8 to 1.2 N.m) Philips no 1 0.20 in (5 mm); Power circuit 16.82 to 22.13 lbf.in (1.9 to 2.5 N.m) flat 0.24 in (6 mm); Power circuit 16.82 to 22.13 lbf.in (1.9 to 2.5 N.m) Philips No 2 0.24 in (6 mm); Power circuit 16.82 to 22.13 lbf.in (1.9 to 2.5 N.m) pozidriv No 2 0.24 in (6 mm)
- Inrush Restraint Duration
- 15 ms DC
- Immunity To Microbreaks
- 3 ms control circuit
- Heat Dissipation
- 2 W control circuit with LUCA, LUCB, LUCC, LUCD; 1.7 W control circuit with LUCM
- IP Degree Of Protection
- IP20 IEC 60947-1 front panel and wired terminals); IP20 IEC 60947-1 other faces); IP40 IEC 60947-1 front panel outside connection zone)
- Typical Current Consumption
- 120 mA 24 V DC I maximum while closing; 120 mA 24 V DC I rms sealed
- Rated Operational Current
- 12 A Less than or Equal to 440 V; 12 A 500 V; 9 A 690 V
- Resistance To Electrostatic Discharge
- 8 kV 3 in open air IEC 61000-4-2; 8 kV 4 on contact IEC 61000-4-2
- Protective Treatment
- TH IEC 60068
- Mechanical Durability
- 15 Mcycles
- Product Name
- TeSys Ultra
- Control Circuit Voltage
- 24 V DC
- Shock Resistance
- 10 gn power poles open IEC 60068-2-27; 15 gn power poles closed IEC 60068-2-27
- Resistance To Fast Transients
- 2 kV 3 serial link IEC 61000-4-4; 4 kV 4 all circuits except for serial link IEC 61000-4-4
- Auxiliary Contacts Type
- Linked contacts 1 NO + 1 NC) IEC 60947-4-1; Mirror contact 1 NC) IEC 60947-1
- Conventional Free Air Thermal Current
- 12 A
- Utilisation Category
- AC-43; AC-44; AC-41
- Maximum Operating Rate
- 3600 cyc/h
- Fire Resistance
- 1760°F (960°C) parts supporting live components IEC 60695-2-12; 1202°F (650°C) IEC 60695-2-12
- Operating Time
- 150 ms with change of direction power circuit; 75 ms without change of direction power circuit; 35 ms opening with LUCA, LUCB, LUCC, LUCD, LUCM control circuit; 75 ms closing with LUCM control circuit; 70 ms closing with LUCA, LUCB, LUCC, LUCD control circuit
- Ambient Air Temperature For Storage
- -40 to 185°F (-40 to 85°C)
- Vibration Resistance
- 2 gn 5 to 300 Hz) power poles open IEC 60068-2-27; 4 gn 5 to 300 Hz) power poles closed IEC 60068-2-27
- Connections - Terminals
Control circuit screw clamp terminals 1 0.00 to 0.00 in² (0.34 to 1.5 mm²) flexible with cable end; Control circuit screw clamp terminals 1 0.00 to 0.00 in² (0.75 to 1.5 mm²) flexible without cable end; Control circuit screw clamp terminals 1 0.00 to 0.00 in² (0.75 to 1.5 mm²) rigid; Control circuit screw clamp terminals 2 0.00 to 0.00 in² (0.34 to 1.5 mm²) flexible with cable end; Control circuit screw clamp terminals 2 0.00 to 0.00 in² (0.75 to 1.5 mm²) flexible without cable end; Control circuit screw clamp terminals 2 0.00 to 0.00 in² (0.75 to 1.5 mm²) rigid; Power circuit screw clamp terminals 1 0.00 to 0.02 in² (1 to 10 mm²) rigid; Power circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 6 mm²) flexible with cable end; Power circuit screw clamp terminals 1 0.00 to 0.02 in² (2.5 to 10 mm²) flexible without cable end; Power circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 6 mm²) flexible with cable end; Power circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 6 mm²) rigid; Power circuit screw clamp terminals 2 0.00 to 0.01 in² (1.5 to 6 mm²) flexible without cable end
- Fixing Mode
- Clipped DIN rail; Screw-fixed plate)
- Rated Insulation Voltage
- 690 V IEC 60947-6-2 3; 600 V UL 60947-4-1; 600 V CSA C22.2 No 60947-4-1
- Safe Separation Of Circuit
- 400 V SELV between the control and auxiliary circuits IEC 60947-1 appendix N; 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1 appendix N
- Compatibility Code
- LU2B
- Operating Altitude
- 6561.68 ft (2000 m)
- Resistance To Radiated Fields
- 9.14 V/m (10 V/m) 3 IEC 61000-4-3
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Immunity To Voltage Dips
- 70% / 500 ms IEC 61000-4-11
- Rated Service Breaking Capacity
- 50 kA 230 V; 50 kA 440 V; 10 kA 500 V; 4 kA 690 V
- Suitability For Isolation
- Yes
- Rated Impulse Withstand Voltage
- 6 kVIEC 60947-6-2
- Immunity To Radioelectric Fields
- 10 V IEC 61000-4-6
- Control Circuit Voltage Limits
- 14.5 V DC drop-out; 20 to 27 V DC in operation
- Maximum Operating Temperature
- 140 Degrees F
- Minimum Operating Temperature
- -13 Degrees F
- Frequency
- 40 to 60 Hz
- Compatible Manufacturer Model Number
- LUC.X6BL; LUC.1XBL; LUC.05BL; LUC.12BL
