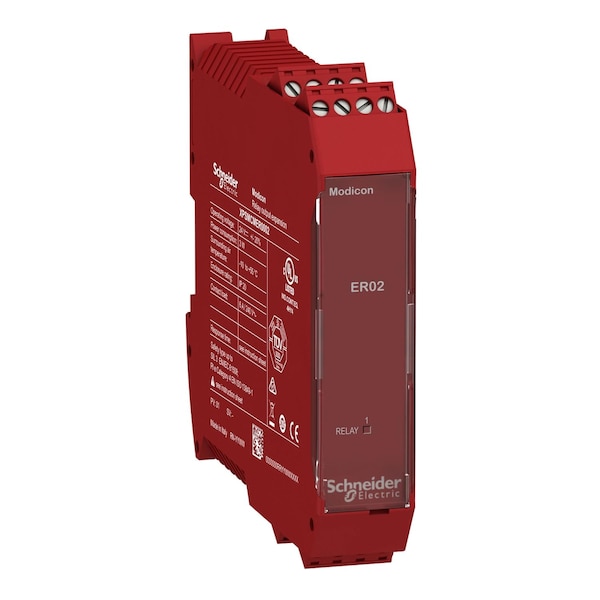

Safety Relay Outputs Module Expansion 2
Standards
IEC 62061, ISO 13849-1, IEC 61508, IEC 61800-5-1
[Us] Rated Supply Voltage
24 V - 20...20 % DC
Mechanical Durability
20000000 cycles
Vibration Resistance
+/-0.35 mm 10-55 Hz)IEC 61496-1
Maximum Switching Voltage
400 V AC, 250 V DC
Local Signalling
1 LED green PWR power ON, 1 LED green RUN RUN (status), 1 LED red E IN internal error, 1 LED red E EX external error, 2 LEDs orange ADDR node address, 1 LED green/red RELAY K1 relay contact
Ambient Air Temperature For Storage
-20-85°C
Range of Product
Preventa Safety automation
Number of Terminal Blocks
4
Insulation
250 V AC between power supply and housing IEC 61800-5-1
Relative Humidity
10-95 %
Associated Fuse Rating
3.5 A, slow-blow
Minimum Switching Current
20 mA
Ip Degree of Protection
IP20
Mounting Support
omega 35 mm DIN rail EN 50022
Connections - Terminals
2 captive screw clamp terminals, removable terminal block, 1 captive screw clamp terminals, removable terminal block
Integrated Connection Type
not connected to backplane expansion bus
Product or Component Type
safe relay output module
Function of Module
monitoring safety actuators relay output
Output Type
relay, 2 NO + 1 NC, volt-free
Electrical Connection
screw terminal
Shock Resistance
10 gn 16 ms 1000 shocks on each axis)IEC 61496-1
Electrical Durability
20000000 cycles
Switching Voltage
10 V DC
Cable Cross Section
0.2-1.5 mm² - AWG 24...AWG 16 flexible without cable end, 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end, 0.25-1 mm² - AWG 23...AWG 18 flexible with cable end, without bezel, 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel, 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, without bezel, 0.5-1.5 mm² - AWG 20...AWG 16 flexible with cable end, with double bezel, 0.2-1 mm² - AWG 24...AWG 18 solid without cable end, 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end
Electromagnetic Compatibility
electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2, susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
Number of Outputs
2 relay
Maximum Power Dissipation In W
3 W
Ambient Air Temperature For Operation
-10-55°C
Safety Level
can reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1, can reach SIL 3 IEC 61508, SILCL 3 IEC 62061
Maximum Switching Current
6A
[Uimp] Rated Impulse Withstand Voltage
4 kV IEC 61800-5-1
Function Of Module
monitoring safety actuators relay output
Ip Degree Of Protection
IP20
Number Of Terminal Blocks
4
Number Of Outputs
2 relay
Product Or Component Type
safe relay output module
Product Certifications
TUV || cULus || RCM
