Input or Control Voltage
24 V AC/DC
AC Contact Rating - Relay
8 A @ 250 V
DC Contact Rating - Relay
Not Available
Mounting - Relay
DIN Rail
Output Switch Configuration - Relay
(3) NO
Input Power Consumption (Burden)
2 W
Number of Inputs - Relay
2
Use With - Relay
All XPS Series Relays, E Stop, Limit Switch, Magnetic switch
Delay Time - Relay
No Delay
Number of Pins - Relay
16
Item - Relay
Safety Relay Extension Module
Environmental Protection
Dust & Splash Resistant
For Use With
Guard Switch, Magnetic Switch, Monitoring Emergency Stop, PNP Sensors, Proximity Safety Switch, RFID Safety Switch or Safety Light Curtain
IP Rating
IP20; IP40; IP54
Standards
CCC, cULus Listed, EAC, IEC 60947-5-1, IEC 61508-1/2/3, IEC 62061, ISO 13849-1, TUV Certified
Response Time - Relay
20 msec
Electrical Connection - Relay
Terminal Block Removable
Safety Reliability Data
Dcavg Greater Than= 99% ISO 13849-1, HFT = 1 IEC 61508-1, HFT = 1 IEC 62061, MTTFd Greater Than 30 years ISO 13849-1, PFHd = 1.13E-09 IEC 61508-1, PFHd = 1.13E-09 IEC 62061, PFHd = 1.13E-09 ISO 13849-1, SFF Greater Than 99% IEC 61508-1, SFF Greater Than 99% IEC 62061, Type = B IEC 61508-1
Output Switch Configuration
(3) NO
Minimum Operating Temperature
-13 Degrees F
Contact Rating (AC)
8 A @ 250V
Electrical Connection
Screw Terminal, Terminal Block Removable
Application
Emergency Stop
Maximum Operating Temperature
185 Degrees F
Input Protection Type
internal, electronic
Ambient Air Temperature For Storage
-25-85°C
Function Of Module
emergency stop button with 2 NC contacts || guard monitoring with 1 or 2 limit switches || monitoring 2 PNP sensors || magnetic switch monitoring || light curtain monitoring || RFID switch || monitoring of electro-sensitive protection equipment (ESPE) || proximity sensor monitoring
Product Certifications
TUV || cULus
Electrical Circuit Type
NC pair || PNP pair || antivalent pair || OSSD pair
Number Of Outputs
3 on/off configurable pulsed output
Product Or Component Type
safety module
[Uimp] Rated Impulse Withstand Voltage
4 kV II EN/IEC 60947-1
Auxiliary Contact Composition
3 NO
Minimum Output Current
10 mA relay output

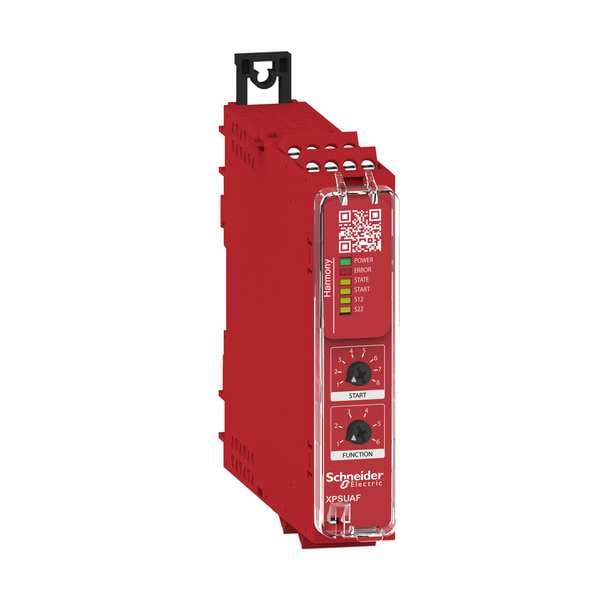

Safety Module Name
XPSUAF
Mounting Support
35 mm symmetrical DIN rail
Maximum Line Resistance
500 Ohm
Local Signalling
for power ON LED (green) || for error LED (red) || for start LED (yellow) || for safety status LED (yellow) || for safety input S12 LED (yellow) || for safety input S22 LED (yellow)
Relative Humidity
5-95 % non-condensing
Ip Degree Of Protection
IP20 terminals)EN/IEC 60529 || IP40 housing)EN/IEC 60529 || IP54 mounting area)EN/IEC 60529
[Us] Rated Supply Voltage
24 V AC - 15...10 % || 24 V DC - 20...20 %
Safety Level
can reach PL e/category 4 ISO 13849-1 || can reach SILCL 3 IEC 62061 || can reach SIL 3 IEC 61508
[Ie] Rated Operational Current
5 A AC-1 for normally open relay contact || 3 A AC-15 for normally open relay contact || 5 A DC-1 for normally open relay contact || 3 A DC-13 for normally open relay contact
[Ui] Rated Insulation Voltage
250 V 2)EN/IEC 60947-1
Maximum Response Time On Input Open
20 ms
Synchronisation Time Between Inputs
0.5 s || 2 s || 4 s
Associated Fuse Rating
10 A gG NO relay output circuit IEC 60947-1
Connections - Terminals
removable screw terminal block, 0.2...2.5 mm² solid or flexible || removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductor || removable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductor || removable screw terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel || removable screw terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel
Input Compatibility
normally closed circuit ISO 14119 || XC limit switch ISO 14119 || mechanical contact ISO 14119 || normally closed circuit ISO 13850 || antivalent pair ISO 14119 || OSSD pair IEC 61496-1-2 || 3-wire proximity sensors PNP
Input/Output Type
semiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related
Type Of Start
automatic/manual/monitored
Minimum Output Voltage
15 V relay output
Safety Module Application
monitoring antivalent contacts || for emergency stop, guard and light curtain monitoring
[Ith] Conventional Free Air Thermal Current
8A
Power Consumption In Va
5.0 VA 24 V AC 50/60 Hz
Power Consumption In W
2.0 W 24 V DC
