  8. Safety Switch, Fusible, 3PST, Three Phase, NEMA 1, Indoor, Steel

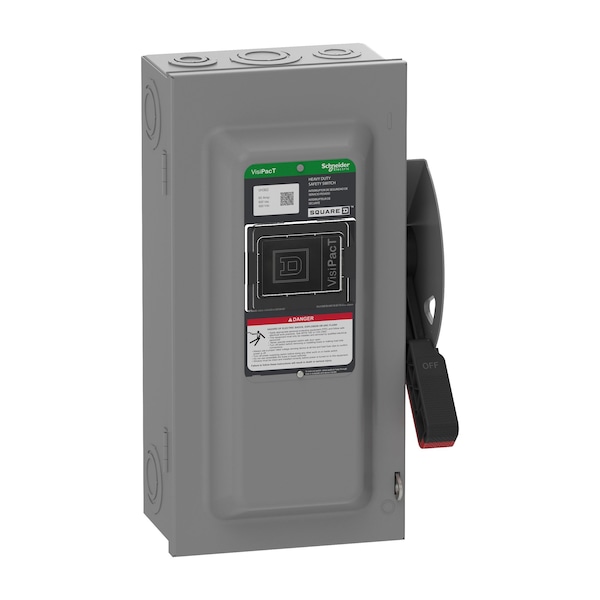

Schneider Electric Safety Switch, Fusible, 3PST, Three Phase, NEMA 1, Indoor, Steel VH362 - main

CAD Drawings

Download CAD Files

Safety Switch, Fusible, 3PST, Three Phase, NEMA 1, Indoor, Steel

  • Mfr # VH362

  • Zoro # G109691335

CAD Available
product price:  $459.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Protection Method
Fusible
Contact Form
3PST
Current Rating
60 A
Phase
Three
For Fuse Class
Class H, Class K
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VH362
Zoro #
G109691335
UPC #
3606485894027
Country of Origin
United States

Dimensions

Depth
7 in
Height
18 1/8 in
Width
8 7/8 in
Maximum Enclosure Depth
7.04 in

Details

Item
Safety Switch
Protection Method
Fusible
Contact Form
3PST
Current Rating
60 A
Phase
Three
For Fuse Class
Class H, Class K
Environment
Indoor
Enclosure Type
NEMA 1
Voltage
600 V
Handle Color
Black/Red
Housing Material
Steel
Standards
EU RoHS, UL Listed file E2875
Neutral Assembly Included
No
IP Rating
IP20
Includes
Dual Cover Interlock
Number of Wires
3
Number of Poles
3
Duty
Heavy Duty
Amps
60 A
Horsepower @ 480V AC
30 hp
Mounting Style
Surface Mount
Features
Quick Make/Break Operating Mechanism, Viewing Window
Includes Interlocked Receptacle
Yes
Number of Locks
2
Horsepower @ 600V AC
50 hp
Fuse Kit (Class R)
Mfr. No. RFK03H
Series
F
NEMA Enclosure Rating
1
Number of Mounting Holes
5
Horsepower @ 240V AC
Not Rated
Compatible with Manufacturer Model Number
RFK03H
Compatible Manufacturer Part Number
RFK03H
Compatible Manufacturer Model Number
RFK03H
For Use With Mfr. Model Number
RFK03H
Device Application
heavy application
Wiring Configuration
3-wire
Device Composition
field installed kit available
Short-Circuit Current
10 kA for H, K, J or R without fuse rejection clips || 200 kA for R with fuse rejection clips || 200 kA for J
Product Or Component Type
Single Throw Safety Switch
Condition Of Use
suitable service entrancefor USA || suitable service entrancefor Mexico
Electrical Connection
lugs
Product Certifications
UL listed file E2875
Device Mounting
surface
Disconnector Device Type
fusible disconnect
Tightening Torque
50-50 lbf.in (AWG 3) || 45-45 lbf.in (AWG 6...AWG 4) || 40-40 lbf.in 8.367-8.367 mm² (AWG 8) || 50-50 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10)
Series Name
heavy duty
Compatible with Manufacturer Model No.
RFK03H
Compatible with Mfr. Model No.
RFK03H
For Use with Mfr Model Number
RFK03H
Compatible Pump Manufacturer Part Number
RFK03H
Compatible Mfr. Model Number
RFK03H
CAD Available
Yes

Description

The SCHNEIDER ELECTRIC - VH362 is a Safety Disconnect Switch, an essential component in industrial electrical systems. This device is designed to interrupt the flow of electricity for safe equipment maintenance and emergency situations. It falls under the category of Electrical Supplies and plays a crucial role in reducing the risk of electrical accidents during routine operations or unexpected events.

  • Amps: The switch has a current rating of 60 A, indicating its rated capacity to carry a specified amount of electrical current.
  • Compatible Manufacturer Model Number: The model number RFK03H indicates which models of safety disconnect switches this product can work with or replace.
  • Contact Form: With a 3PST contact form, it controls multiple circuits and determines whether they are normally open (NO) or closed (NC).
  • Device Mounting: Intended for surface mounting, it may be installed on flat surfaces as per the manufacturer's instructions.
  • Duty: Classified as Heavy Duty, it's suitable for high-demand applications in industrial settings.
  • Enclosure Type: With a NEMA 1 rating, it is designed to meet certain standards against specific environmental conditions like dust and external ice formation.
  • Housing Material: Made from steel material in accordance with product specifications.
