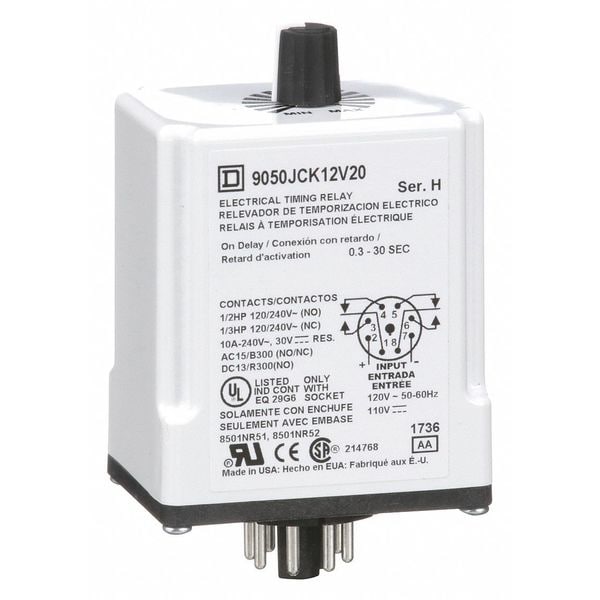

Single Function Time Delay Relay, Octal, On Delay, 1 Functions 110V AC, DPDT
Mfr # 9050JCK12V20
Zoro # G2697387
CAD Available
product price: $81.95
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Delay Function
On Delay
Number of Delay Functions
1
Minimum Time Setting
0.3 sec
Maximum Time Setting
30 sec
Base Shape
Octal
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
9050JCK12V20
Zoro #
G2697387
UPC #
785901032557
Country of Origin
United States
Dimensions
Overall Height - Relay
4.1 in
Depth
104 mm
Overall Depth
4.05 in
Body Height
2.34 in
Body Width
1.72 in
Body Depth
2.75 in
Description
Single Function Time Delay Relay, Adjustment Method Rotary Knob, Base Shape Octal, Coil Voltage 110V AC, Contact Form DPDT, Contact Rating (AC) 10 A @ 120/240V, Contact Rating (DC) 10 A @ 30V, Current Rating 10 A, Number of Delay Functions 1, Delay Function On Delay, Electrical Connection Socket, Flat Pin Width Not Applicable, Input Voltage 110V AC, 120V DC, Minimum Time Setting 0.3 sec, Maximum Time Setting 30 sec, Number of Pins 8, Sealing Sealed, Mounting Style Plug-In, Body Depth 2.75 in
