  13. Surface, Open Power Relay, 40 A, 4 Pins, Screw

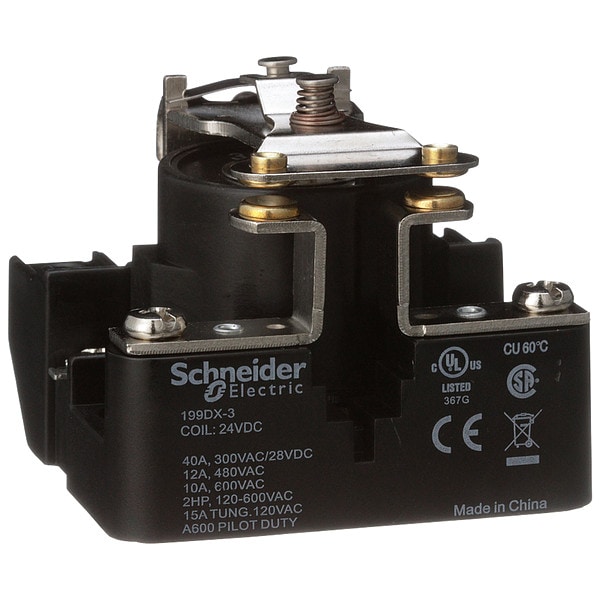

Schneider Electric Surface, Open Power Relay, 40 A, 4 Pins, Screw 199DX-3 - main

Surface, Open Power Relay, 40 A, 4 Pins, Screw

  • Mfr # 199DX-3

  • Zoro # G1473674

product price: $29.25
/ea

Key Features

Mounting Style
Surface
Electrical Connection
Screw
Number of Pins
4
Coil Voltage
24V DC
Current Rating
40 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
199DX-3
Zoro #
G1473674
UPC #
-
Country of Origin
China

Dimensions

Dimensions
2.18"H, 2.50"W, 2.43"D
Overall Height - Relay
2.18 in
Body Depth
2.49 in
Body Width
2.5 in
Overall Depth
1.95 in
Body Height
2.49 in

Details

Item
Open Power Relay
Mounting Style
Surface
Electrical Connection
Screw
Number of Pins
4
Coil Voltage
24V DC
Current Rating
40 A
Contact Form
SPST-NO
Contact Rating (AC)
10 A @ 600V, 12 A @ 480V, 15 A @ 120V, 40 A @ 300V
Contact Rating (DC)
40 A @ 28V
Power Consumption - Relay
10.0 W
Contact Material
Silver Alloy
Contact Amp Rating (Resistive)
40A @ 300VAC/28VDC
Number of Poles
1
Standards
CE Certified, CSA Certified, UL Listed
Hz - Electrical
50/60 Hz
HP @ 120V
2
Features
Riveted Construction
Coil Rating
10.0VA, 4.0W
Hz
50/60
HP @ 240V
2
Compatible with Manufacturer Model Number
50-1289-P
Minimum Operating Temperature
-67 Degrees F
Response Time
30 msec
Coil Resistance
290 ohm
Series
199 Power Series
Minimum Switching Current
1,000 mA
Weight
0.6
Frequency
50/60 Hz
Electrical Operating Durability
100,000
Maximum Operating Temperature
131 Degrees F
Maximum Switching Voltage
600V DC
Horsepower @ 120V AC
2 hp
Sealing
Open
Dielectric Strength
1,500V AC Between Open Contacts, 2,200V AC Between Coil and Contact, 2,200V AC Between Poles
Operating Current
10 A at 600V AC (Resistive Load), 12 A at 480V AC (Resistive Load), 15 A at 120V AC (Tungsten Filament), 40 A at 28V DC (Resistive Load), 40 A at 300V AC (Resistive Load)
Input Voltage
24V DC
Power Consumption
4 W, 10 VA
Motor Rated
Yes
Horsepower @ 240V AC
2 hp
Compatible Manufacturer Part Number
50-1289-P
Compatible Manufacturer Model Number
50-1289-P
Status Indicator
No Indicator
Product Certifications
UL Listed; CSA; CE
Wire Range
AWG 14
Drop-out Voltage Threshold
>= 0.1 Uc AC/DC
Rated Operational Voltage
6...600 V AC 50-60 Hz; 6...250 V DC
Cover Type
Open cover
Ambient Air Temperature for Storage
-67 to 212°F (-55 to 100°C)
Power consumption in VA
10 VA AC
Switch Function
SPST-NO-DM
Voltage Range
0.85...1.1 Un AC/DC
Ambient Air Temperature for Operation
-67 to 131°F (-55 to 55°C)
Contact Composition
1 NO
Contact Operation
Double action
Power consumption in W
4 W DC
Terminal Tightening Torque
10.62 to 15.05 lbf.in (1.2 to 1.7 N.m)
Motor Power HP
2 hp 120...600 V AC 50/60 Hz
Type
Power, Open Style

Description

Open Power Relay, Coil Voltage 24V DC, Contact Form SPST-NO, Current Rating 40 A, Electrical Connection Screw Terminal, Number of Pins 4, Sealing Open, Status Indicator No Indicator, Contact Rating (AC) 10 A @ 600V, 12 A @ 480V, 15 A @ 120V, 40 A @ 300V, Contact Rating (DC) 40 A @ 28V, Horsepower @ 120V AC 2 hp, Horsepower @ 240V AC 2 hp, Mounting Style Surface, Body Depth 2.49 in, Body Height 2.49 in, Body Width 2.5 in, Coil Resistance 290 ohm, Compatible with Grainger Part Number 6CVA2
