  11. Thermal Overload Relay, 1NC/1NO, 160 A Min current, 630 A Max current, 500V AC

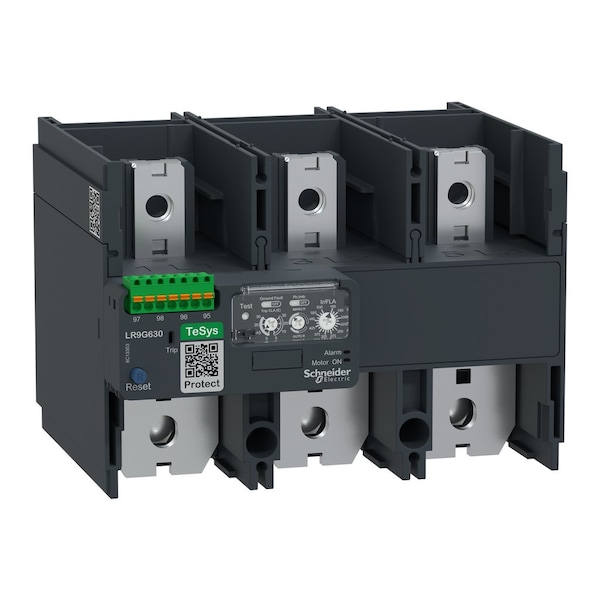

Schneider Electric Thermal Overload Relay, 1NC/1NO, 160 A Min current, 630 A Max current, 500V AC LR9G630 - main

Thermal Overload Relay, 1NC/1NO, 160 A Min current, 630 A Max current, 500V AC

  • Mfr # LR9G630

  • Zoro # G910190447

product price: $2,012.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
160 A
Maximum Overload Relay Current Setting
630 A
Trip Class
5E/30E
Overload Protection Type
Electronic
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LR9G630
Zoro #
G910190447
UPC #
3606481912589
Country of Origin
China

Dimensions

Body Height
5.83 in
Overall Height
5.83 in
Width
8.31 in
Depth
7.32 in

Details

Item
Thermal Overload Relay
Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
160 A
Maximum Overload Relay Current Setting
630 A
Trip Class
5E/30E
Overload Protection Type
Electronic
Maximum Voltage Rating
500V AC
Standards
CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
Number of Poles
3
Relay Style
IEC
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-13 Degrees F
IP Rating
IP20
Mounting Style
Direct To Contactor
Compatible with Series
TeSys Giga
Reset Type
Auto, Manual
Phase
Single
Terminal Connection Type
Box Lugs
Trip Clss
5E/30E

Description

Thermal overload relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 630 A, Minimum Overload Relay Current Setting 160 A, Trip Class 5E/30E, Maximum Voltage Rating 500V AC, NEMA Size Not Applicable, Number of Poles 3, Reset Type Auto, Manual, Mounting Style Direct To Contactor, Terminal Connection Type Box Lugs, Compatible with Series TeSys Giga, Relay Style IEC, Overload Protection Type Electronic, Phase Single
