  13. Through Panel, Open Power Relay, Square, 30 A, 4 Pins, Screw

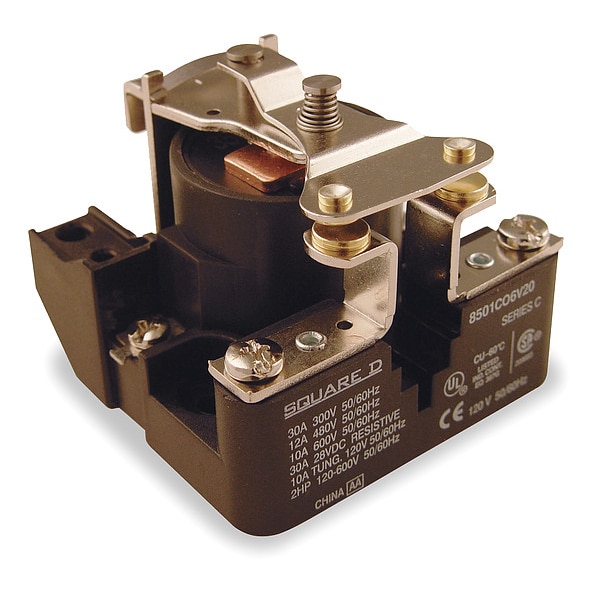

Schneider Electric Through Panel, Open Power Relay, Square, 30 A, 4 Pins, Screw 8501CO6V29 - main

Through Panel, Open Power Relay, Square, 30 A, 4 Pins, Screw

  • Mfr # 8501CO6V29

  • Zoro # G6383386

product price: $47.59
/ea

Key Features

Mounting Style
Through Panel
Electrical Connection
Screw
Base Shape
Square
Number of Pins
4
Coil Voltage
480V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8501CO6V29
Zoro #
G6383386
UPC #
785901059547
Country of Origin
China

Dimensions

Overall Height - Relay
1.98 in
Dimensions
1.98"H, 2.50"W, 2.49"D
Body Width
2.5 in
Body Depth
2.25 in
Overall Depth
1.95 in
Body Height
2.49 in

Details

Item
Open Power Relay
Mounting Style
Through Panel
Electrical Connection
Screw
Base Shape
Square
Number of Pins
4
Coil Voltage
480V AC
Current Rating
30 A
Contact Form
SPST-NO
Contact Rating (AC)
40 A @ 300V
Contact Rating (DC)
40 A @ 28V
Contact Material
Silver Tin Oxide
Number of Poles
1
Standards
CE Certified, CSA Certified, UL File No. E78351 CCN NLDX
Coil Rating
10.0VA, 2.0W
Contact Amp Rating (Resistive)
40A @ 277VAC/28VDC
Power Consumption - Relay
10.0 VA
Hz
50/60
Series
8501C Series
For Use With
Conveyor and Material Handling Applications, Electric Heater, Pumping
Maximum Operating Temperature
122 Degrees F
Status Indicator
No Indicator
Sealing
Open
Maximum Switching Voltage
600V AC
Horsepower @ 240V AC
2 hp
Power Consumption
10 VA
Motor Rated
Yes
Frequency
50/60 Hz
Minimum Operating Temperature
-22 Degrees F
Input Voltage
480V AC
Horsepower @ 120V AC
2 hp
Switching Voltage
600 V AC
Contact Rating
30 A

Description

Open Power Relay, Base Shape Square, Coil Voltage 480V AC, Contact Form SPST-NO, Current Rating 30 A, Electrical Connection Screw Clamp, Flat Pin Width Not Applicable, Number of Pins 4, Sealing Open, Status Indicator No Indicator, Contact Rating (AC) 40 A @ 300V, Contact Rating (DC) 40 A @ 28V, Horsepower @ 120V AC 2 hp, Horsepower @ 240V AC 2 hp, Mounting Style Through Panel, Body Depth 2.25 in, Body Height 2.49 in, Body Width 2.5 in, Contact Material Silver Tin Oxide
