  11. Variable Frequency Drive, 1 HP, 115V, Altivar

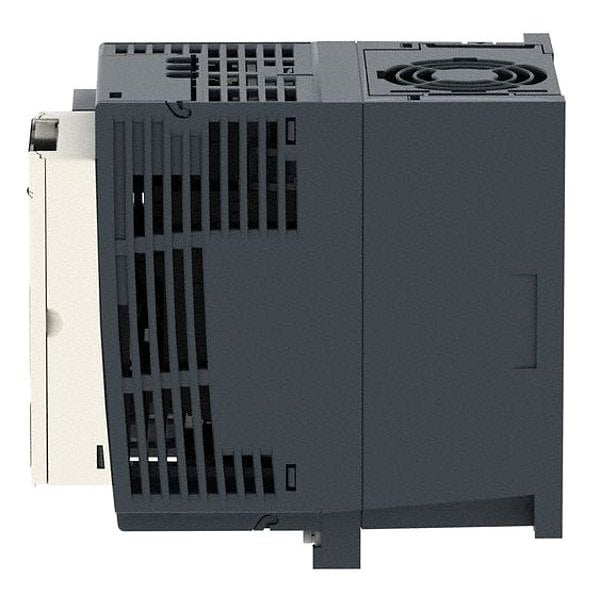

Schneider Electric Variable Frequency Drive, 1 HP, 115V, Altivar ATV12H075F1 - main

Variable Frequency Drive, 1 HP, 115V, Altivar

  • Mfr # ATV12H075F1

  • Zoro # G2937724

product price: $342.99
/ea
Free Shipping & Returns

Key Features

Max. HP
1 hp
Input Voltage
100 to 120V AC
Output Voltage
200 to 240V AC
Input Phase AC
Single
Enclosure
Open
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV12H075F1
Zoro #
G2937724
UPC #
785901642527
Country of Origin
Indonesia

Dimensions

Width
4.13 in
Depth
6.15 in
Height
5.59 in
Overall Height
5 1/2 in
Overall Depth
6 1/8 in
Overall Width
4 1/8 in

Details

Item
Variable Speed Drive
Max. HP
1 hp
Input Voltage
100 to 120V AC
Output Voltage
200 to 240V AC
Input Phase AC
Single
Enclosure
Open
Max. Output Amps
4.2 A
Output Phase AC
Three
With Bypass / No Bypass
No Bypass
With Line Contactor / No Line Contactor
No Line Contactor
Adjustable Acceleration Time
0 to 999.9 sec
Accepts Input Control Signal
Yes
Display Type
LED
Protection
Against Input Phase Loss in Three-Phase, Line Supply Overvoltage, Line Supply Undervoltage, Overcurrent Between Output Phases and Earth, Overheating Protection, Short-Circuit Between Motor phases, Thermal Motor Protection via the Drive by Continuous Calculation of I²t
Control Method
Keypad or Remote Keypad or Modbus
Start/Stop Control
Programmable
Adjustable Deceleration Time
0 to 999.9 sec
Dynamic Braking
No
Torque @ 1 Hz
120%
Output Frequency Range
0.5 to 400 Hz
For Use With
3-Phase Inverter Duty Motor
Standards
UL, C-tick, NOM, GOST, CSA
Displays
LED
Starting Torque
150% to 170%
Digital Readout
Yes
Control Type
Keypad, Modbus, Remote Keypad
Input Frequency
50/60 Hz
Key Pad Lockout
Yes
Brake Chopper Included
No
Input Type
Analog, Discrete
Input Voltage Range
100 to 120V AC
Application
Commercial Equipment Mixer, Commercial Equipment Other Application, Textile Ironing
Number of Inputs
(2) Analog; (4) Discrete
Torque Application
Constant Torque, Variable Torque
Style
Heat Sink
Number of Outputs
(1) Analog; (2) Discrete
Output Type
Analog, Discrete
Output Voltage Range
85V AC to 132V AC
Color
Black
Ethernet Port Included
No
Maximum Output Current
4.2 A
Series
Altivar 12
Maximum Output Power
1 hp
Enclosure Rating
NEMA 1

Description

Variable Speed Drive, Input Voltage 100 to 120V AC, Input Phase AC Single, Input Frequency 50/60 Hz, Maximum Output Power 1 hp, Maximum Output Current 4.2 A, Output Voltage 200 to 240V AC, Output Phase AC Three, Output Frequency Range 0.5 to 400 Hz, Enclosure Rating NEMA 1
