  11. Variable Frequency Drive, 1 HP, 460VAC

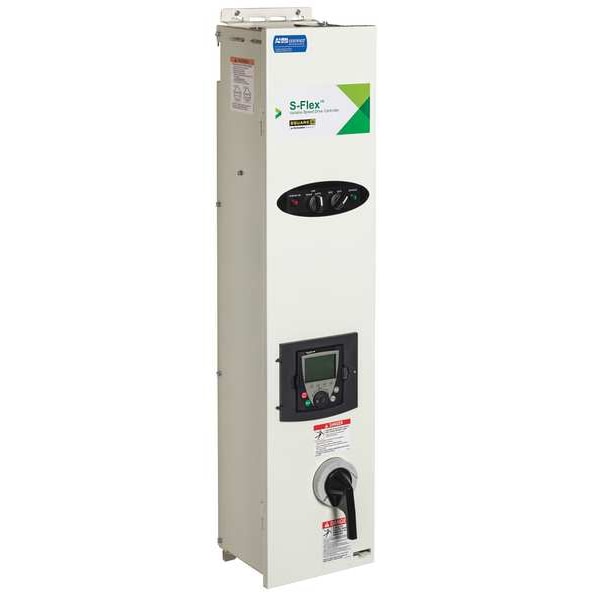

Schneider Electric Variable Frequency Drive, 1 HP, 460VAC SFD212CG4YB07D07 - main

Variable Frequency Drive, 1 HP, 460VAC

  • Mfr # SFD212CG4YB07D07

  • Zoro # G4493702

product price: $2,166.99
/ea
Free Shipping & Returns

Key Features

Depth
10.141 in
Accepts Input Control Signal
Remote Contact
Output Frequency Range
0.5 to 200 Hz
Torque @ 1 Hz
110%
Start/Stop Control
Programmable
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SFD212CG4YB07D07
Zoro #
G4493702
UPC #
785901004516
Country of Origin
Mexico

Dimensions

Depth
10.141 in
Height
40.375 in
Width
9.038 in
Overall Depth
10 1/8 in
Overall Width
9 1/8 in
Overall Height
40 3/8 in

Details

Accepts Input Control Signal
Remote Contact
Output Frequency Range
0.5 to 200 Hz
Torque @ 1 Hz
110%
Start/Stop Control
Programmable
Item
S-Flex Enclosed Drive
Control Method
Keypad, Remote
Displays
Integrated, LCD
Max. HP
1 hp
Input Frequency
50/60 Hz
Enclosure
Totally Enclosed
Starting Torque
110%
Adjustable Deceleration Time
0.1 to 999.9 sec
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Output Voltage
460V AC
Input Phase AC
Three
Max. Output Amps
2.1 A
Input Voltage
460V AC
With Bypass / No Bypass
With Bypass
Adjustable Acceleration Time
0.1 to 999.9 sec
Display Type
LCD
Output Phase AC
Three
Protection
Circuit Breaker
Dynamic Braking
No
With Line Contactor / No Line Contactor
With Line Contactor
Output Type
Analog, Discrete
Torque Application
Constant Torque, Variable Torque
Ethernet Port Included
No
Number of Outputs
(1) Analog
Series
S-Flex Enclosed Drive
Color
White
Control Type
Keypad, Remote
Maximum Output Current
2.1 A
Input Voltage Range
460V AC
Enclosure Rating
NEMA 1
Output Voltage Range
460V AC
Input Type
Analog, Discrete
Standards
UL Type 1, RoHS
Number of Inputs
(2) Analog
Brake Chopper Included
No
Application
Commercial Office Buildings, Residential High Rise and Mixed-Use Buildings, Schools and Campus Environments
Maximum Output Power
1 hp

Description

S-Flex Enclosed Drive, Input Voltage 460V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 1 hp, Maximum Output Current 2.1 A, Output Voltage 460V AC, Output Phase AC Three, Output Frequency Range 0.5 to 200 Hz, Enclosure Rating NEMA 1
