  11. Variable Frequency Drive, 125 hp, 480V AC

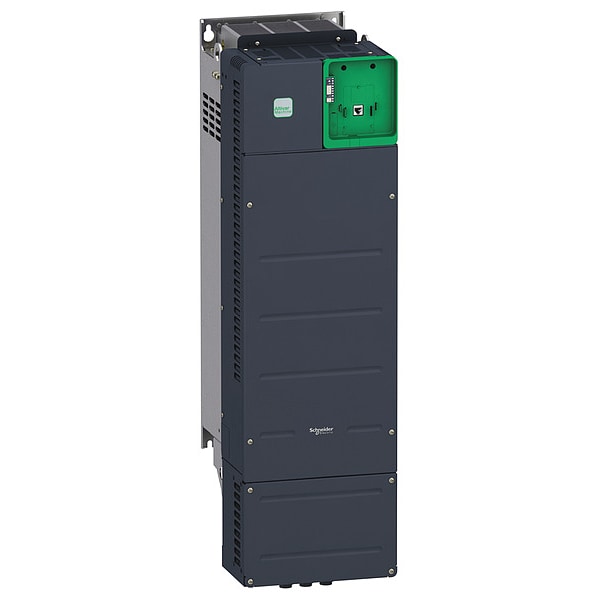

Schneider Electric Variable Frequency Drive, 125 hp, 480V AC ATV340D75N4E - main

Variable Frequency Drive, 125 hp, 480V AC

  • Mfr # ATV340D75N4E

  • Zoro # G0199537

product price: $11,064.99
/ea
Item requires special delivery charges. A $200.00 per item surcharge will be applied.

Key Features

With Line Contactor / No Line Contactor
With Line Contactor
Standards
EN/IEC 61800-3, Environment 1 Category C2 EN/IEC 61800-3, Environment 2 Category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3, IEC 61508, IEC 13849-1, UL 618000-5-1
Dynamic Braking
No
Input Frequency
50/60 Hz
Control Method
Variable Torque Standard, Optimized Torque Mode, Constant Torque Standard
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV340D75N4E
Zoro #
G0199537
UPC #
785901759249
Country of Origin
China

Dimensions

Width
10.67 in
Height
35.75 in
Depth
12.17 in
Overall Depth
12 1/8 in
Overall Width
10 5/8 in
Overall Height
35 3/4 in

Details

With Line Contactor / No Line Contactor
With Line Contactor
Standards
EN/IEC 61800-3, Environment 1 Category C2 EN/IEC 61800-3, Environment 2 Category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3, IEC 61508, IEC 13849-1, UL 618000-5-1
Dynamic Braking
No
Input Frequency
50/60 Hz
Control Method
Variable Torque Standard, Optimized Torque Mode, Constant Torque Standard
Display Type
None
For Use With
Three-phase supply voltage: 380...480 V 50/60 Hz
Protection
Break on the control circuit, DC Bus overvoltage, Exceeding limit speed, Input supply loss, Line supply overvoltage, Line supply undervoltage, Motor phase loss, Output overcurrent between motor phase and earth, Output overcurrent between motor phases, Overcurrent, Overheating, Safe torque off, Short-circuit between motor phase and earth, Short-circuit between motor phases, Thermal protection
Max. HP
100 hp, 125 hp
Input Voltage
480V AC
Max. Output Amps
207.6 A, 217.5 A
Output Voltage
480V AC
Item
Variable Speed Drive
Input Phase AC
Three
Digital Readout
No
Output Voltage Range
323V AC to 528V AC
Brake Chopper Included
Yes
Adjustable Acceleration Time
0.01 to 9,999 sec
Displays
None
Number of Inputs
(2) Analog; (1) Discrete; (3) Relay
Style
Ethernet
With Bypass / No Bypass
No Bypass
Maximum Output Current
173 A
Maximum Output Power
125 hp
Output Phase AC
Three
Enclosure Rating
NEMA 1
Key Pad Lockout
None
Torque Application
Constant Torque, Variable Torque
Output Frequency Range
0.1 to 599 Hz
Input Voltage Range
380 to 480V AC
Number of Outputs
(3) Analog; (8) Discrete
Application
Industrial Process and Utilities
Adjustable Deceleration Time
0.01 to 9,999 sec
Series
Altivar Machine ATV340
Start/Stop Control
Programmable
Output Type
Analog, Discrete
Color
Black
Ethernet Port Included
Yes
Input Type
Analog, Discrete
Enclosure
Open

Description

Variable Speed Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 125 hp, Maximum Output Current 173 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0.1 to 599 Hz, Enclosure Rating NEMA 1
